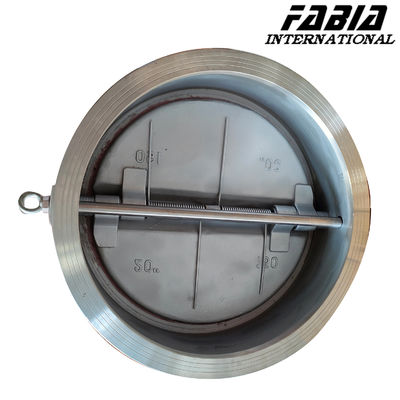

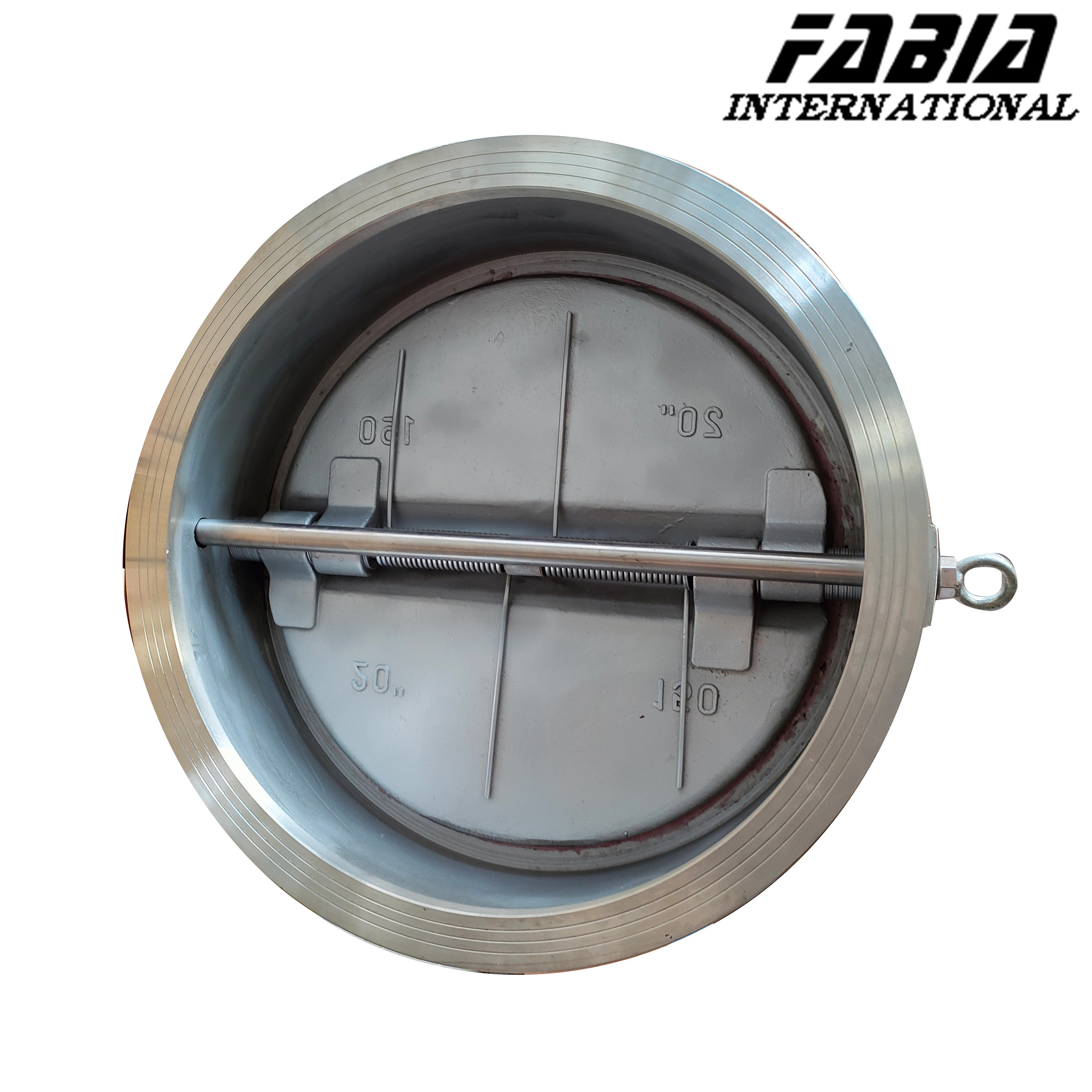

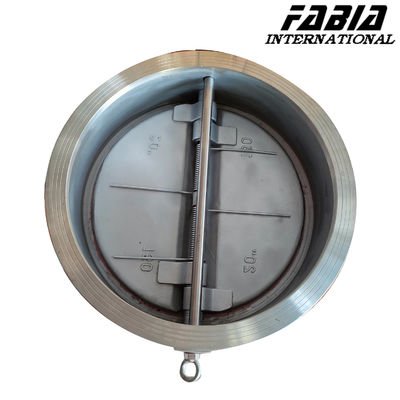

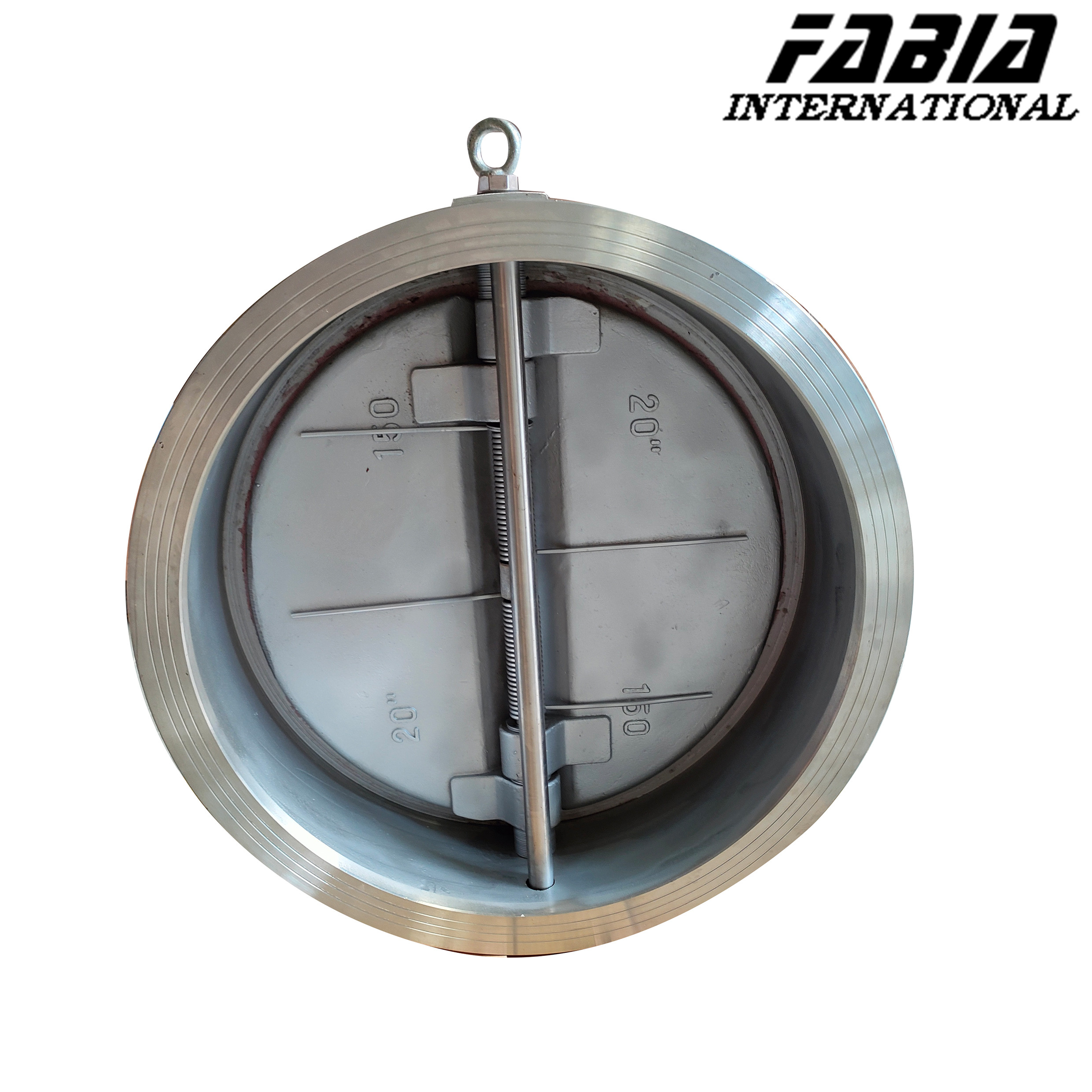

Ventilation Duct Flapper Valve Gas Damper Valve Ss

  • Ventilation Duct Flapper Valve Gas Damper Valve Ss
  • Ventilation Duct Flapper Valve Gas Damper Valve Ss
  • Ventilation Duct Flapper Valve Gas Damper Valve Ss
  • Ventilation Duct Flapper Valve Gas Damper Valve Ss
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Duct Flapper Valve Stainless Steel Actuator Pneumatic Actuator, Electric Actuator
Connection Butt Clamp Material Stainless Steel
Type Flapper Valve Pressure 500 Bar
Temperature -40°C~+1000°C Application Petroleum, Chemical, Power, Etc.
High Light

gas damper valve

,

Ventilation Duct Flapper Valve

,

ss damper valve
Leave a Message
Product Description

FABIA Duct flapper valve Stainless Steel Flapper Valve



1. Description:



Baffle valve is a common industrial pipe controller, widely used in petrochemical, chemical, food and other industries.



Realizes the switching control of the pipeline by moving the baffle up and down, and has the advantages of small volume, simple structure and convenient operation.



2. Specification:



FABIA Valve Parameter List
Valve type: Duct flapper valve Stainless Steel Flapper Valve
Size: 1/8 inch ～ 18 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt /Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-DB..........



3. Features:



  • Structural characteristics of flapper valve Baffle valve is mainly composed of flange, valve body, baffle, bearing and so on.
  • Among them, the baffle is the core component of the baffle valve, and the up and down movement of its position determines the opening and closing state of the pipeline. At the same time, the baffle valve is also provided with a sealing gasket and a sealing surface to ensure the normal operation of the pipeline.
  • Use of flapper valves Baffle valves are used to control the flow and pressure of various fluids, and are widely used in petrochemical, chemical, electric power, water treatment and other fields.
  • In the pipeline with high temperature, high pressure and corrosive media, the baffle valve can play its superior performance to ensure the safe and stable operation of the pipeline.
  • Maintenance of flapper valve In the long-term use of flapper valves, regular maintenance and maintenance are required.
  • Need to check the sealing performance of the flapper valve to ensure that the sealing gasket and sealing surface are in normal condition. Bearings of the flapper valve should be lubricated to reduce wear and friction.
  • In addition, during the use of the baffle valve, it is necessary to pay attention to the operation specifications to avoid equipment damage or personnel injury due to improper operation.

Ventilation Duct Flapper Valve Gas Damper Valve Ss 0

Ventilation Duct Flapper Valve Gas Damper Valve Ss 1
