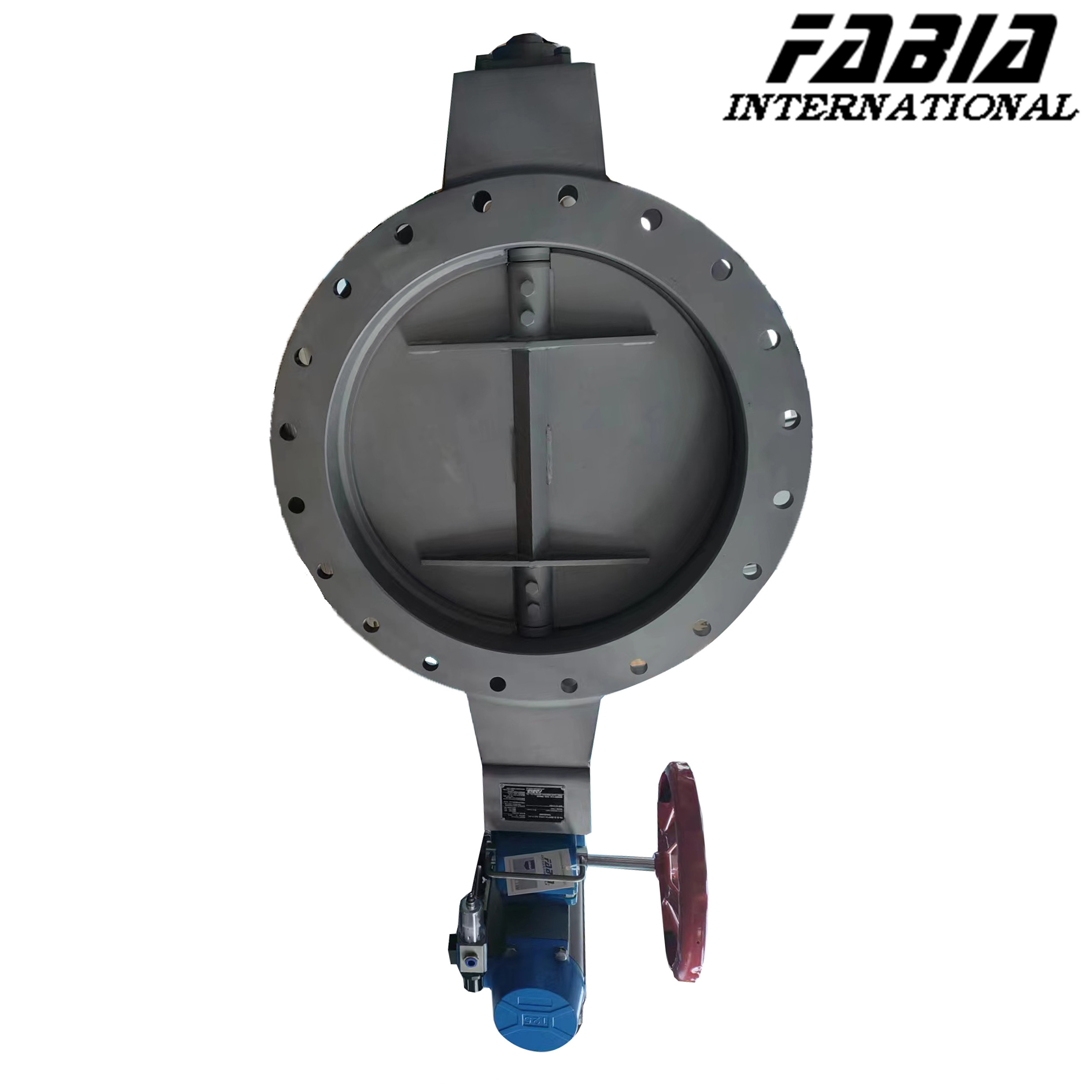

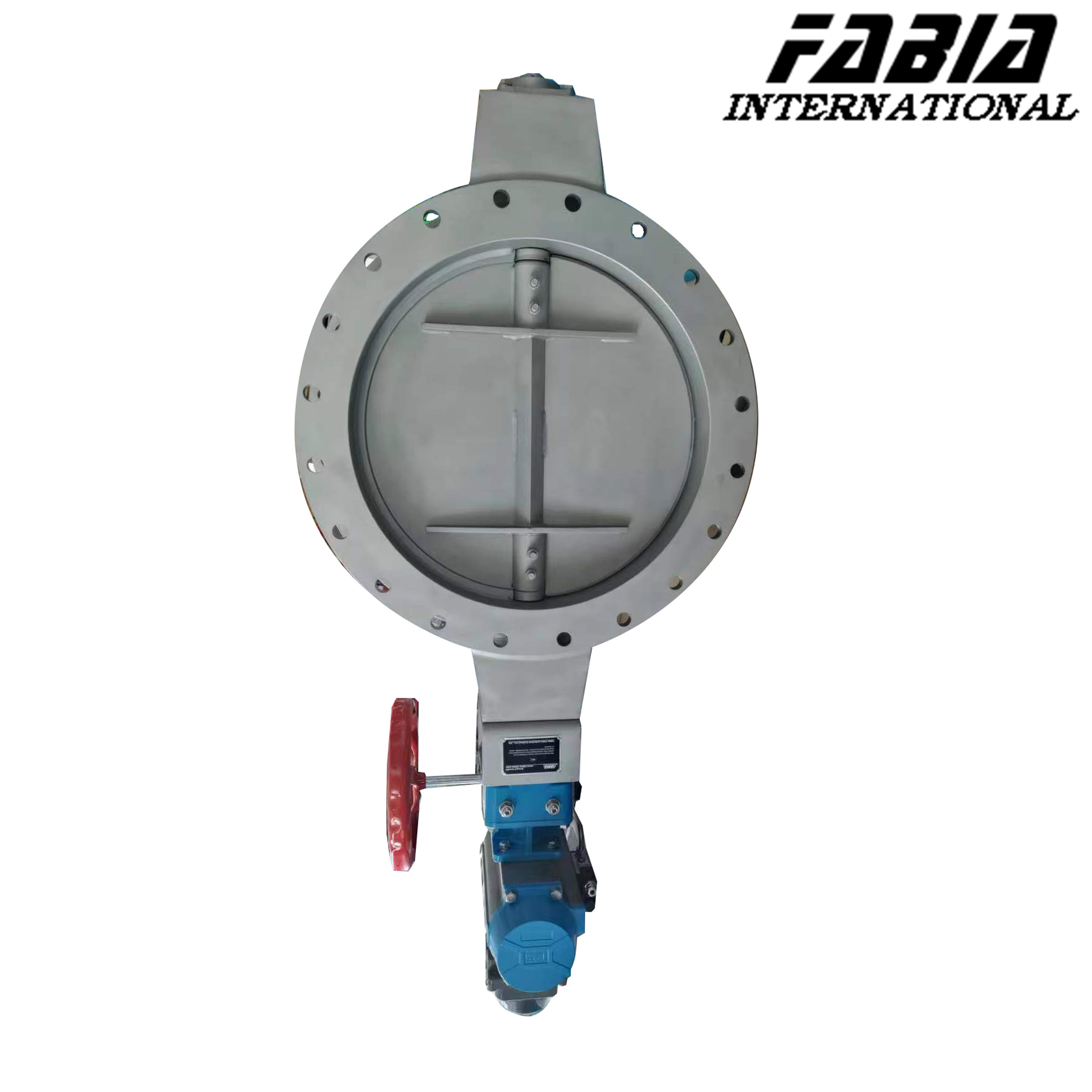

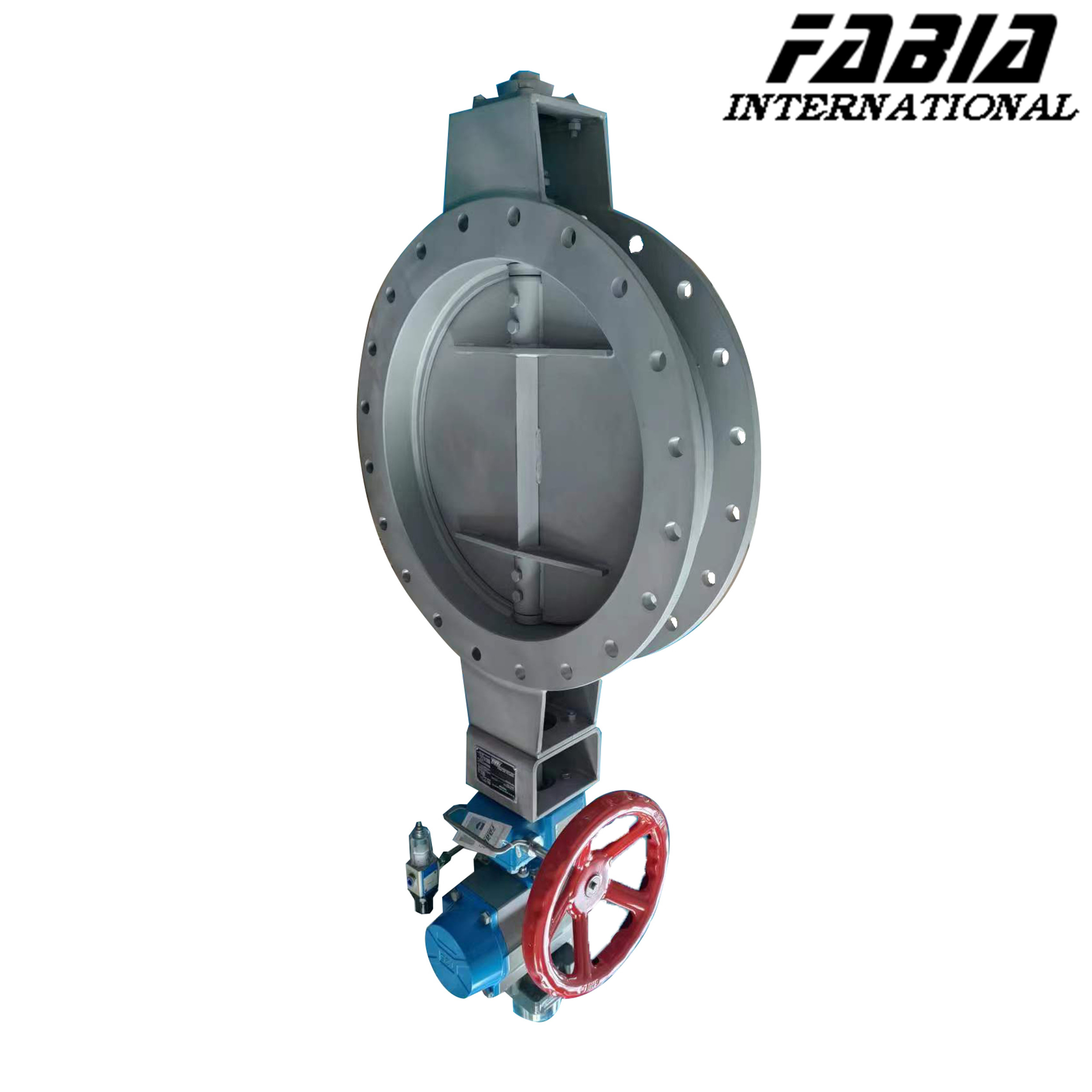

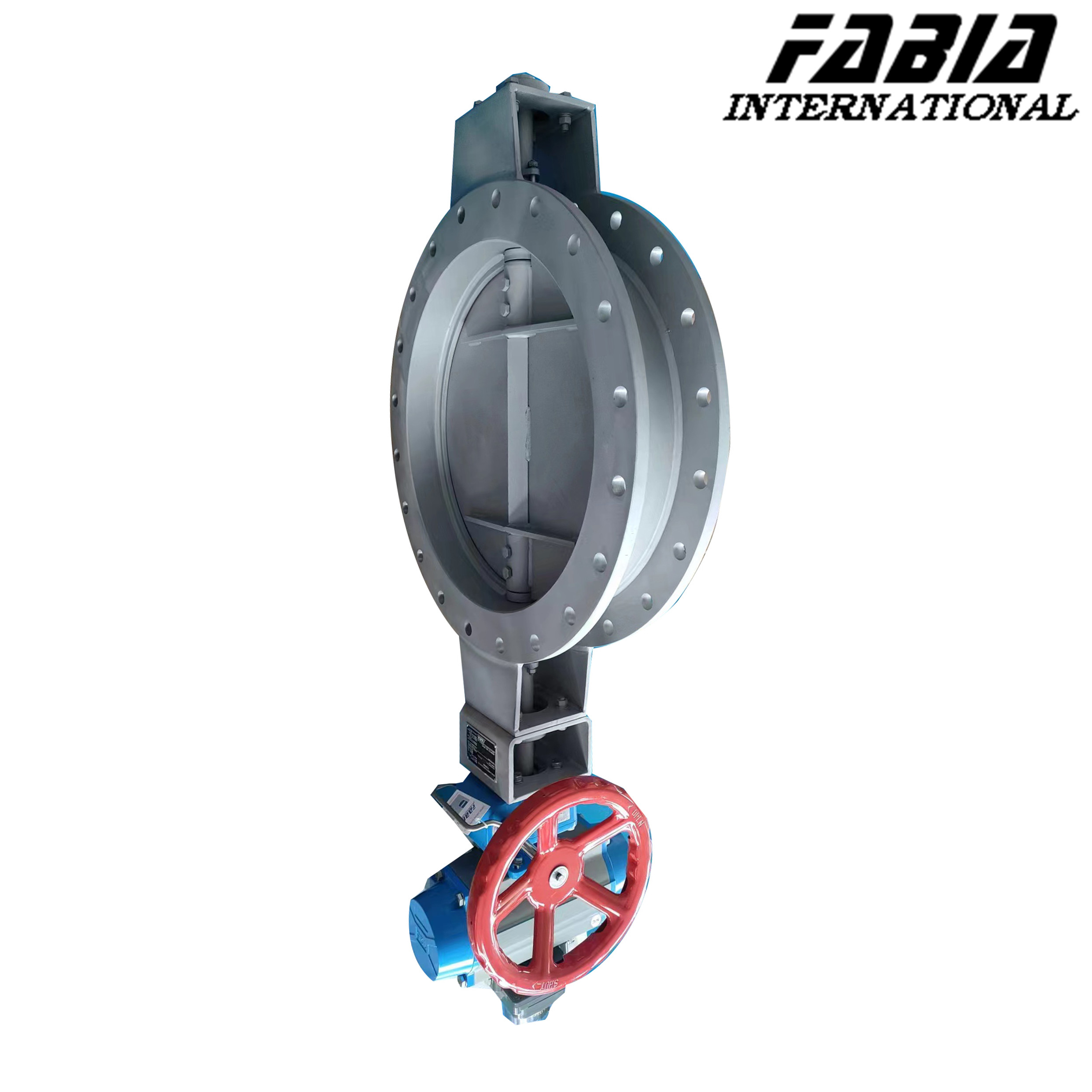

Stainless Steel Flanged Pneumatic Valve High Performance Industrial Butterfly Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 48 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Ventilation Butterfly Valve | Material | Stainless Steel |
|---|---|---|---|
| Valve Operation | Pneumatic | Valve Connection | Flanged |
| Valve Standard | API/DIN/JIS/GB | Valve Pressure Rating | 150-300 Psi |
| Seal Material | EPDM | Valve Temperature | -40-260℃ |
| Valve Feature | High Performance | Valve Size | 1-48 Inch |
| High Light | EPDM Seal Industrial Pneumatic Valve,Stainless Steel Flanged Pneumatic Butterfly Valve,Flanged Industrial Butterfly Valve |
||
Product Description
Stainless Steel Flanged Pneumatic Valve High Performance Industrial Butterfly Valve
1. Description:
Pneumatic flange type ventilated butterfly valve is installed in the diameter direction of the pipe. It has the advantages of simple structure, small volume, light weight and convenient installation size. The main disadvantage is poor sealing (opening and closing torque is large), and its connection mode is flange type.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Stainless Steel Flanged Pneumatic Valve High Performance Industrial Butterfly Valve | |
| Size: | 1/8 inch ～ 18 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt clamp/flange connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN10,0～100Mpa | |
| Temperature: | -40℃～450℃ | |
| Model: | FB-DB.......... | |
3. Features
- The purpose of the ventilation butterfly valve: used in the sulfuric acid industry gas pipeline or equipment for regulating flow and load cut-off body use.
- The structure principle of the ventilation disc valve: by the cock body, spring, actuator composed. Under the drive of the electric control device, the 90° rotation action is completed and the role of opening and closing is achieved. The pneumatic valve uses the double acting cylinder as the power source, and realizes the contactless gas control operation through the electromagnetic clutch.
- The characteristics of the ventilation disc valve: This product is mainly used in industrial pipelines can be installed at any Angle and telescopic circular diameter of different media valve switching and control. It is suitable for the discharge system of acid corrosive gases in petroleum, chemical, metallurgy and other industries and the use requirements of other special working conditions.
