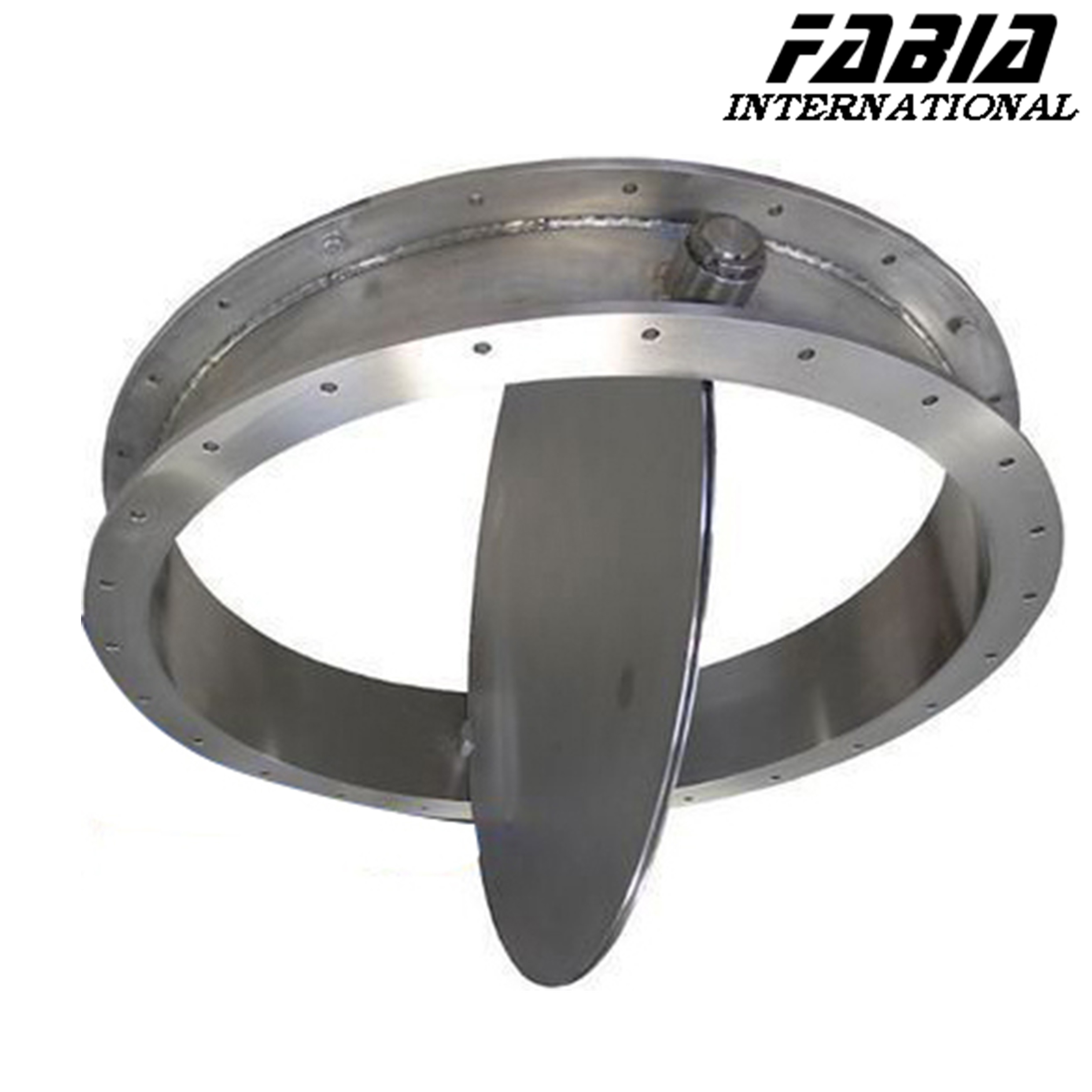

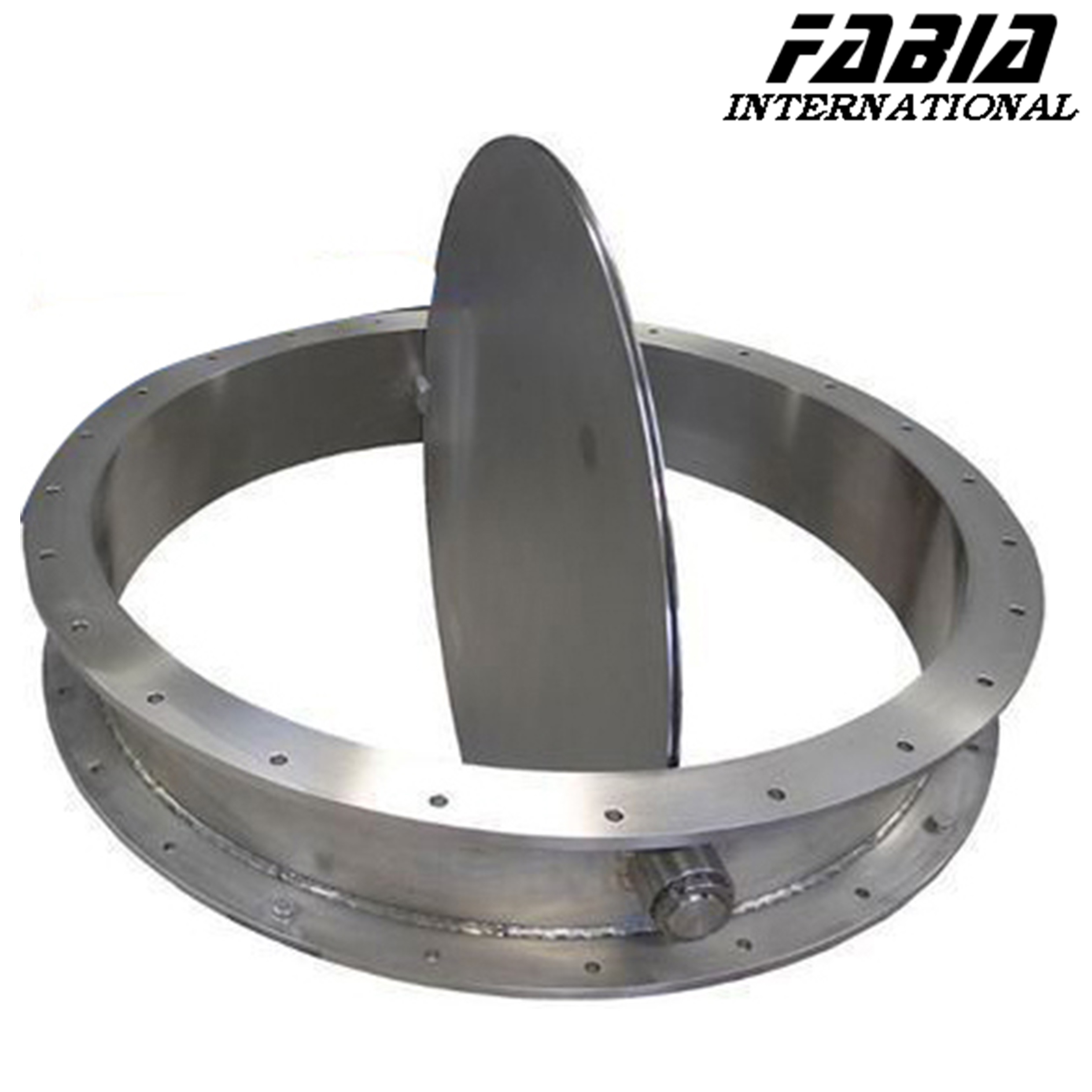

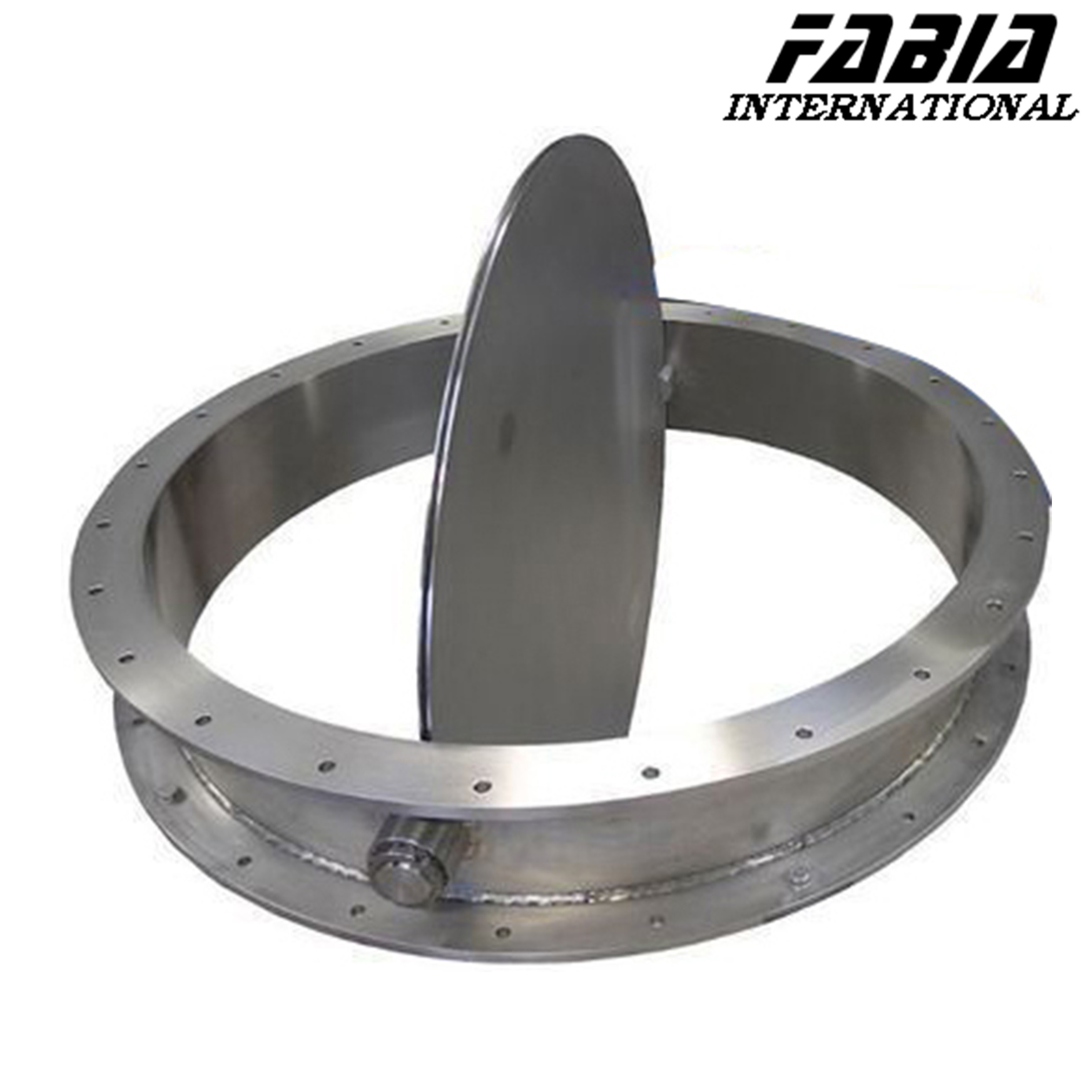

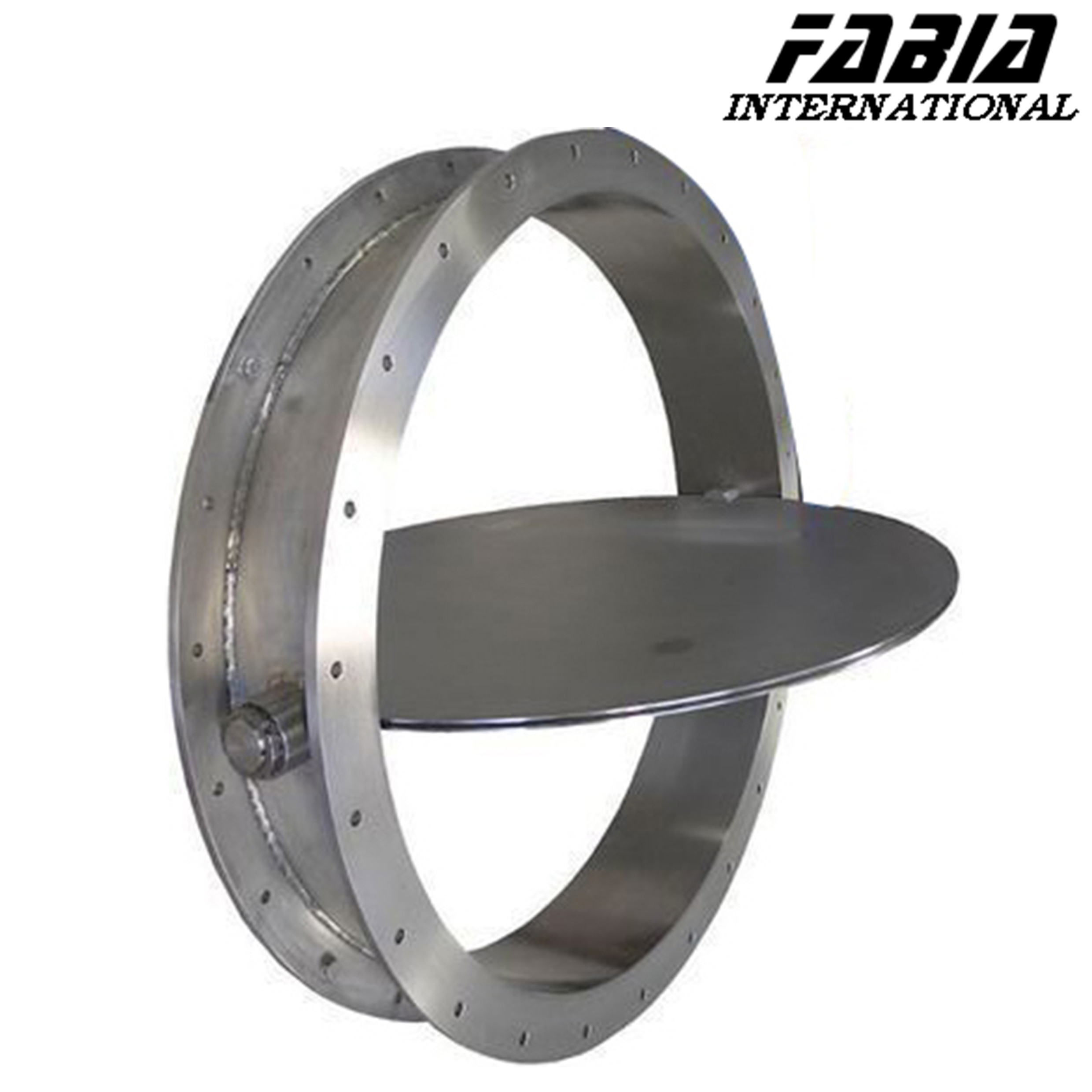

200mm 150mm 110mm Stainless Steel Flanged Ventilation Butterfly Valve For Water Line

  • 200mm 150mm 110mm Stainless Steel Flanged Ventilation Butterfly Valve For Water Line
  • 200mm 150mm 110mm Stainless Steel Flanged Ventilation Butterfly Valve For Water Line
  • 200mm 150mm 110mm Stainless Steel Flanged Ventilation Butterfly Valve For Water Line
  • 200mm 150mm 110mm Stainless Steel Flanged Ventilation Butterfly Valve For Water Line
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Flanged Ventilated Butterfly Valve Valve Type Ventilated Butterfly Valve
Application Ventilation Actuator Type Manual/Electric/Pneumatic
Connection Type Flange Flow Characteristics Linear/Equal Percentage
Flow Direction Bidirectional/Unidirectional Pressure Rating 150-600 PSI
Seal Material EPDM/PTFE Temperature Range -20℃~+450℃
Valve Body One-piece Valve Material Stainless Steel
Valve Size 2-48 Inch
High Light

110mm butterfly valve

,

150mm butterfly valve

,

200mm butterfly valve
Leave a Message
Product Description

 FABIA Stainless steel flanged ventilated butterfly valve



1. Description:



Characteristics of industrial special butterfly valve can withstand high temperature, the applicable pressure range is also high, the nominal diameter of the valve is large, the valve body is made of carbon steel, and the sealing ring of the valve plate is made of metal ring instead of rubber ring.



Large high temperature butterfly valve is made of steel plate welding, mainly used in high temperature medium smoke duct and gas pipeline.



2. Specification:


FABIA Valve Parameter List
Valve type: Stainless steel flanged ventilated butterfly valve
Size: 1/8 inch ～ 18 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt clamp/flange connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN10,0～100Mpa
Temperature: -40℃～450℃
Model: FB-DB..........



3. Features:

  •  Easy to open and close, labor-saving, small fluid resistance, can be often operated.
  •  Simple structure, small size, light weight.
  •  Mud can be transported, and the liquid accumulation in the pipe mouth is minimal.
  •  Under low pressure, good sealing can be achieved.
  •  Good adjustment performance.
