Flanged Ventilation Butterfly Valve Stainless Steel 1 1 2 Inch 14 Inch
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Flanged Ventilation Butterfly Valve | Valve Type | Ventilation Butterfly Valve |
|---|---|---|---|
| Valve Disc Material | Stainless Steel | Valve Application | Ventilation |
| Valve Connection | Flange | Valve Operation | Manual/Electric/Pneumatic |
| Valve Body Material | Stainless Steel | Valve Pressure | PN1.0-PN16 |
| Valve Seat Material | PTFE | Valve Size | DN50-DN600 |
| Valve Standard | API/DIN/JIS/GB | Valve Temperature | -20℃-150℃ |
| High Light | butterfly valve 14 inch,butterfly valve 1 1 2 inch,ball valve butterfly |
||
Product Description

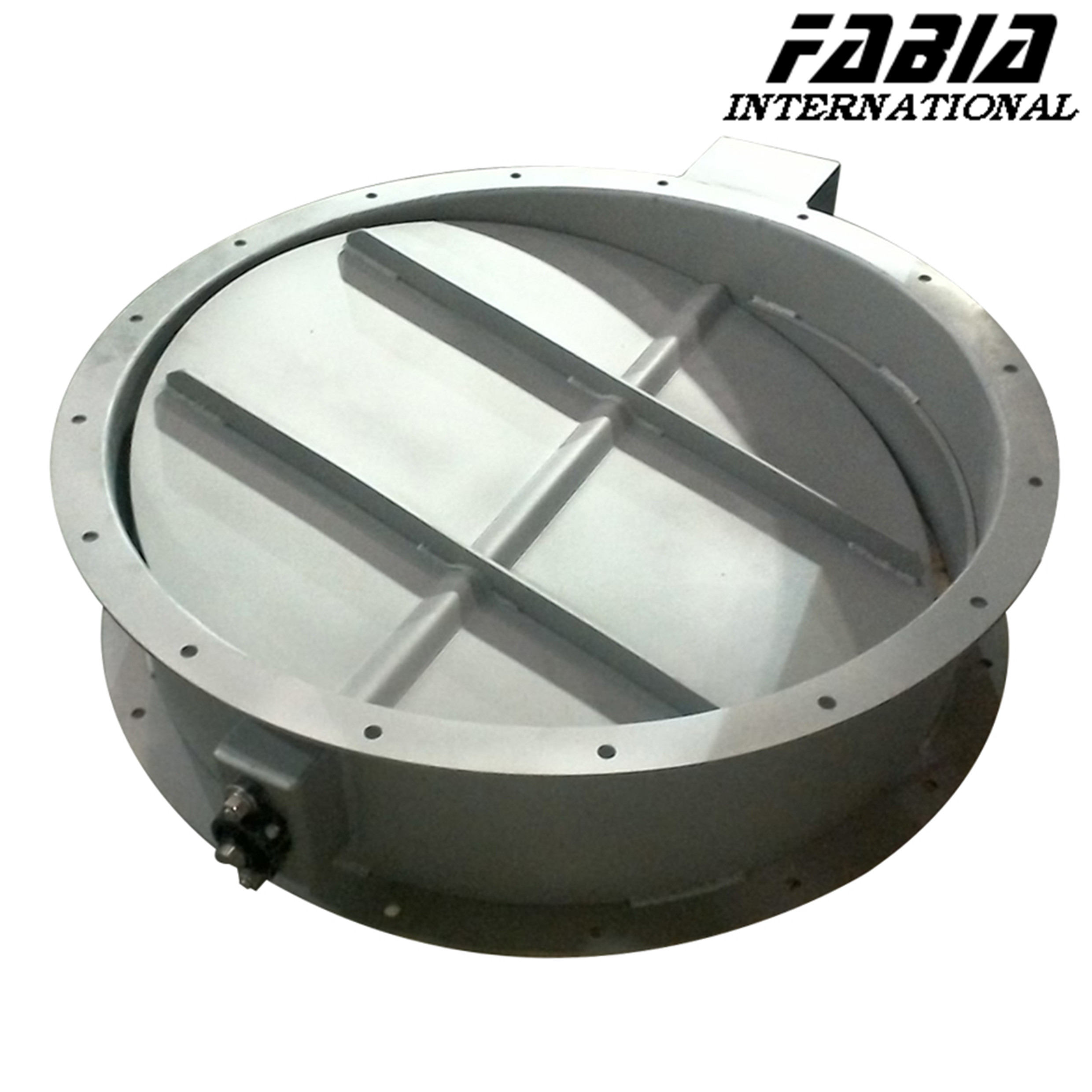

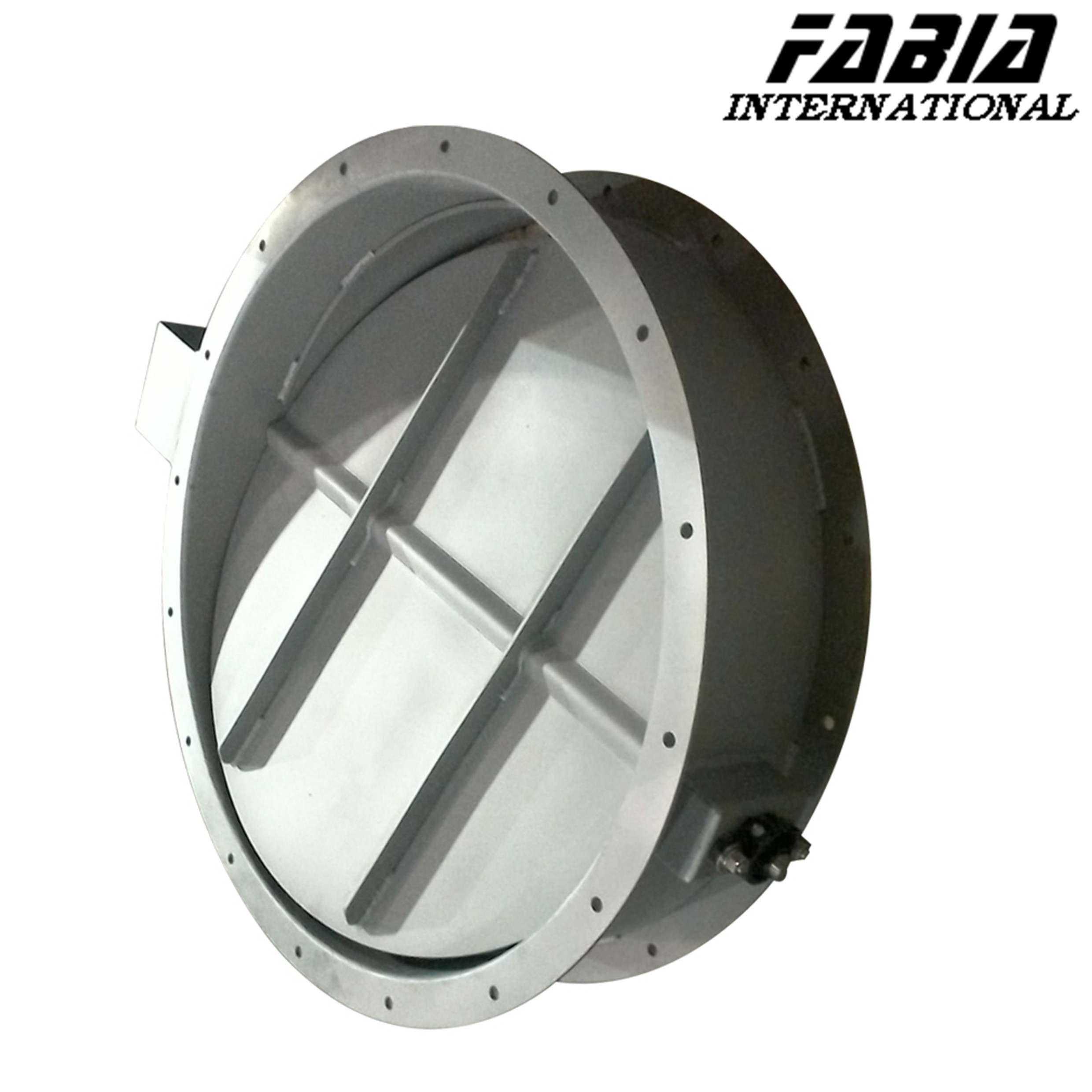

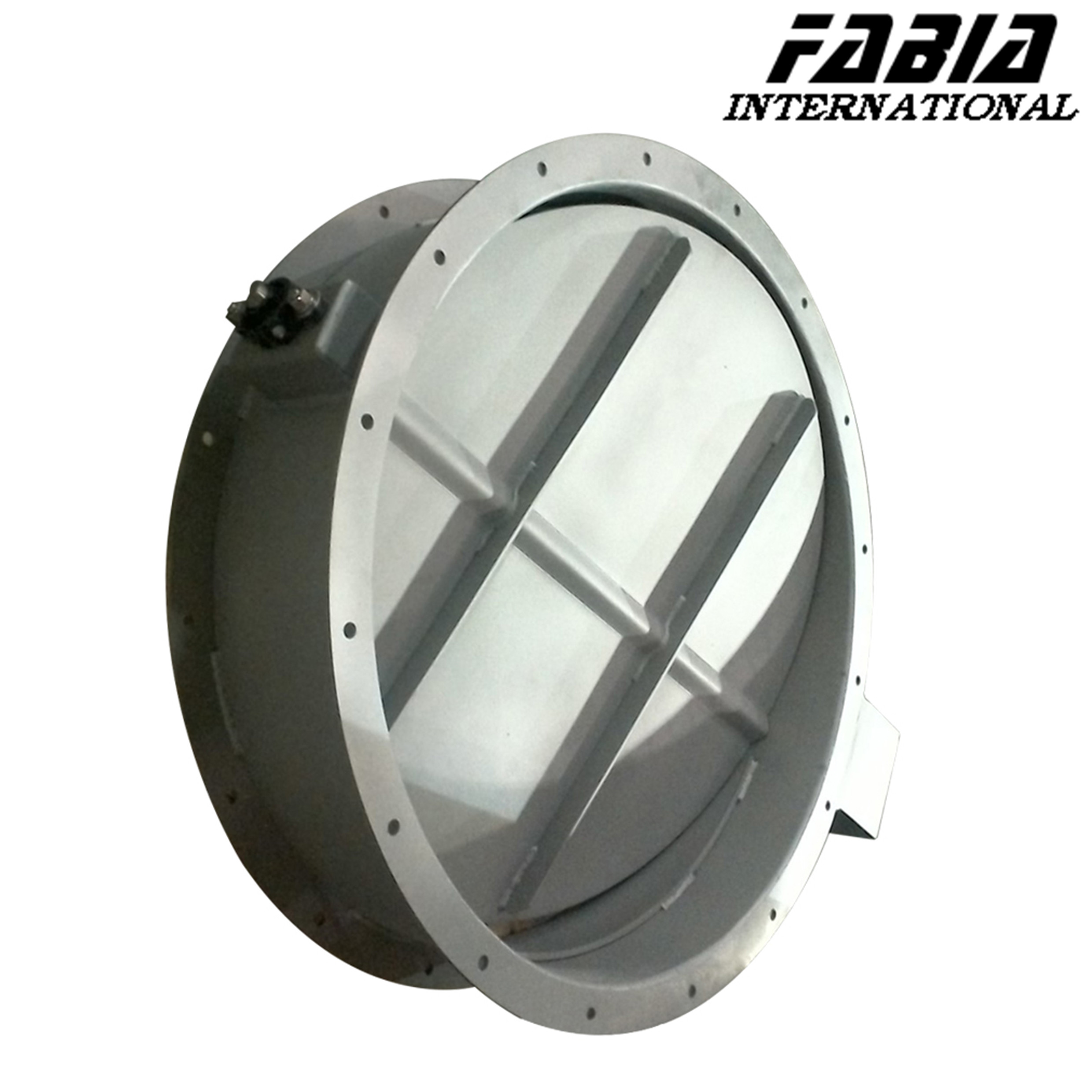

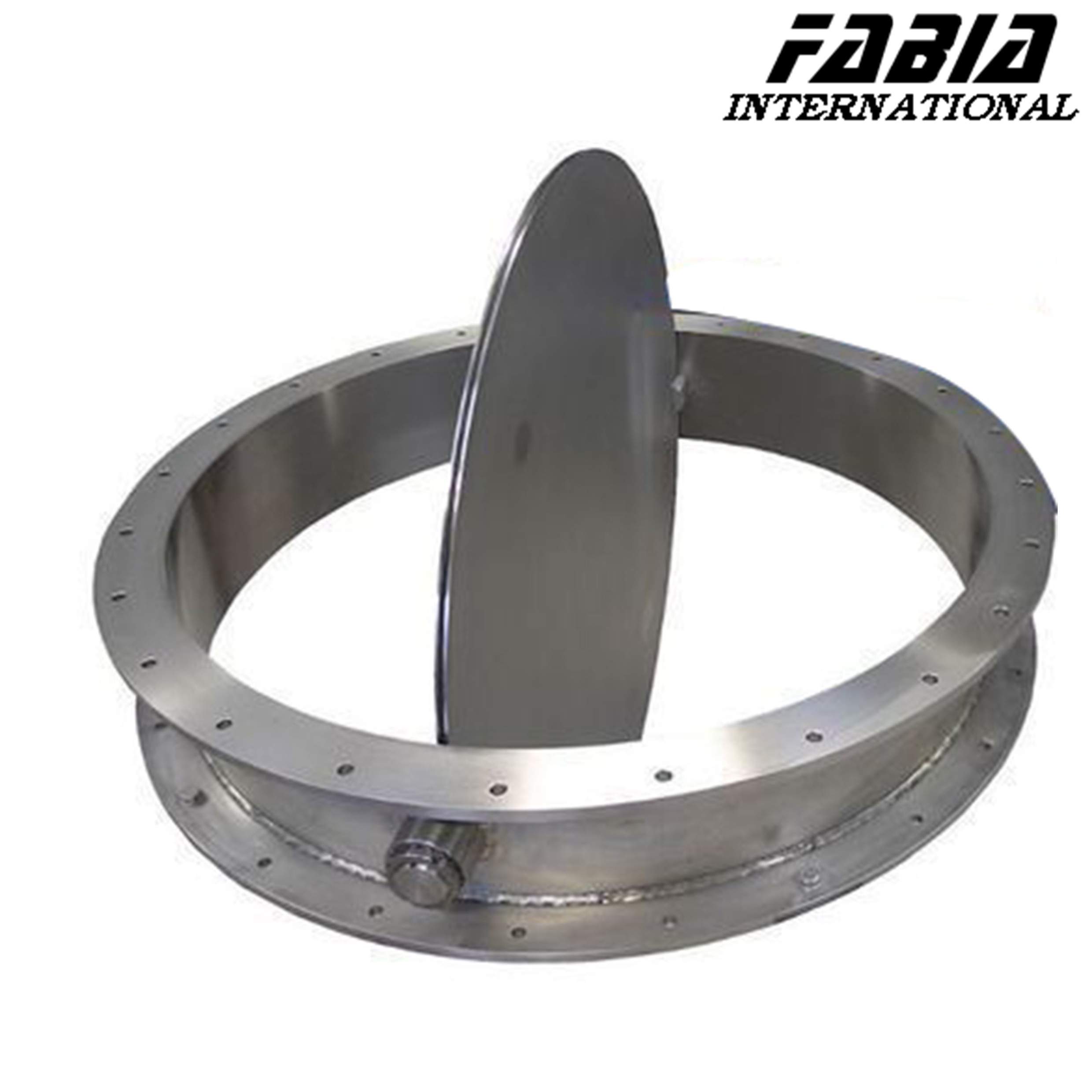

FABIA Flanged Ventilation Butterfly Valve Stainless Steel
1. Description:
Ventilation butterfly valve is used in the cold air or hot air gas pipelines containing dust in the ventilation and environmental protection projects in the chemical industry, building materials, power stations, glass and other industries, as a pipeline control device for regulating the flow rate or cutting off the gas medium.
Type of valve should generally be installed horizontally in the pipeline.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Flanged ventilation butterfly valve | |
| Size: | 1/8 inch ～ 18 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt /Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN10,0～100Mpa | |
| Temperature: | -40℃～450℃ | |
| Model: | FB-DB.......... | |
3. Features:
- Designed and manufactured by using the new structure form of welding between the middle line type butterfly plate and the short structure steel plate.
- Advantages of compact structure, light weight, easy installation, small flow resistance, large circulation, avoiding the influence of high temperature expansion and light operation.
- No connecting rod, bolts, etc., reliable work, long service life.
- Can be installed in multiple stations, not affected by the flow of media.
