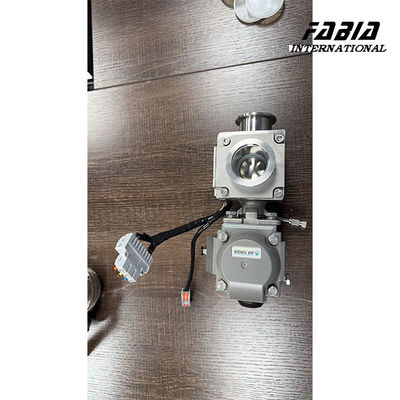

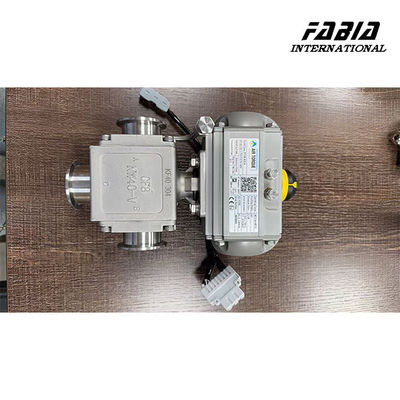

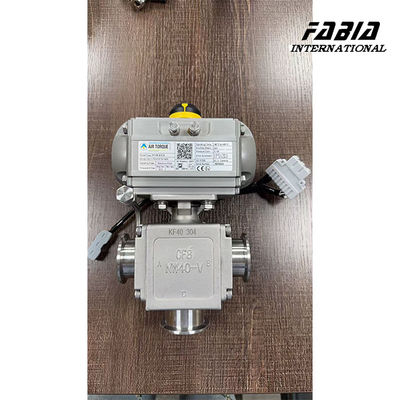

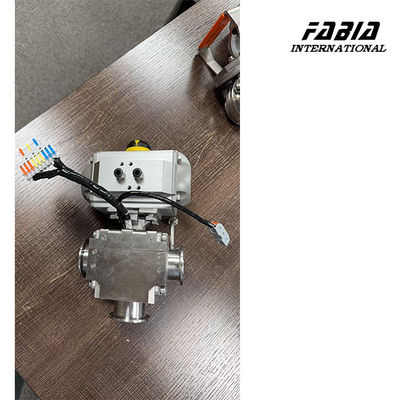

KF40 SS316 Electric Heat Tracing Pneumatic Square Three-way Ball Valve L Type

  • KF40 SS316 Electric Heat Tracing Pneumatic Square Three-way Ball Valve L Type
  • KF40 SS316 Electric Heat Tracing Pneumatic Square Three-way Ball Valve L Type
  • KF40 SS316 Electric Heat Tracing Pneumatic Square Three-way Ball Valve L Type
  • KF40 SS316 Electric Heat Tracing Pneumatic Square Three-way Ball Valve L Type
  • KF40 SS316 Electric Heat Tracing Pneumatic Square Three-way Ball Valve L Type
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Pressure Three Way Ball Valve /L Type Name High Pressure Ball Valve
Trim Material Stainless Steel Actuator Electric
Body Material Stainless Steel Connection Type Flange
Operating Temperature -20 To 300°F Fire Safe Design Yes
Pressure Rating 1000 To 6000 Psi Seat Material PTFE, PEEK
Size 1/2 To 8 Inches Port Type Full Port, Standard Port
Leave a Message
Product Description

KF40 SS316 Electric Heat Tracing Pneumatic Square Three-way Ball Valve L Type


1. Description:


Electric heat tracing pneumatic square three-way ball valve is a type of three-way ball valve that integrates an electric heat tracing system and a pneumatic actuator. It is suitable for pipeline systems that require anti freezing insulation or maintenance of medium temperature


2. Specification:


FABIA Valve Parameter List
Valve type: Electric heat tracing pneumatic square Three Way Ball Valve /L Type
Size: DN15 ～ DN300
Material: SS316 WCB
Connection type: Welded connection/flange connection/thread connection/KF connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Electric heat tracing type: 65℃
Model: FB-Q..........


3. Features:


  • Three way structure (T-shaped/L-shaped): realizes medium diversion, merging, or flow direction switching.
  • Pneumatic drive: Control valve opening and closing through compressed air, with fast response and suitable for automation control.
  • Electric heat tracing system: The valve body or pipeline is wrapped with an electric heat tracing strip to prevent low-temperature freezing or maintain process temperature.
  • Anti freezing and anti condensation: Electric tracing ensures that the valve operates normally in low-temperature environments (such as winter in the north and cold storage), avoiding medium freezing.
  • Quick response: Pneumatic actuators have fast opening and closing speeds (usually 1-3 seconds), suitable for frequent switching conditions.
  • Good sealing performance: Soft seal (PTFE) or metal seal, leakage level up to ANSI VI.
  • Automation integration: Can be connected to DCS/PLC systems to achieve remote control and temperature linkage.

KF40 SS316 Electric Heat Tracing Pneumatic Square Three-way Ball Valve L Type 0

KF40 SS316 Electric Heat Tracing Pneumatic Square Three-way Ball Valve L Type 1
