Stainless Steel Spring Type Safety Valve Full Open Natural Gas Relief Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Sanitary Quick Installation Ball Valve | Valve Operation | Manual |
|---|---|---|---|
| Valve Type | Special Purpose Valves | Material | Stainless Steel |
| Actuator Type | Manual | Size | 1/4-36 |
| Pressure Rating | 1000 PSI | Temperature Rating | 200°F |
Product Description

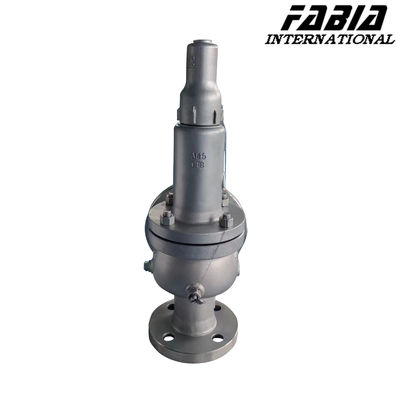

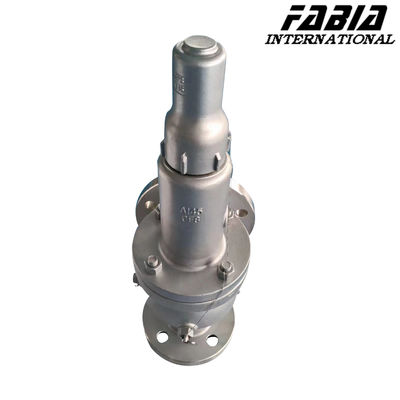

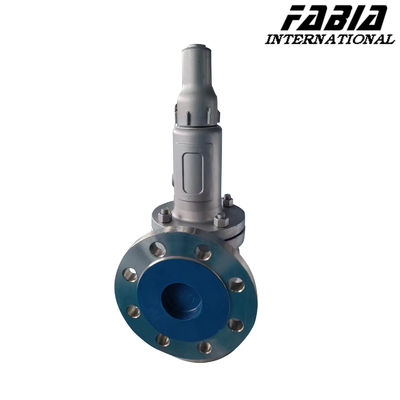

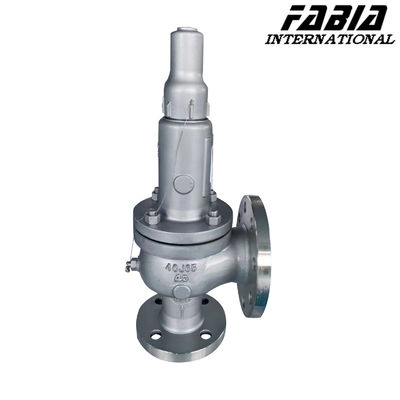

Stainless Steel Spring Type Safety Valve Full Open Natural Gas Relief Valve
1. Description:
Spring type safety valve adjusts the pressure of the valve spring through the elastic deformation of the valve spring.
So as to control the opening and closing of the valve.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Stainless Steel Spring Type Safety Valve Full Open Natural Gas Relief Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN16,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Simple structure, low manufacturing cost.
- Fast opening speed, short response time.
- Sanitary ball valve can prevent static electricity.
- Long life, easy maintenance.
- It is widely used in petrochemical, coal, energy and other industries.
- Wide range of pressure, spring type safety valve can be applied to liquid, gas, steam and other media pressure protection.
