Customizable Damper Valve For Specific Industrial Requirements
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Duct Flapper Valve Carbon Steel | Valve Control | Manual |
|---|---|---|---|
| Valve Body | Carbon Steel | Butterfly Valve | Flange |
| Connection | Clamp | Pressure | 500 Bar |
| Temperature | -40°C~+1000°C | Port Size | 1/2-48 |
| High Light | Specific Industrial Requirements Damper Valve,Customizable Damper Valve |
||
Product Description

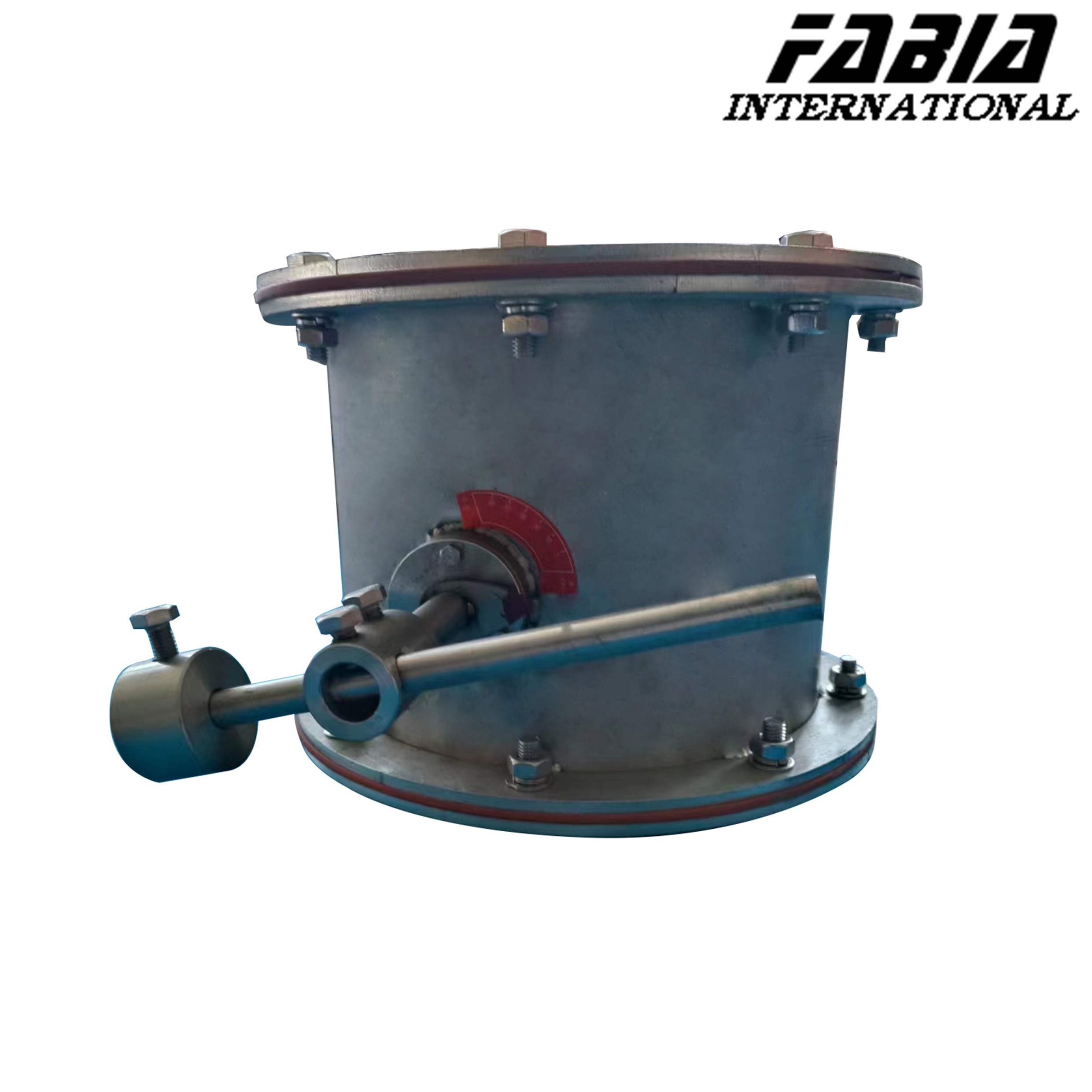

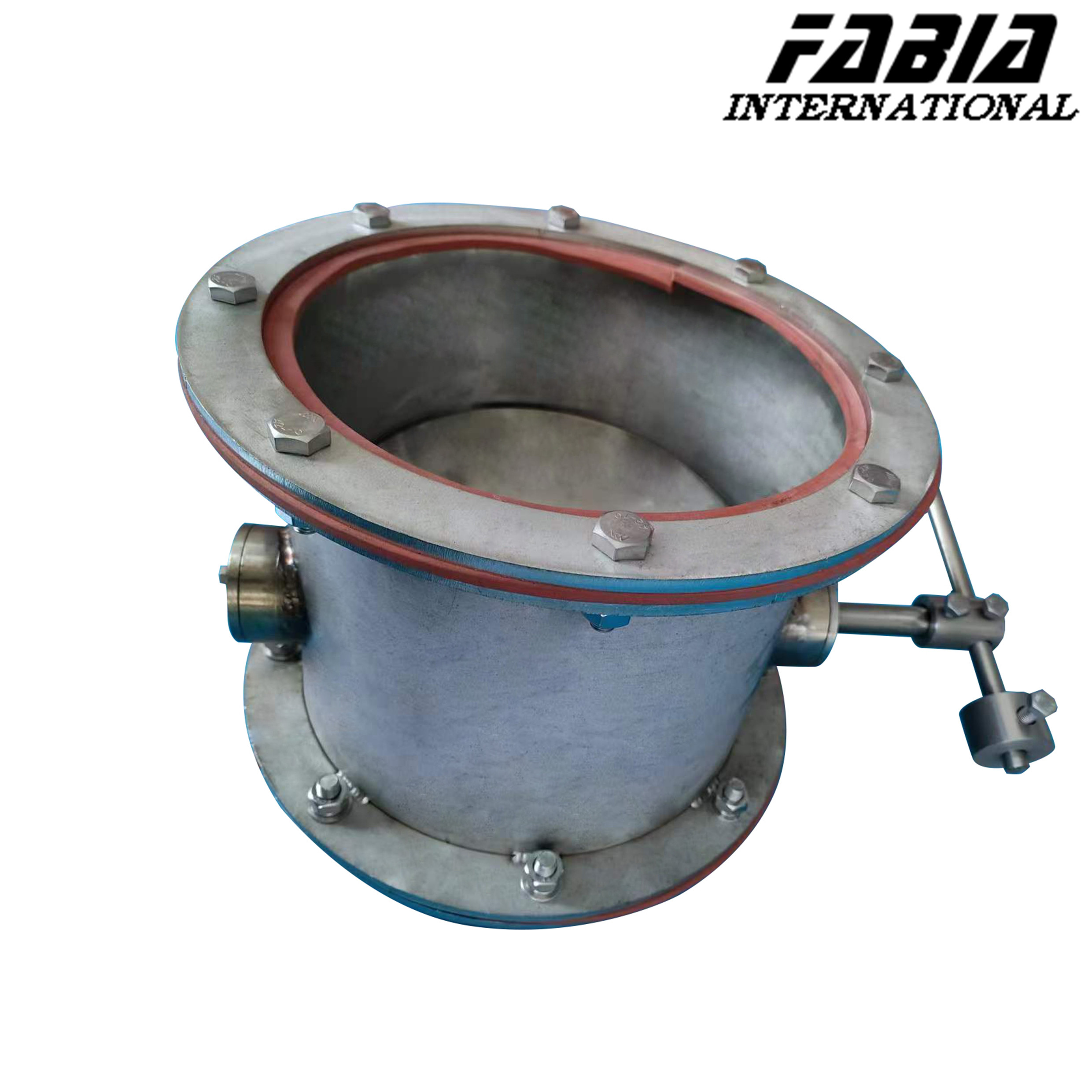

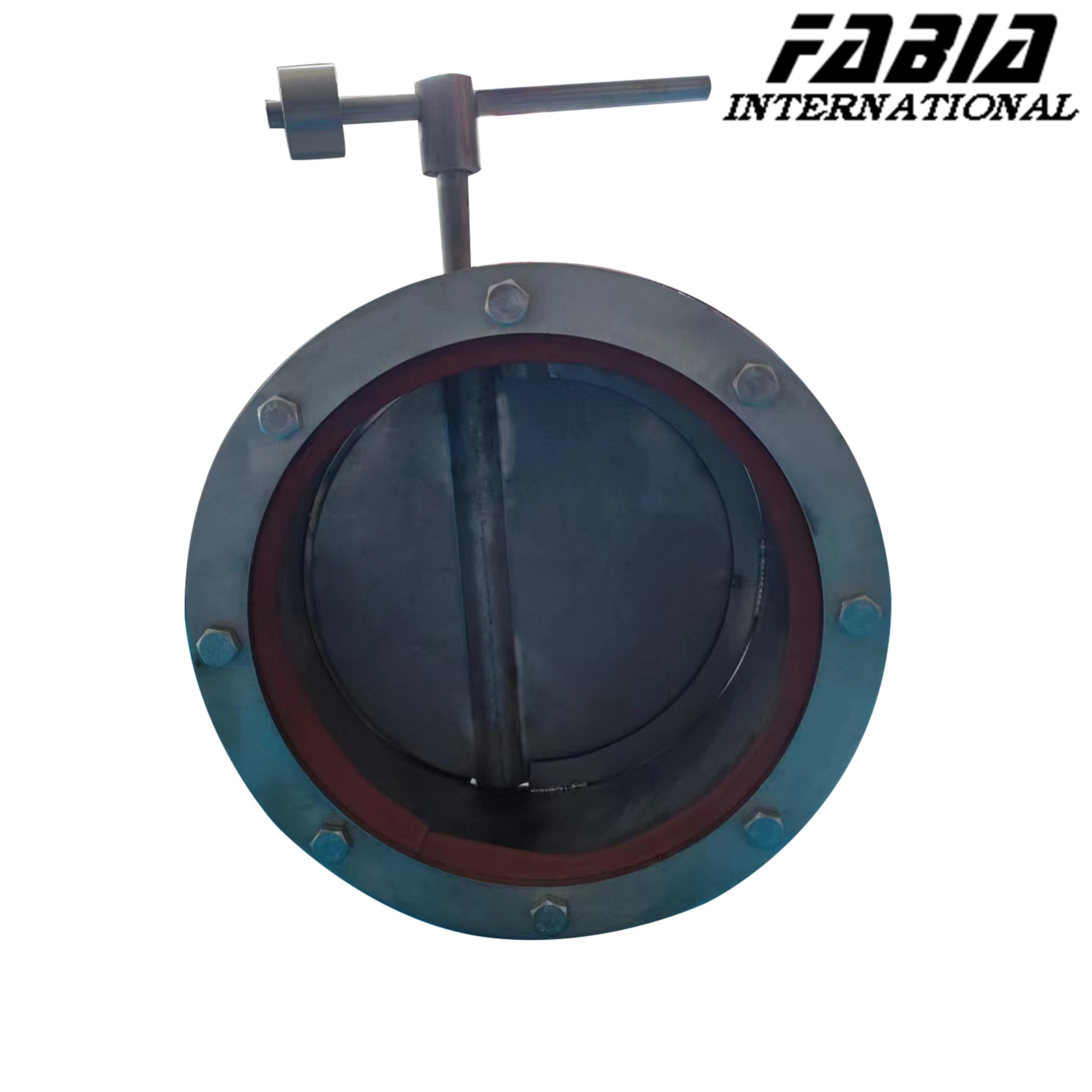

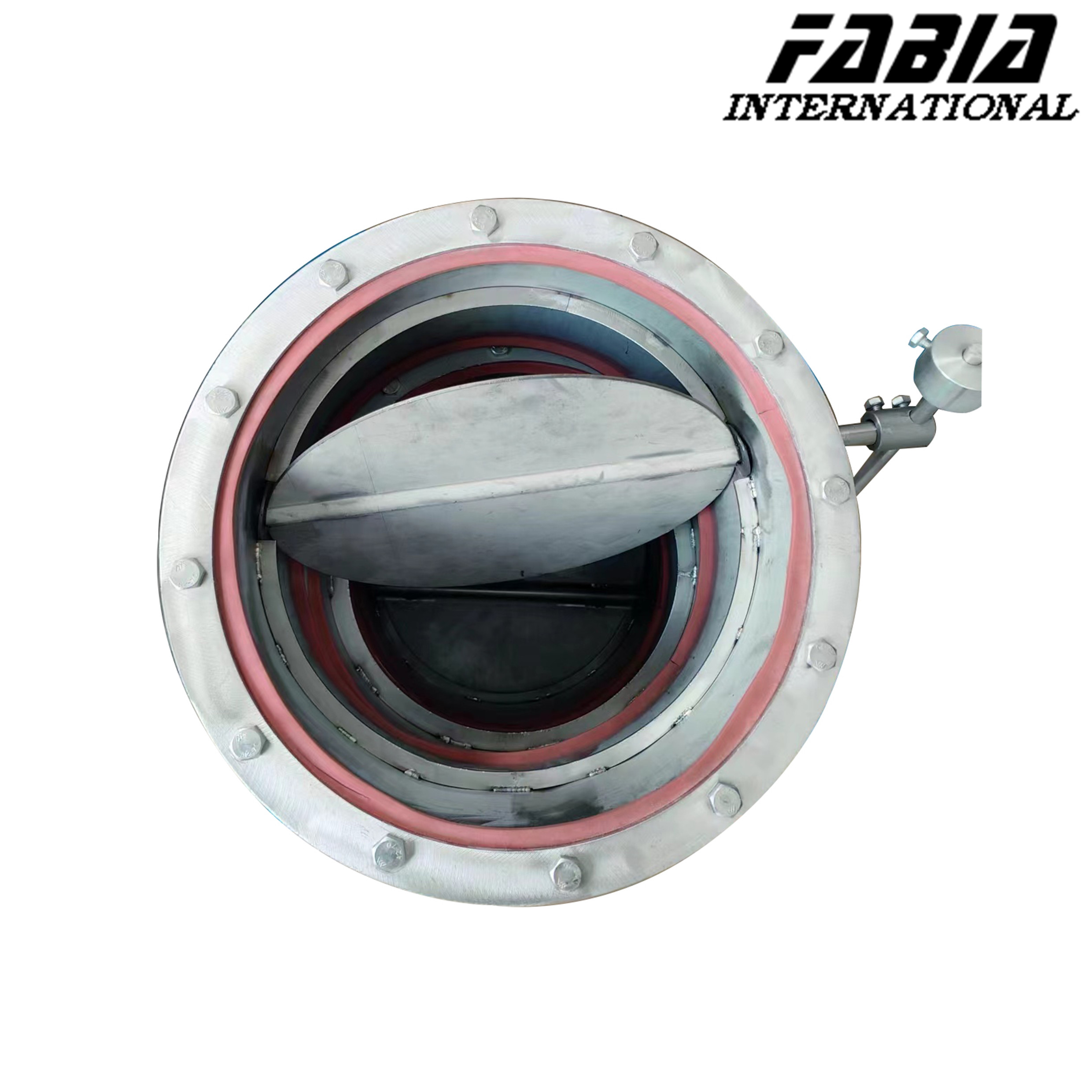

Customizable Damper Valve For Specific Industrial Requirements
1. Description:
Baffle valve is a common industrial pipe controller, widely used in petrochemical, chemical, food and other industries.
Realizes the switching control of the pipeline by moving the baffle up and down, and has the advantages of small volume, simple structure and convenient operation.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Customizable Damper Valve For Specific Industrial Requirements | |
| Size: | 1/8 inch ～ 18 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt /Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN0.1～PN16 | |
| Temperature: | -40℃～1000℃ | |
| Model: | FB-DB.......... | |
3. Features:
- Structural characteristics of flapper valve Baffle valve is mainly composed of flange, valve body, baffle, bearing and so on.
- Among them, the baffle is the core component of the baffle valve, and the up and down movement of its position determines the opening and closing state of the pipeline. At the same time, the baffle valve is also provided with a sealing gasket and a sealing surface to ensure the normal operation of the pipeline.
- Use of flapper valves Baffle valves are used to control the flow and pressure of various fluids, and are widely used in petrochemical, chemical, electric power, water treatment and other fields.
- In the pipeline with high temperature, high pressure and corrosive media, the baffle valve can play its superior performance to ensure the safe and stable operation of the pipeline.
- Maintenance of flapper valve In the long-term use of flapper valves, regular maintenance and maintenance are required.
- Need to check the sealing performance of the flapper valve to ensure that the sealing gasket and sealing surface are in normal condition. Bearings of the flapper valve should be lubricated to reduce wear and friction.
- In addition, during the use of the baffle valve, it is necessary to pay attention to the operation specifications to avoid equipment damage or personnel injury due to improper operation.
