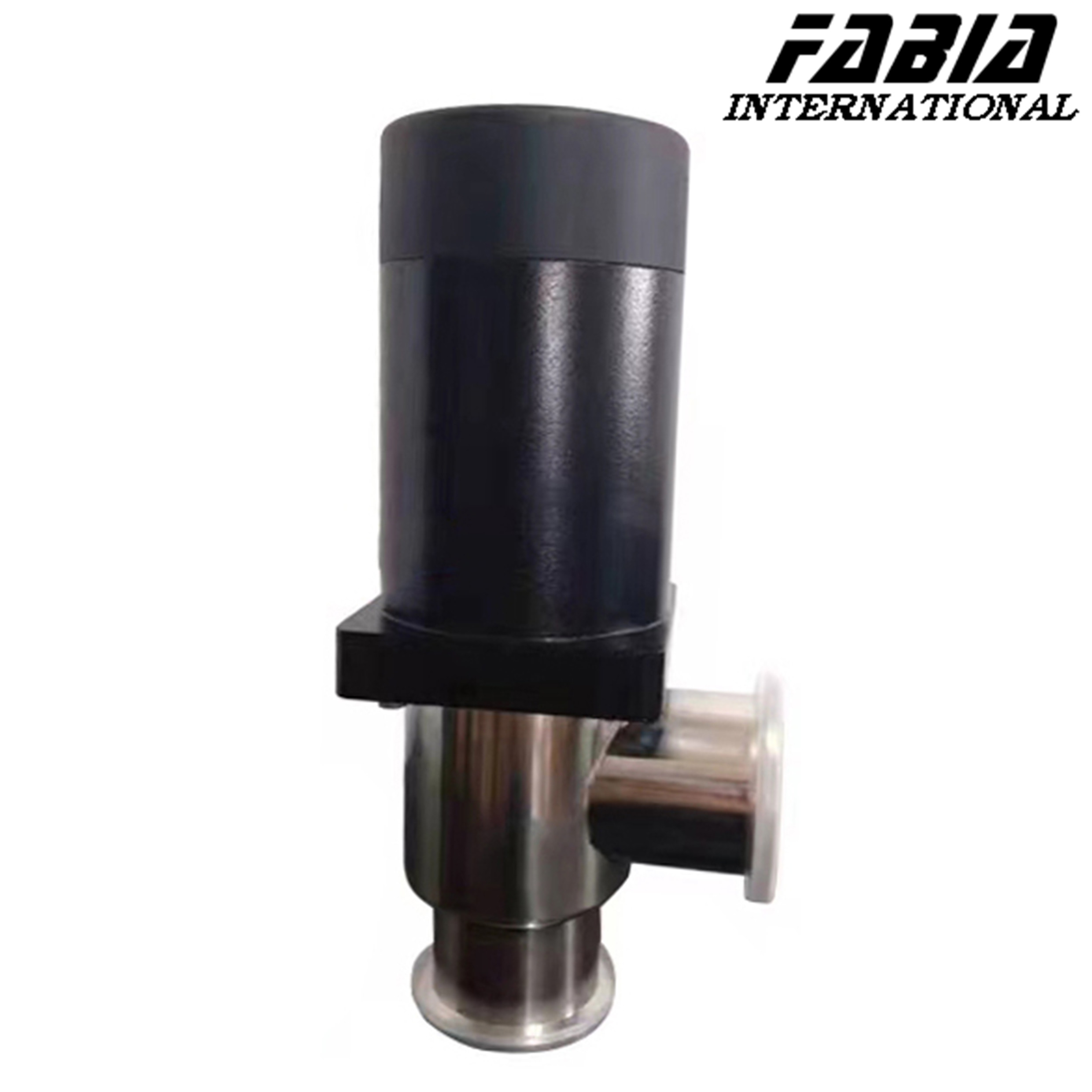

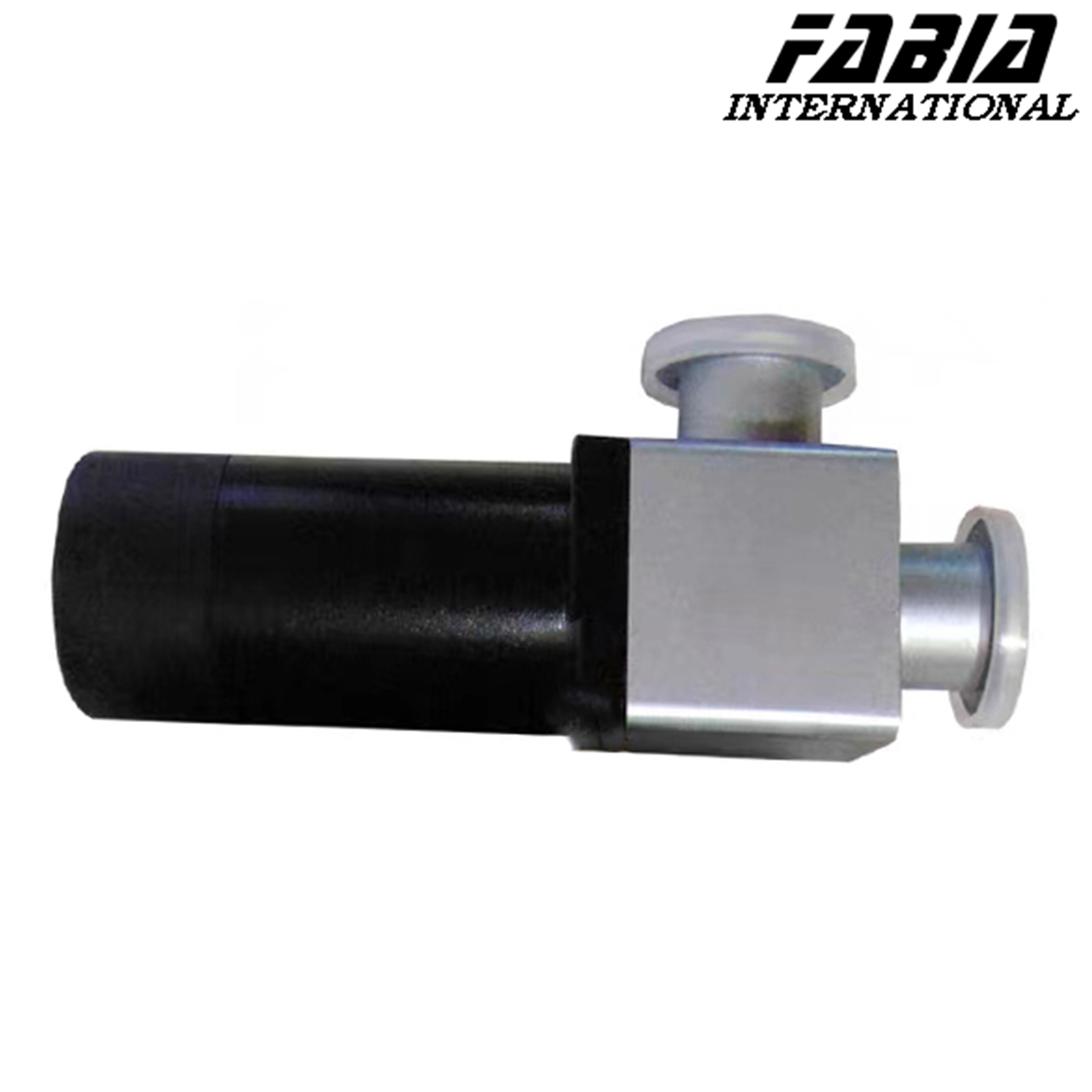

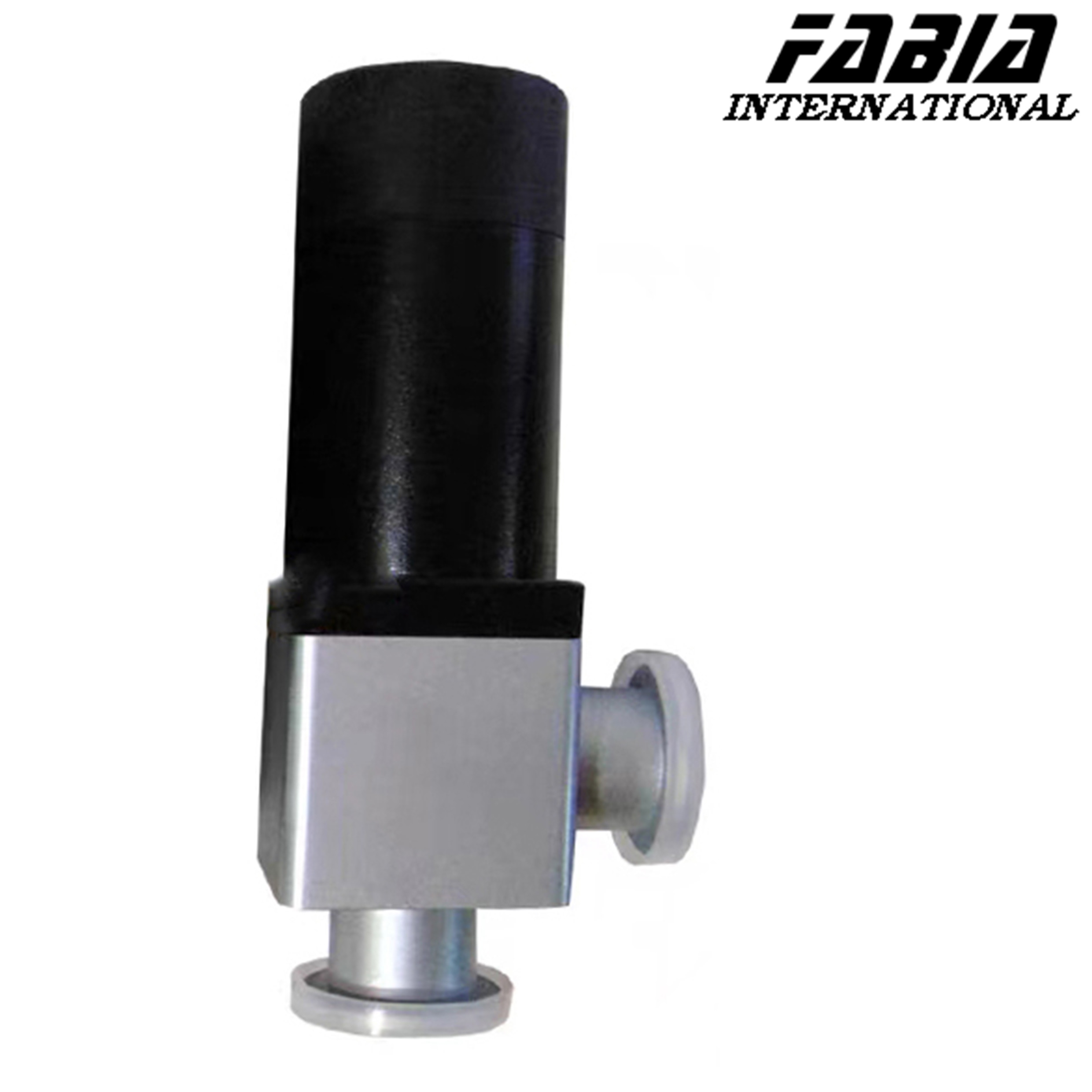

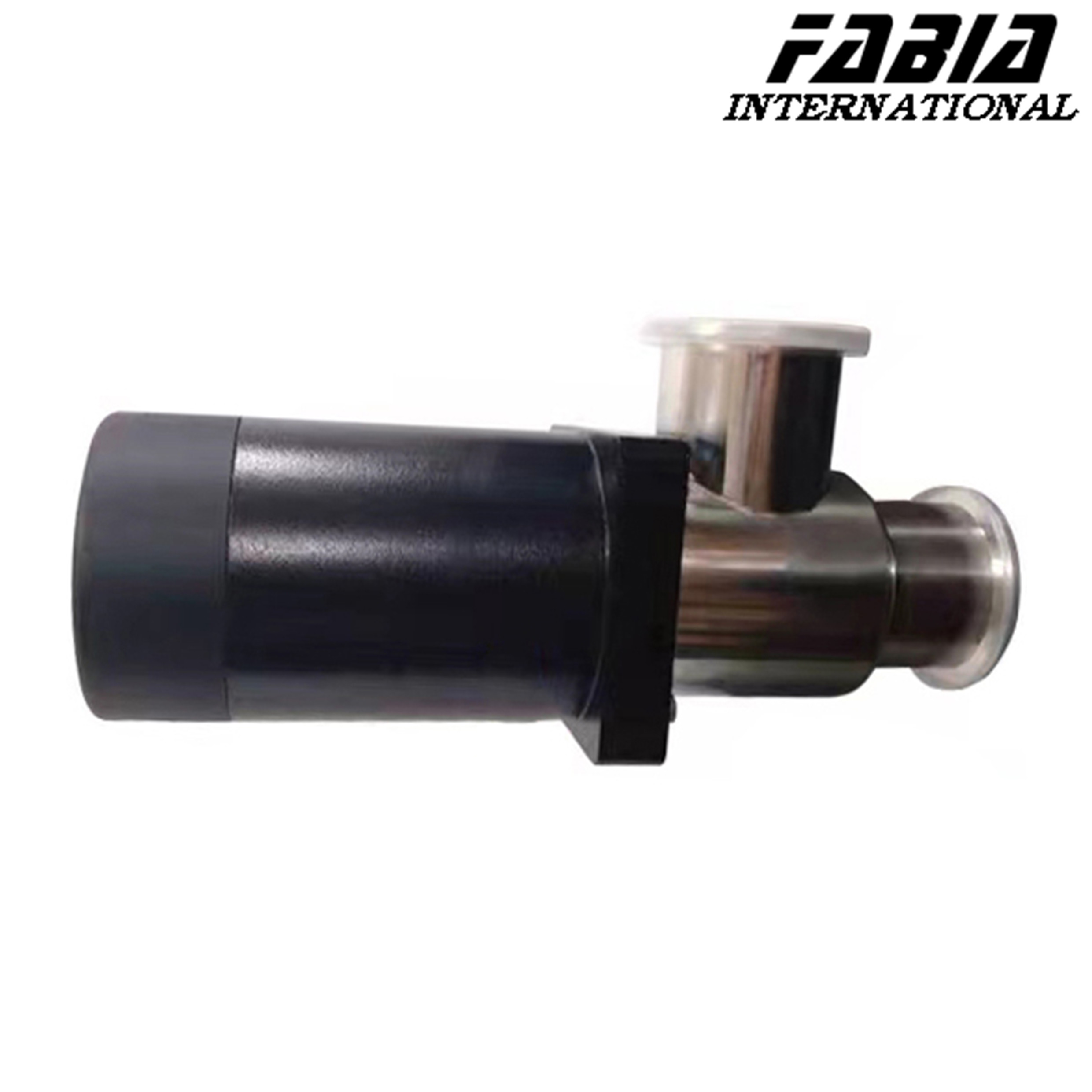

Electric High Vacuum Flapper Valve Stainless Steel
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Electric High Vacuum Flapper Valve | Valve Type | Damper Valve |
|---|---|---|---|
| Valve Actuator | Electric | Valve Connection | Clamp |
| Valve Material | Stainless Steel | Valve Noise | Low |
| Valve Pressure | PN10-16 | Valve Size | 1/8 Inch ～ 18 Inch |
| Valve Temperature | 200°F | ||
| High Light | High Vacuum Flapper Valve,Vacuum Flapper Valve Stainless Steel,Electric Flapper Valve |
||
Product Description
FABIA Electric high vacuum flapper valve
1. Description:
Electric baffle door is set with a fixed guide rail, and the sealing place has a certain taper, the more it gets tighter, the more it gets loose, the isolation is tight, and the opening is flexible and reliable during normal work.
After the electric isolation door is closed, there is no internal leakage, external leakage, good shaft seal, no air leakage, air leakage phenomenon.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric high vacuum flapper valve | |
| Size: | 1/8 inch ～ 18 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt /Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN0.1～PN16 | |
| Temperature: | -40℃～1000℃ | |
| Model: | FB-DB.......... | |
3. Features:
- Baffle door blade is made of steel plate die forming or casting forming, the cross-section flow blade ensures the media pressure loss is minimal, the frame is made of steel plate die forming, section steel welding or casting forming,
- Baffle door blade is made of steel plate die forming or casting forming, the cross-section flow blade ensures the media pressure loss is minimal, the frame is made of steel plate die forming, section steel welding or casting forming.
- Special fasteners are used between the blade and the main shaft. After the baffle damper is installed on the pipeline, the sealing rate before and after the blade is closed can reach more than 99%, and any parts can be removed, and ensure that the parts can be easily repaired or replaced in the working state.
