Pneumatic High Vacuum Flapper Valve Stainless Steel Vacuum Damper Valve
Place of Origin | China |
---|---|
Brand Name | FABIA |
Certification | ISO9001,CE,CCS,DNV |
Model Number | 1/8 inch ~ 36 inch |
Minimum Order Quantity | 1 set |
Price | Negotiable |
Packaging Details | Cartons/Wooden cases |
Delivery Time | 15-30 work days |
Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Product Name | Pneumatic High Vacuum Flapper Valve | Valve Type | Damper Valve |
---|---|---|---|
Valve Operation | Pneumatic | Valve Connection | Flange |
Valve Material | Stainless Steel | Valve Media | Air |
Valve Pressure | 150 PSI | Valve Temperature | 180°F |
High Light | stainless steel flapper valve,vacuum damper valve,Stainless Steel damper valve |
Product Description

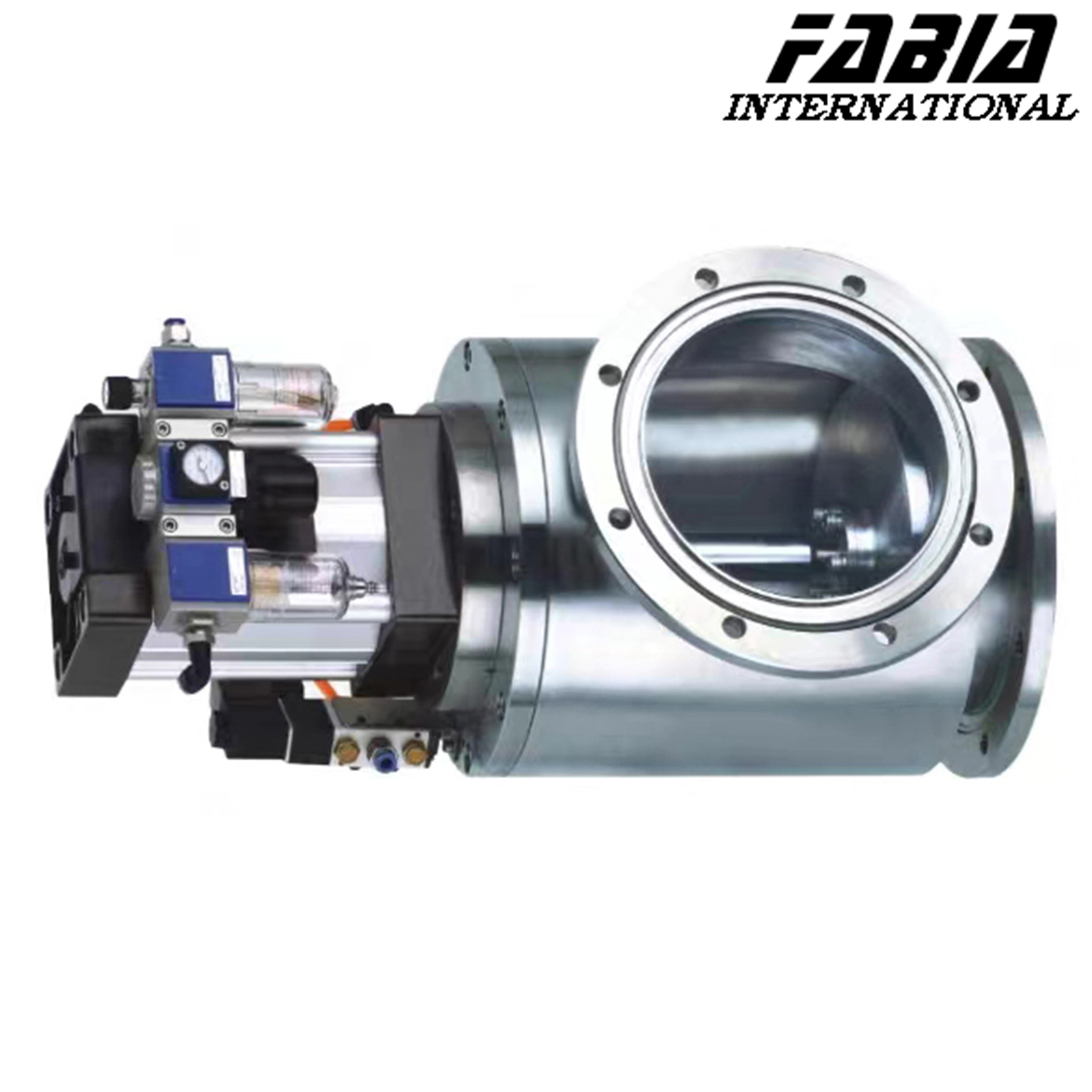

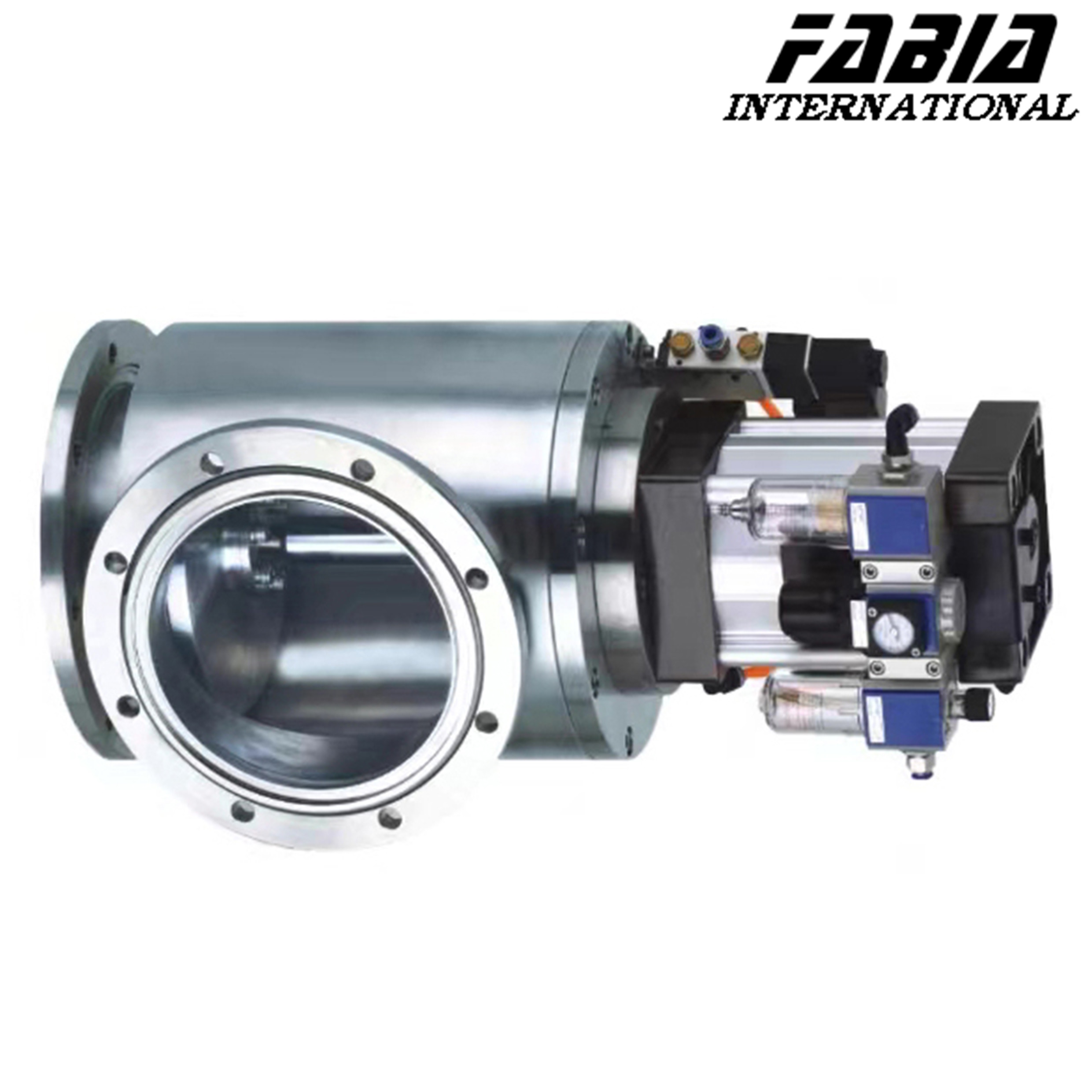

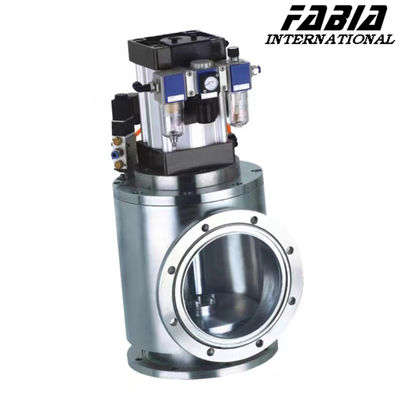

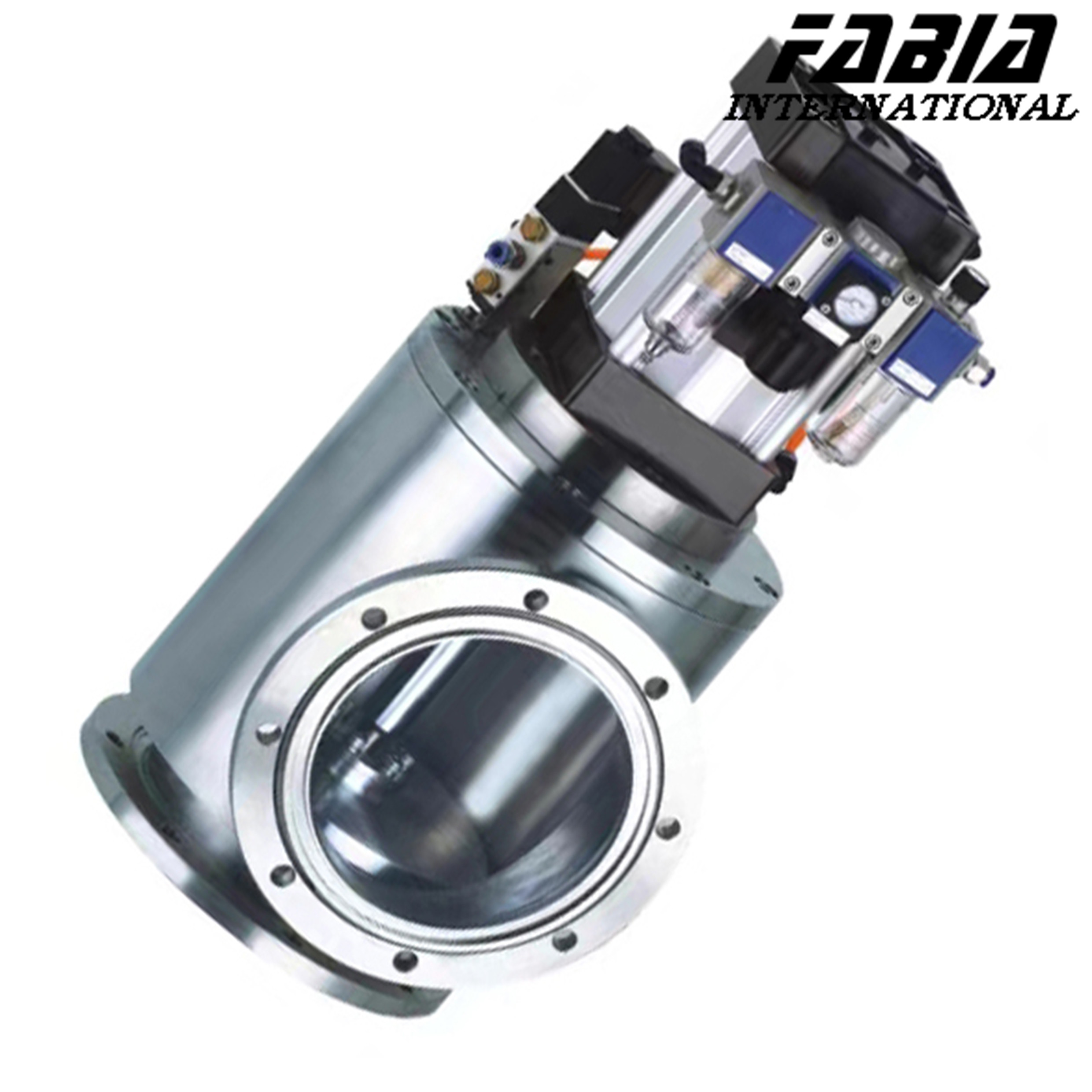

FABIA Pneumatic high vacuum flapper valve
1. Description:
Standard modular design, easy to replace and repair.
Easy to clean design.
Solenoid valve adopts energy-saving design, small size.
2. Specification:
FABIA Valve Parameter List | ||
Valve type: | Pneumatic high vacuum flapper valve | |
Size: | 1/8 inch ~ 18 inch | |
Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
Connection type: | Butt /Flange Connection | |
Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
Pressure rating: | PN0.1~PN16 | |
Temperature: | -40℃~1000℃ | |
Model: | FB-DB.......... |
3. Features:
- High vacuum baffle valve to compressed air as the power, through the electromagnetic reversing valve to change the direction of the gas path, the implementation of the cylinder drive baffle valve opening and closing movement, suitable for 1.3×10-3Pa ~ 1.0×105Pa vacuum system to open or block the air flow.
- Baffle valve has the advantages of simple structure, short opening and closing time, safety, reliability, durability, and automatic control, and is widely used in electronics, chemical industry, metallurgy, aviation, aerospace, materials, biomedicine, atomic energy, space exploration and other high-tech fields.
- High vacuum pneumatic flapper valve cylinder diameter and piston rod diameter design is very important, flapper valve in the opening and closing, if the cylinder and piston rod diameter design is unreasonable, it will lead to the valve can not open, opening and closing time is long and other problems.
- Series of valves are divided into manual, pneumatic, electromagnetic three driving methods, it has the advantages of smooth action, small size, reliable use, good sealing performance and long life.
