Electric Flue Industrial Flapper Valve Stainless Steel
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Electric Flue Flapper Valve | Type | Damper Valve |
|---|---|---|---|
| Valve Body | Stainless Steel | Actuator Type | Electric |
| Connection Type | Flanged | End Connection | Flanged |
| Flow Rate | Low/Medium/High | Material | Stainless Steel |
| Seat Type | Metal-to-Metal | Control Type | On/Off |
| Pressure Rating | High | Temperature Range | High |
| High Light | industrial flapper valve Stainless Steel,Flue industrial flapper valve,Stainless Steel flapper valve |
||
Product Description

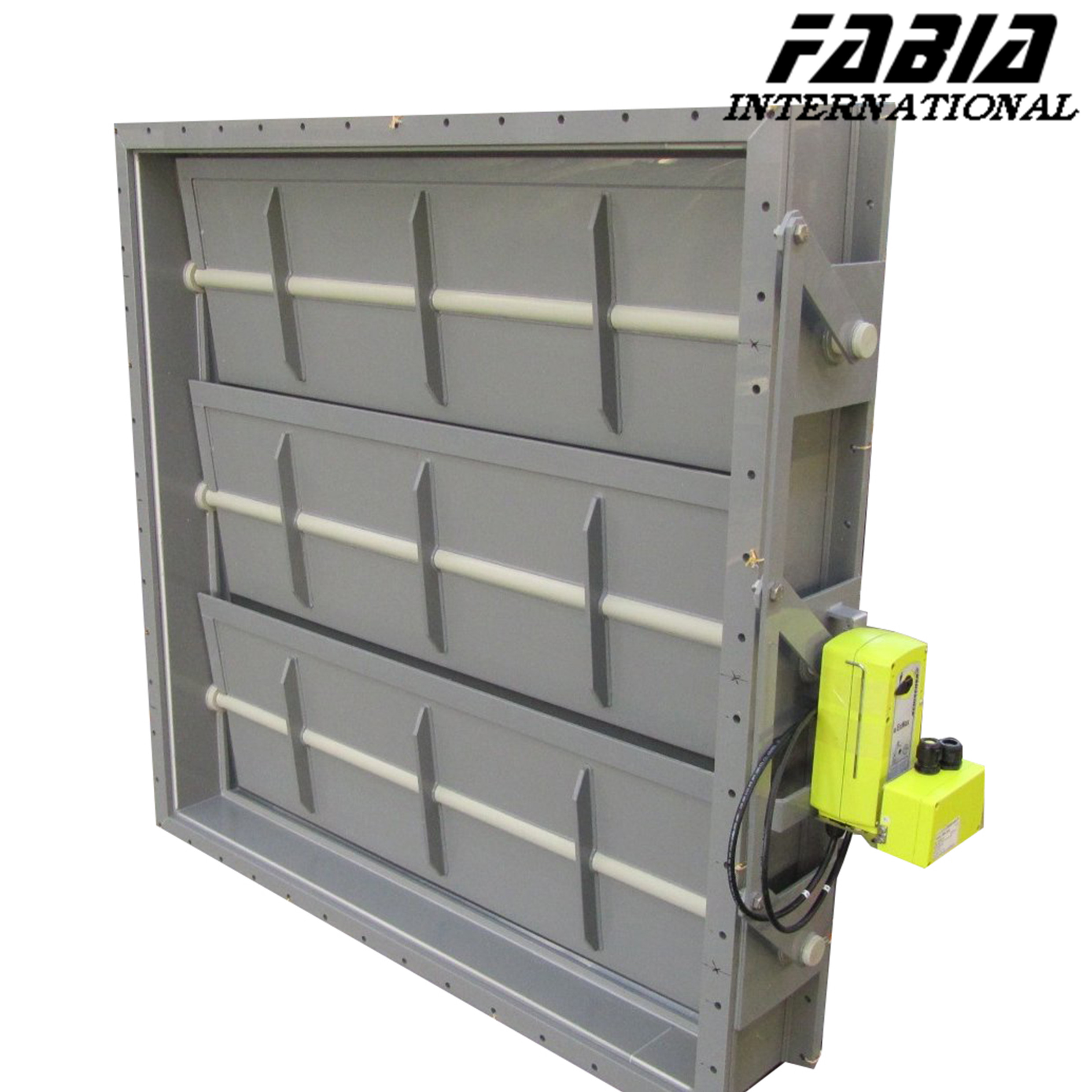

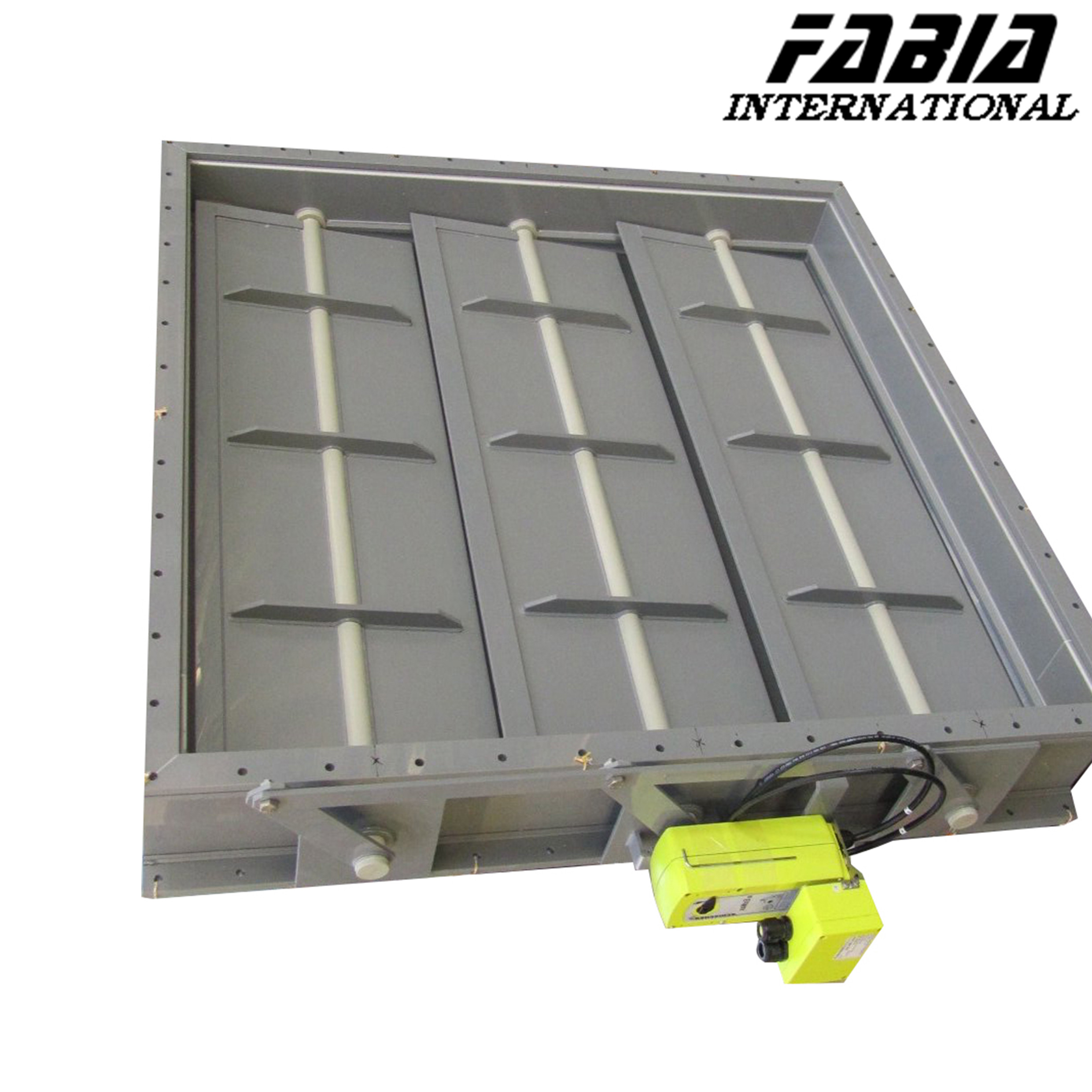

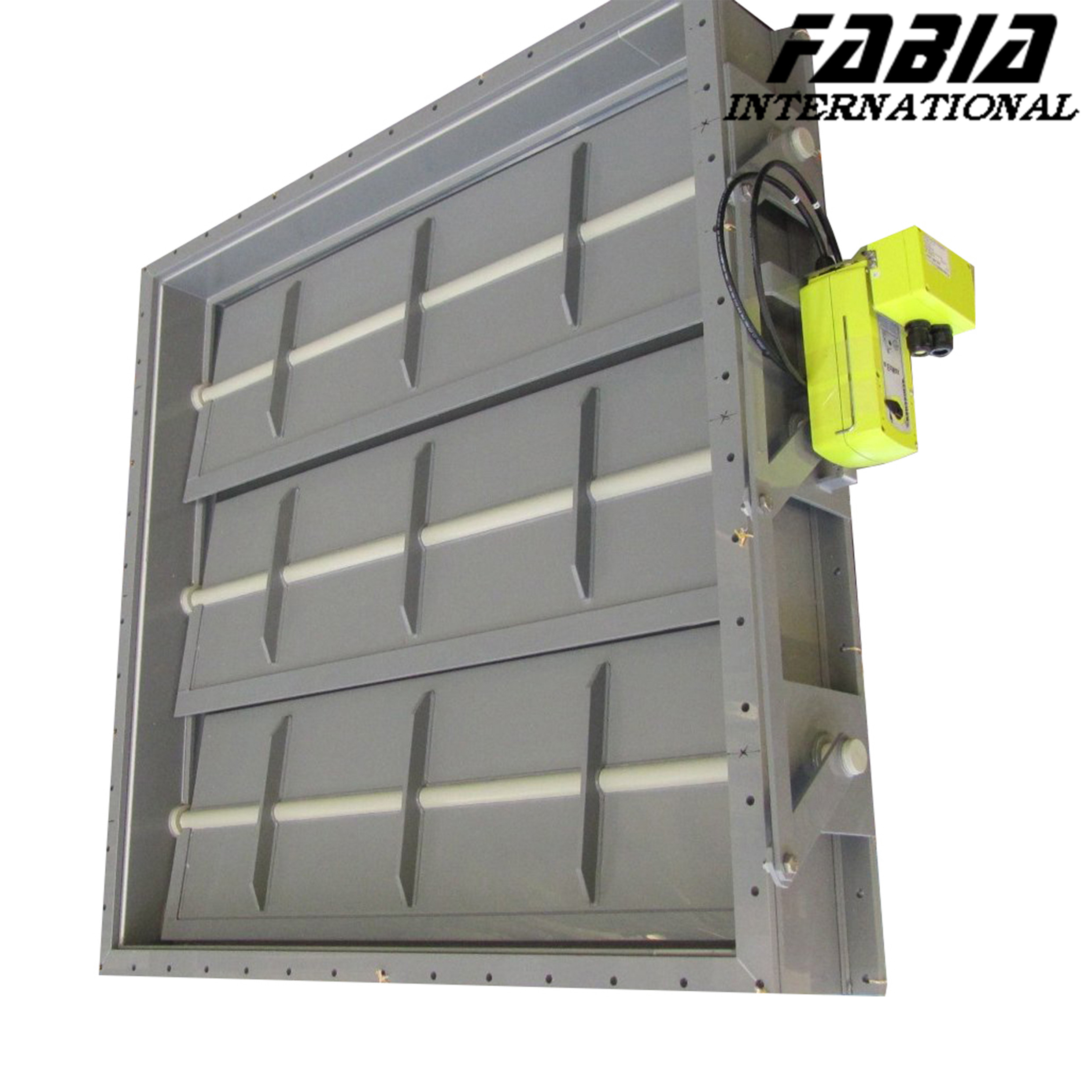

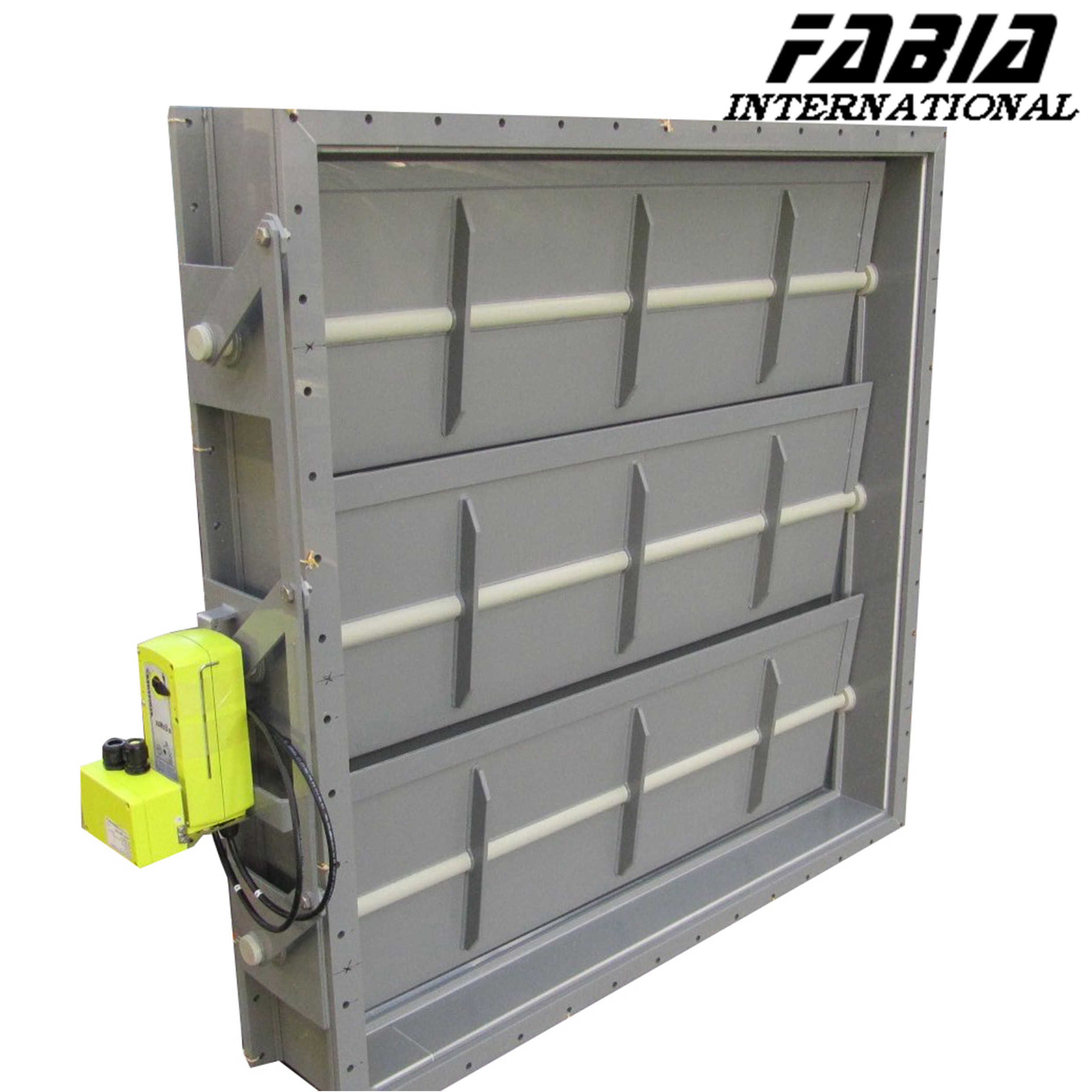

FABIA Electric Flue Flapper Valve Stainless Steel Flue Flapper Valve
1. Description:
Flue gas baffle door is used in the inlet, outlet or bypass flue gas desulfurization and denitration system.
Plug-in plate is usually driven by electric hydraulic drive to expand and expand to isolate the flue gas.
Can be opened or closed by DCS near and far operation.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: |
Electric Flue Flapper Valve Stainless Steel Flue Flapper Valve |
|
| Size: | 1/8 inch ～ 18 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt /Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN0.1～PN16 | |
| Temperature: | -40℃～1000℃ | |
| Model: | FB-DB.......... | |
3. Features:
- Gas baffle door of the sealing structure adopts the combination of soft and hard sealing, which is tightly sealed and can achieve the purpose of zero leakage.
- Switch flexible baffle door adopts hydraulic drive mode, thrust is more than 17 tons, pull is more than 13 tons, oil pressure is more than 25KPa, to ensure that the equipment switch is flexible without jam.
- High temperature insert board using diamond structure design, high temperature resistance without deformation.
- Easy to install factory valve with flange, just cut the flue open, the valve directly welded on.
