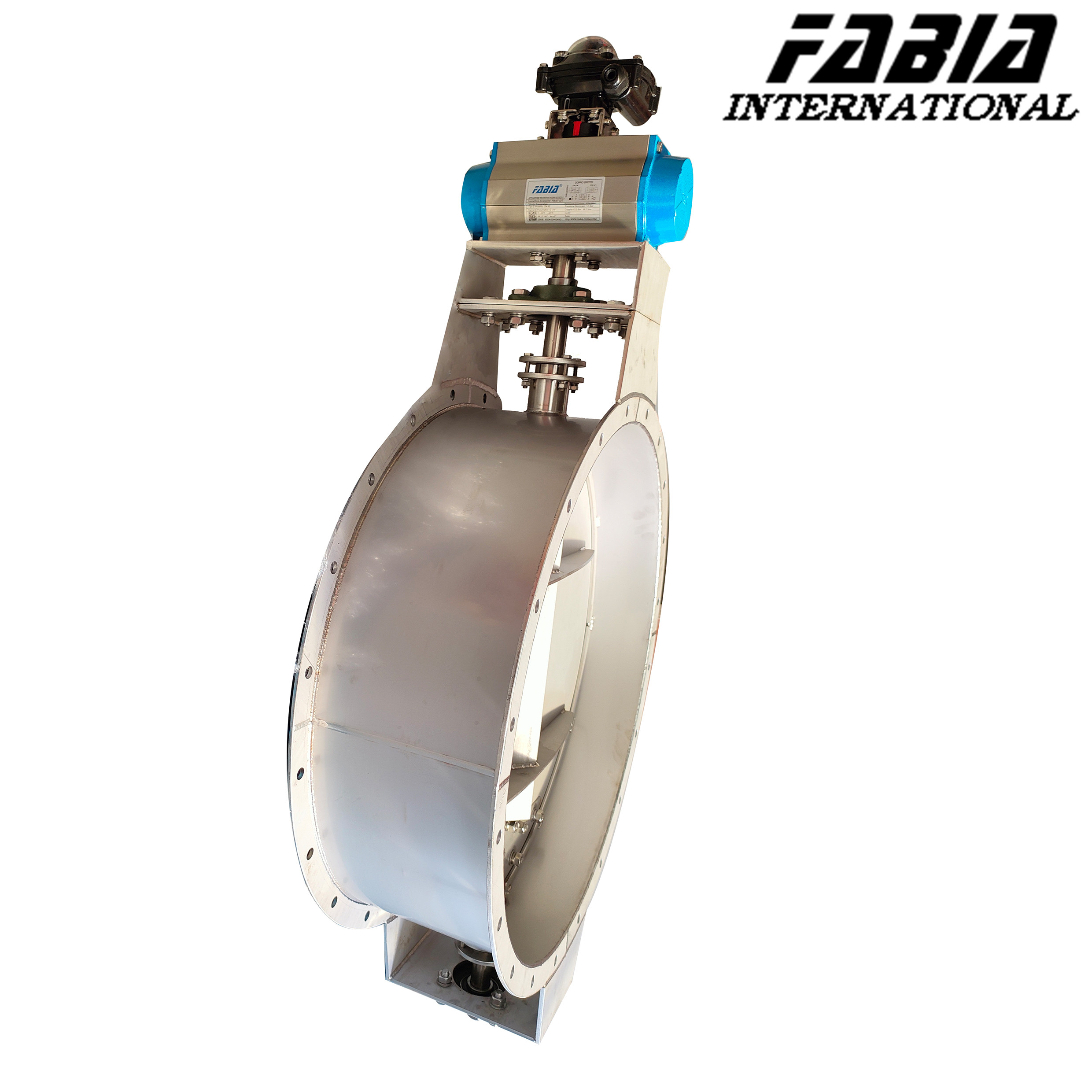

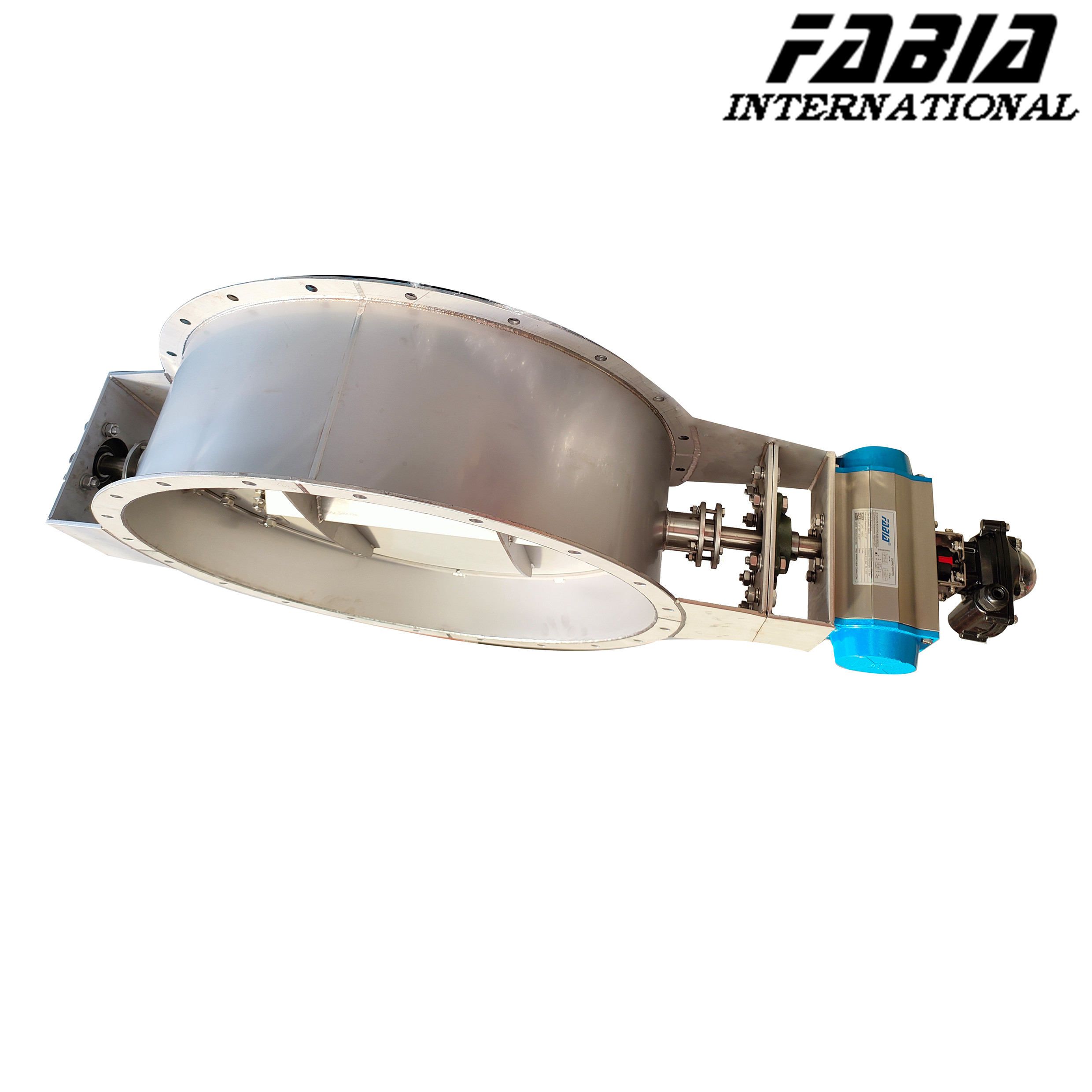

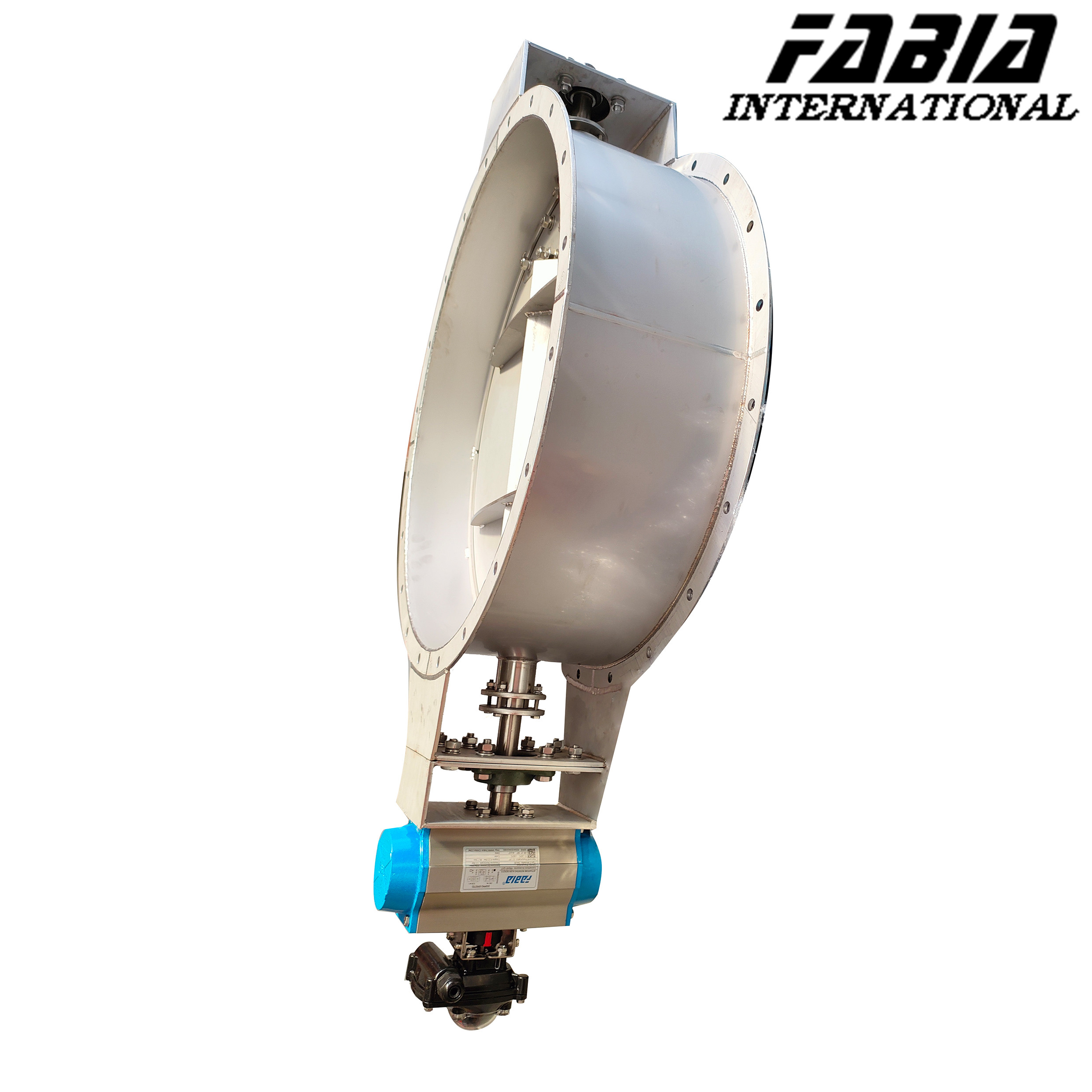

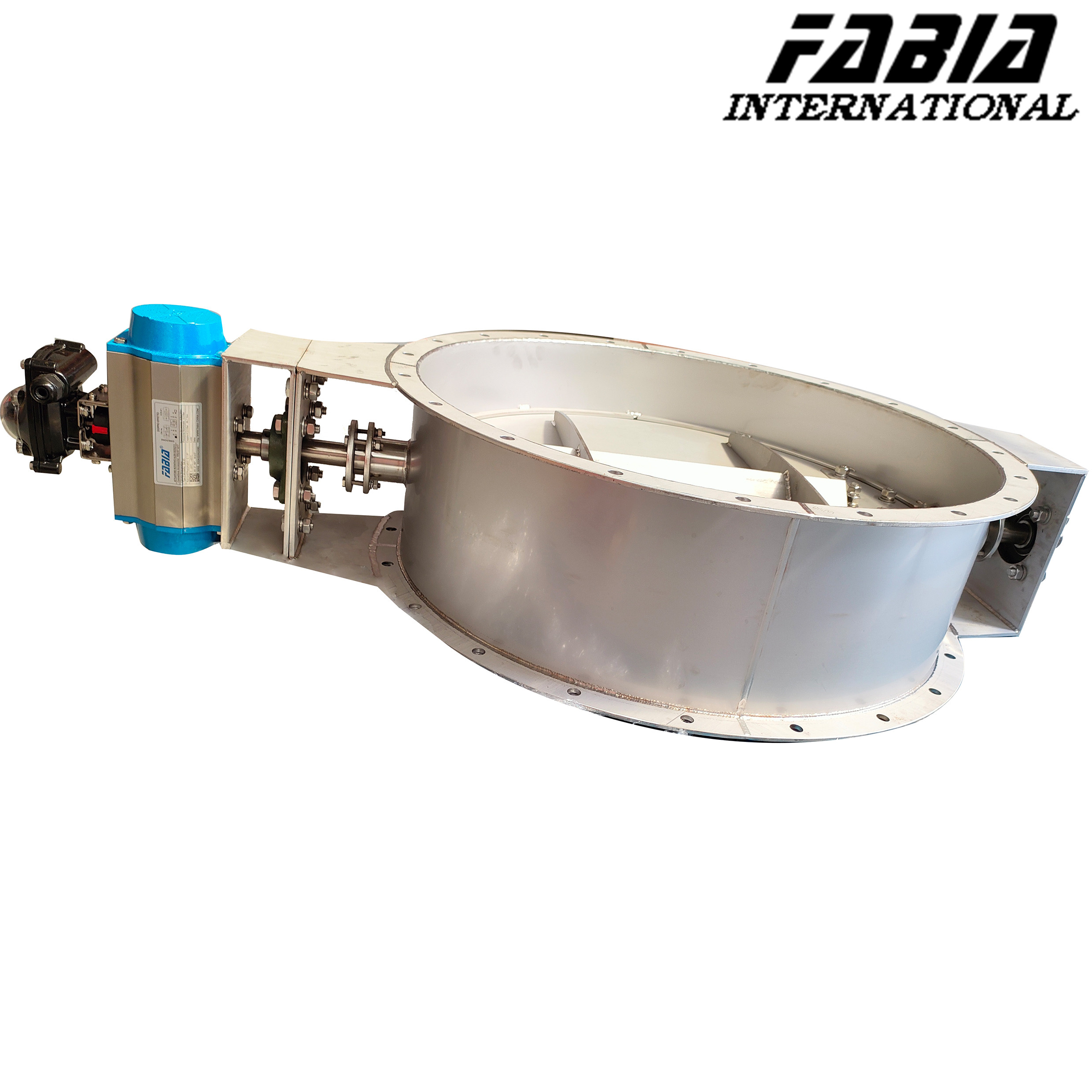

Pneumatic Duct Flapper Valve Stainless Steel Drain Flapper Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pneumatic Duct Flapper Valve Stainless Steel | Type | Damper Valve |
|---|---|---|---|
| Material | Stainless Steel | Actuator | Pneumatic |
| Connection | Flange | Pressure | 150 Psi |
| Control | Pneumatic | Temperature | -40℃~+1000℃ |
| Size | 1/8 Inch ～ 18 Inch | ||
| High Light | drain flapper valve,Stainless Steel drain flapper valve,Pneumatic Duct Flapper Valve |
||
Product Description
FABIA Pneumatic Duct Flapper Valve Stainless Steel Flapper Valve
1. Description:
Pneumatic flapper valve is a device that controls fluid flow through aerodynamic force.
In practical applications, pneumatic flapper valves are widely used in petrochemical, electric power, metallurgy, paper making, food processing and other industries.
Can be used to control the flow of liquid, gas, steam and other media, to achieve flow control, pressure regulation, flow direction switching and other functions. At the same time, the pneumatic flapper valve can also be used in conjunction with other control devices to form an automated control system to improve production efficiency and safety.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pneumatic Duct Flapper Valve Stainless Steel Flapper Valve | |
| Size: | 1/8 inch ～ 18 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt /Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN0.1～PN16 | |
| Temperature: | -40℃～1000℃ | |
| Model: | FB-DB.......... | |
3. Features:
- Pneumatic duct damper valve is a device that controls fluid flow by aerodynamic force.
- Widely used in the field of industrial production and fluid control, and has the characteristics of simple structure, high reliability and convenient operation.
- Working principle of air duct baffle valve mainly depends on the role of aerodynamic force.
- When the air source is applied to the drive device of the pneumatic flapper valve, the pressure generated by the air source will push the piston or diaphragm to move, causing the flapper to open or close.
