Vacuum Ball Valve For Vacuum Application Screwed Ball Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Manual Vacuum Ball Valve | Name | Vacuum Ball |
|---|---|---|---|
| Actuator | Manual | Connection | Thread |
| Material | Stainless Steel | Pressure | 150-2500 Psi |
| Seal | PTFE/EPDM | Size | 1/2-8 Inch |
| Temperature | -20-450℃ | Application | Water/Oil/Gas/Chemical |
| High Light | FABIA Vacuum ball valves,FABIA Screwed Ball Valve,FABIA Screwed Ball Valves |
||
Product Description

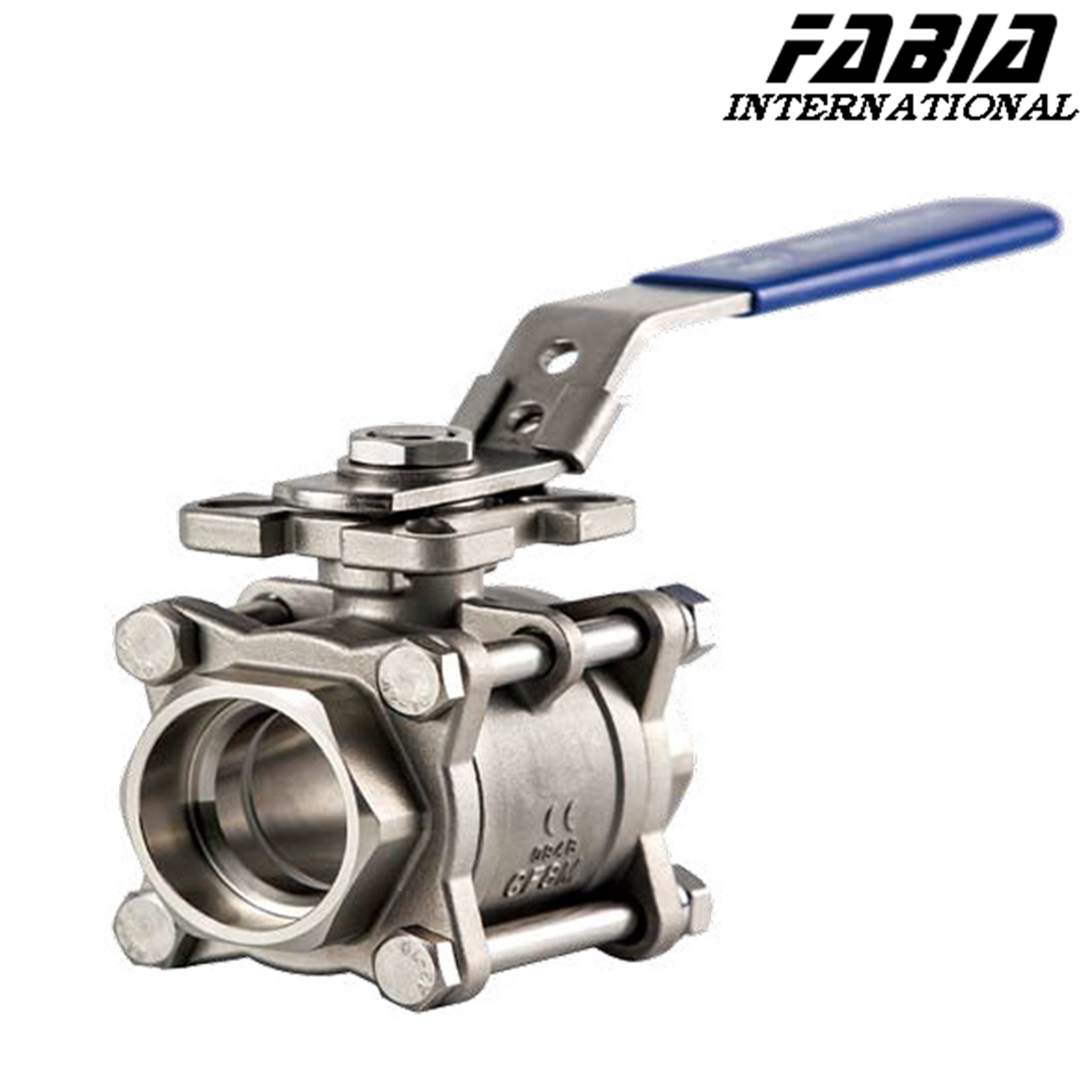

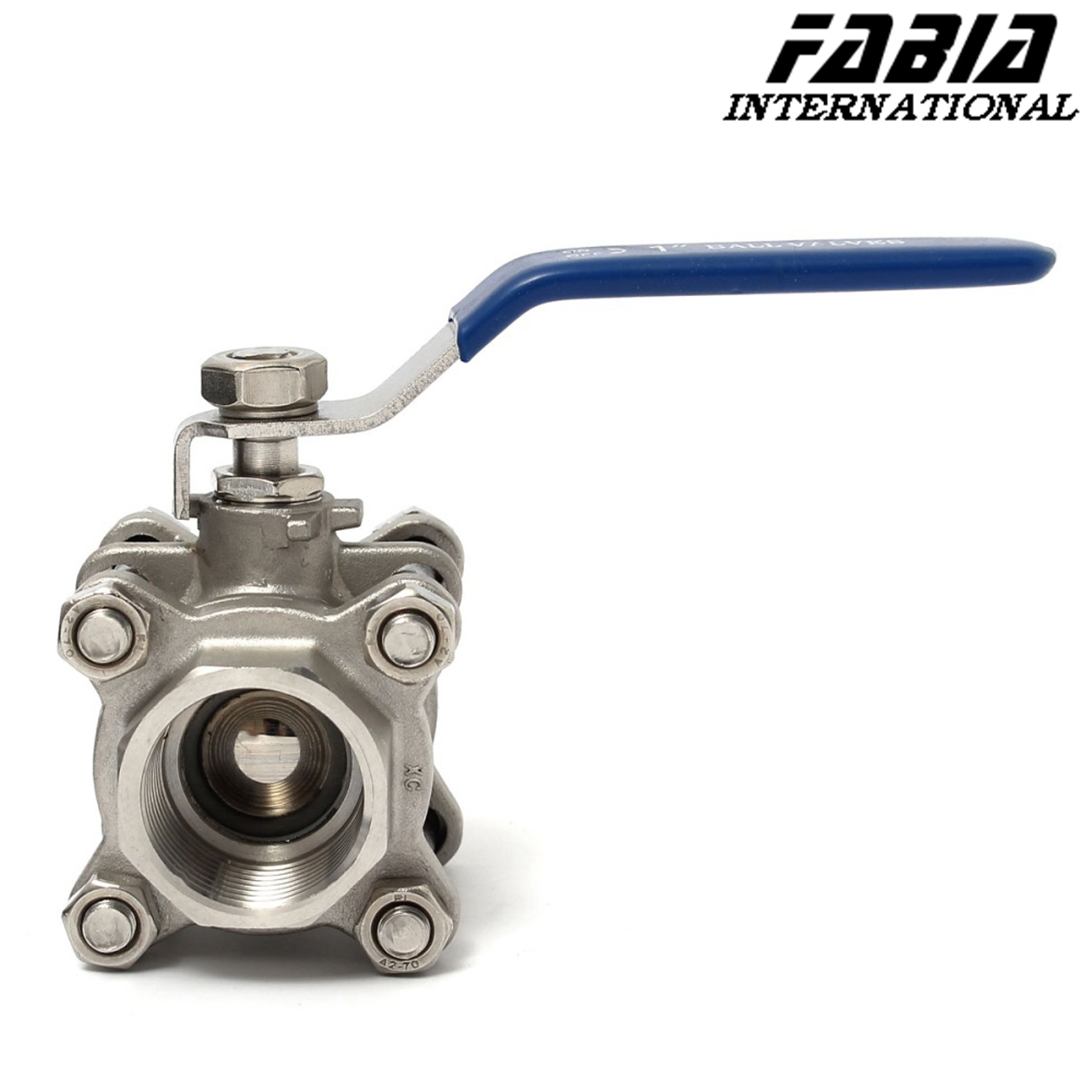

Vacuum Ball Valve Manual Stainless Steel Screwed Ball Valve
1. Description:
Manual vacuum ball valves are widely used in gas control in vacuum systems, such as vacuum pumps, vacuum tubes, vacuum furnaces and other equipment.
Manual vacuum ball valve can control the flow direction and flow rate of the gas, so as to achieve the control of the vacuum system.
Manual vacuum ball valves can also be used in some chemical, pharmaceutical, food and other industries to control the flow of fluids
2.Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Vacuum Ball Valve Manual Stainless Steel Screwed Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN16,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Simple structure and convenient operation.
- Good sealing, long service life.
- Good corrosion resistance, suitable for all kinds of media.
- Can realize fast switching and high precision of fluid control.
