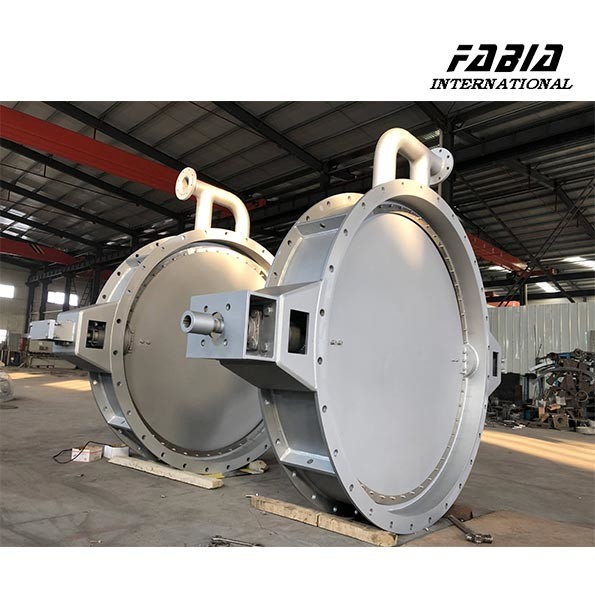

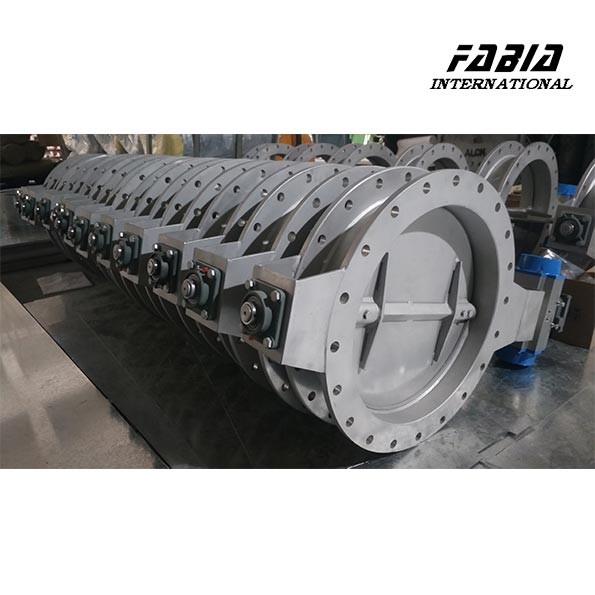

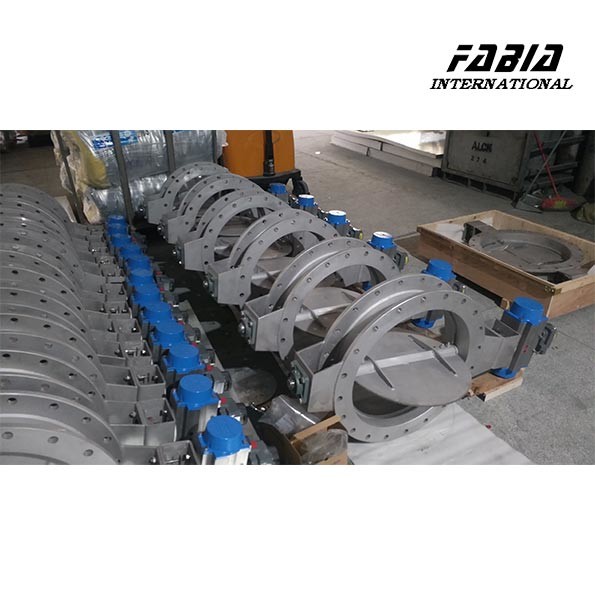

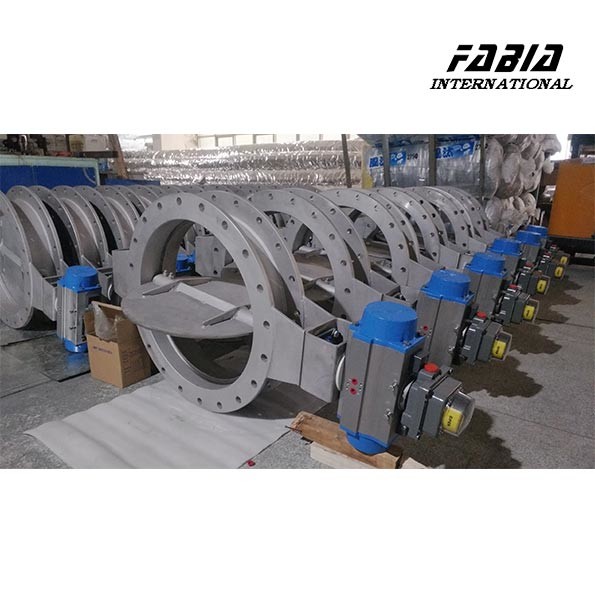

FB-D-33series Pneumatic High Temprature Flue Gas Valve DNV Butterfly Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,BV,CCS,DNV |
| Model Number | 2 inch ～ 100 inch |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | High Temprature Flue Gas Valve | Valve Application | Ventilation |
|---|---|---|---|
| Valve Material | Stainless Steel | Valve Connection | Flanged |
| Valve Operation | Pneumatic | Valve Certification | BV,DNV,CCS |
| Valve Pressure | ≤0.25Mpa | Valve Seal | Stainless Steel |
| Valve Size | 2-100 Inch | Valve Temperature | 500℃ |
| Valve Type | Butterfly | ||
| Highlight | Desulfurization Flue Gas Valve,Pneumatic Flue Gas Valve,High Temprature Flue Gas Valve |
||
Product Description
FB-D-33series Pneumatic High Temprature Flue Gas Valve DNV Butterfly Valve
1. Description:
FB-D-33 series butterfly valves are mainly desulfurization and denitrification systems in Marine and road industrial fields.
FB-D-33 series adopts double valve plate air seal structure design, through the external input of high pressure gas to achie- ve a sealing air curtain on the sealing surface when the valve is closed, so that the valve can achieve zero leakage in the clo- sed state. In addition, in high temperature flue gas lines, this design also reduces the body temperature, which allows the valve to operate more stable and longer in high temperature environments. In the pipeline system with large particle conc- entration, the valve can realize the self-cleaning function of the sealing surface, which can effectively prevent the valve
from being loosely closed due to the accumulation of particles in long-term use.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Flange type heavy-duty ventilation butterfly valve | |
| Size: | 2inch ～ 100 inch | |
| Material: |
316/316L/304/304L/ Corten |
|
| Connection type: | Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | ≤0.25Mpa | |
| Temperature: | -≤500℃ | |
| Model: | FB-D-33.......... | |
3. Features:
- Double valve plate air seal structure design
- Suitable for low pressure air or other gas flow, pressure control and high temperature gas
- Zero air leakage
- CCS&DNV Type approval certificate, BV French Classification Society Factory approval certificate and product type approval certificate.
- Strong Corrosion Resistance: Manufactured with high-quality corrosion-resistant materials, suitable for harsh operating environments.
- Precise Control: High-precision control system ensures accurate adjustment of gas flow.
- Excellent Sealing: Well-designed sealing structure reduces leakage rate.
- Fast Response: Quick opening and closing enhance system response speed.
- Simple Structure: Easy maintenance minimizes downtime.
- High Temperature Resistance: Able to withstand high-temperature conditions reliably.
