DN125 Carbon Steel Butterfly Valve With EPDM Seal And Stainless Steel Plate For Ventilation

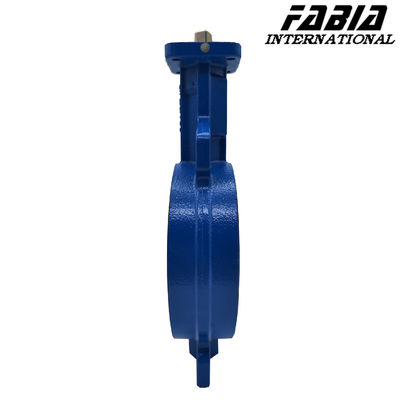

  • DN125 Carbon Steel Butterfly Valve With EPDM Seal And Stainless Steel Plate For Ventilation

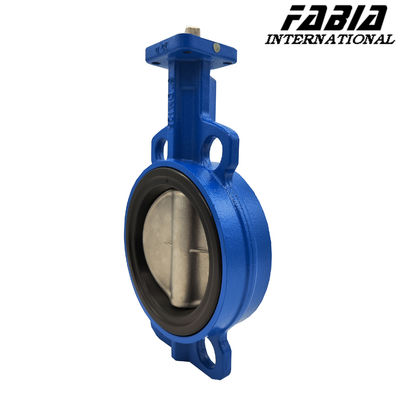

  • DN125 Carbon Steel Butterfly Valve With EPDM Seal And Stainless Steel Plate For Ventilation

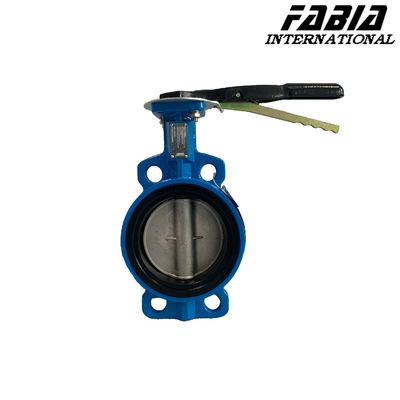

  • DN125 Carbon Steel Butterfly Valve With EPDM Seal And Stainless Steel Plate For Ventilation

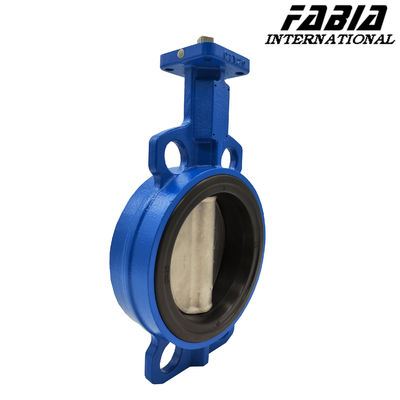

  • DN125 Carbon Steel Butterfly Valve With EPDM Seal And Stainless Steel Plate For Ventilation
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Manual EPDM Seal Butterfly Valve Valve Type Industrial Butterfly Valve
Body Material Carbon Steel Actuator Type Manua
Material Plate Stainless Steel Connection Type Clamp
Pressure Rating PN16 Seat Material EPDM
Size DN125 Temperature Range -30℃~+150℃
High Light

EPDM Seal Steel Butterfly Valve

,

Stainless Plate Steel Butterfly Valve

,

Ventilation Steel Butterfly Valve
Leave a Message
Product Description

DN125 Carbon Steel Butterfly Valve With EPDM Seal And Stainless Steel Plate For Ventilation



1. Description:



Butterfly valve is widely used in chemical, building materials, power stations, glass and other industries in the ventilation, environmental protection projects of dust containing cold air or hot air body pipe, as a gas medium to adjust the flow or cut off devices. The EPDM sealing ring is used in the structure of the clamping butterfly valve, which solves the disadvantages of the traditional eccentric butterfly valve, and achieves the purpose of prolonging life and enhancing sealing.



2. Specification:



FABIA Valve Parameter List
Valve type: DN125 Carbon Steel Butterfly Valve With EPDM Seal And Stainless Steel Plate For Ventilation
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt /Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........



3. Features:



  • Use of medium line plate and short structure plate welding new structural form design and manufacture, compact structure, light weight, easy to install, small flow resistance, large circulation, to avoid the impact of high temperature expansion, light operation.
  • No connecting rod, bolts, etc., reliable work, long service life. Can be installed in multiple stations, not affected by the flow of media.









DN125 Carbon Steel Butterfly Valve With EPDM Seal And Stainless Steel Plate For Ventilation 0

DN125 Carbon Steel Butterfly Valve With EPDM Seal And Stainless Steel Plate For Ventilation 1
