DN125 Electric Switch Type Butterfly Valve Carbon Steel Electric Valve

Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ~ 36 inch
Minimum Order Quantity 1 Set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Electric Industrial Butterfly Valve Application Industrial
Operation Electric Body Material Carbon Steel
Valve Core Stainless Steel Connection Clamp
Pressure PN16 Seal PTFE/EPDM
Size DN125 Temperature -20℃-135℃
High Light

Carbon Steel Electric Butterfly Valve


DN125 Electric Butterfly Valve


Electric Switch Type Butterfly Valve

Leave a Message
Product Description

DN125 Electric switch type butterfly valve Carbon steel electric valve


1. Description:


Stainless steel electric butterfly valve is widely used in metallurgy, chemical industry, building materials, power station, glass and other industries, for dust, cold air or hot air pipe ventilation and environmental protection projects.


Electric butterfly valves can also be used in food, pharmaceutical, textile, light industry, paper and other industries.


2. Specification:


FABIA Valve Parameter List
Valve type: DN125 Electric switch type butterfly valve Carbon steel electric valve
Size: 2 inch ~ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt /Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1~PN16
Temperature: -40℃~1000℃
Model: FB-D..........


3. Features:


  • Use of sealing structure: in the well-known butterfly valve technology, the sealing form is mostly sealed structure, and the sealing material is rubber, polytetrafluoroethylene and so on.
  • With high temperature resistance: due to the limitations of structural characteristics, it is not suitable for high temperature resistance, high pressure and corrosion resistance, wear resistance and other industries. A relatively advanced butterfly valve is a three-eccentric metal hard seal butterfly valve, the valve body and the valve seat are connected components, and the valve seat sealing surface layer is surfacing welded with temperature resistant and corrosion resistant alloy materials.
  • Easy to operate: multi-layer soft stacked sealing ring is fixed on the valve plate, this butterfly valve has high temperature resistance compared with the traditional butterfly valve, easy to operate.
  • Extend the service life: open and close without friction, close with the increase of the torque of the transmission mechanism to compensate for the seal, improve the sealing performance of the butterfly valve and extend the advantages of service life.

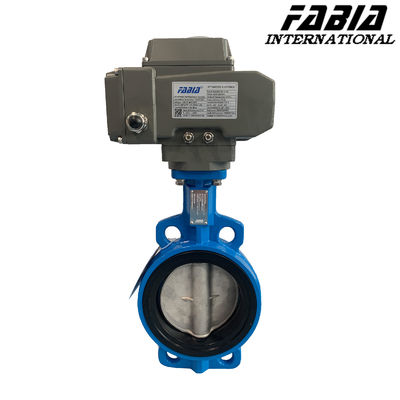

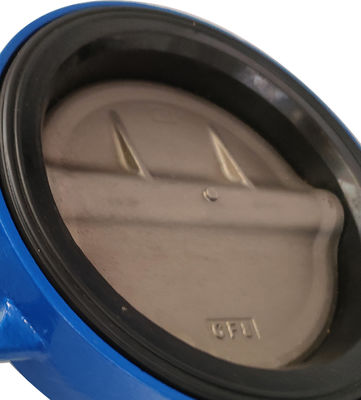

DN125 Electric Switch Type Butterfly Valve Carbon Steel Electric Valve 0

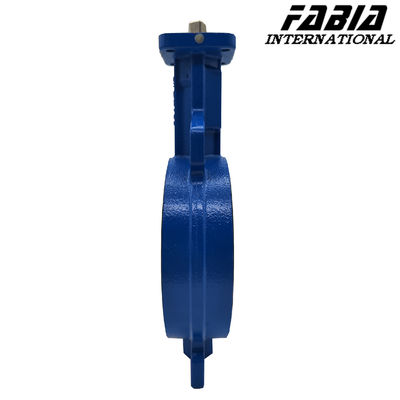

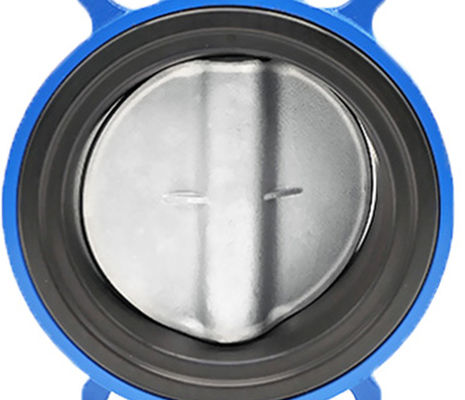

DN125 Electric Switch Type Butterfly Valve Carbon Steel Electric Valve 1
