Explosion-Proof Limit Switch With Pneumatic Actuator ITS-300
Place of Origin | China |
---|---|
Brand Name | FABIA |
Certification | ISO9001,CE,CCS,DNV |
Model Number | 1/8 inch ~ 36 inch |
Document | Product Brochure PDF |
Minimum Order Quantity | 1 set |
Price | Negotiable |
Packaging Details | Cartons/Wooden cases |
Delivery Time | 15-30 work days |
Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
Supply Ability | 100-1000 set per week |

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | ITS-300 | Type | Pneumatic Actuator |
---|---|---|---|
Material | Metal/non-metal | Application | Application |
Valve Structure | Pneumatic | Valve Pressure Rating | PN16 |
Size | DA32~350/SR52~350 | Temperature | -20-260℃ |
Highlight | Explosion-Proof Limit Switch,Pneumatic Actuator Limit Switch |

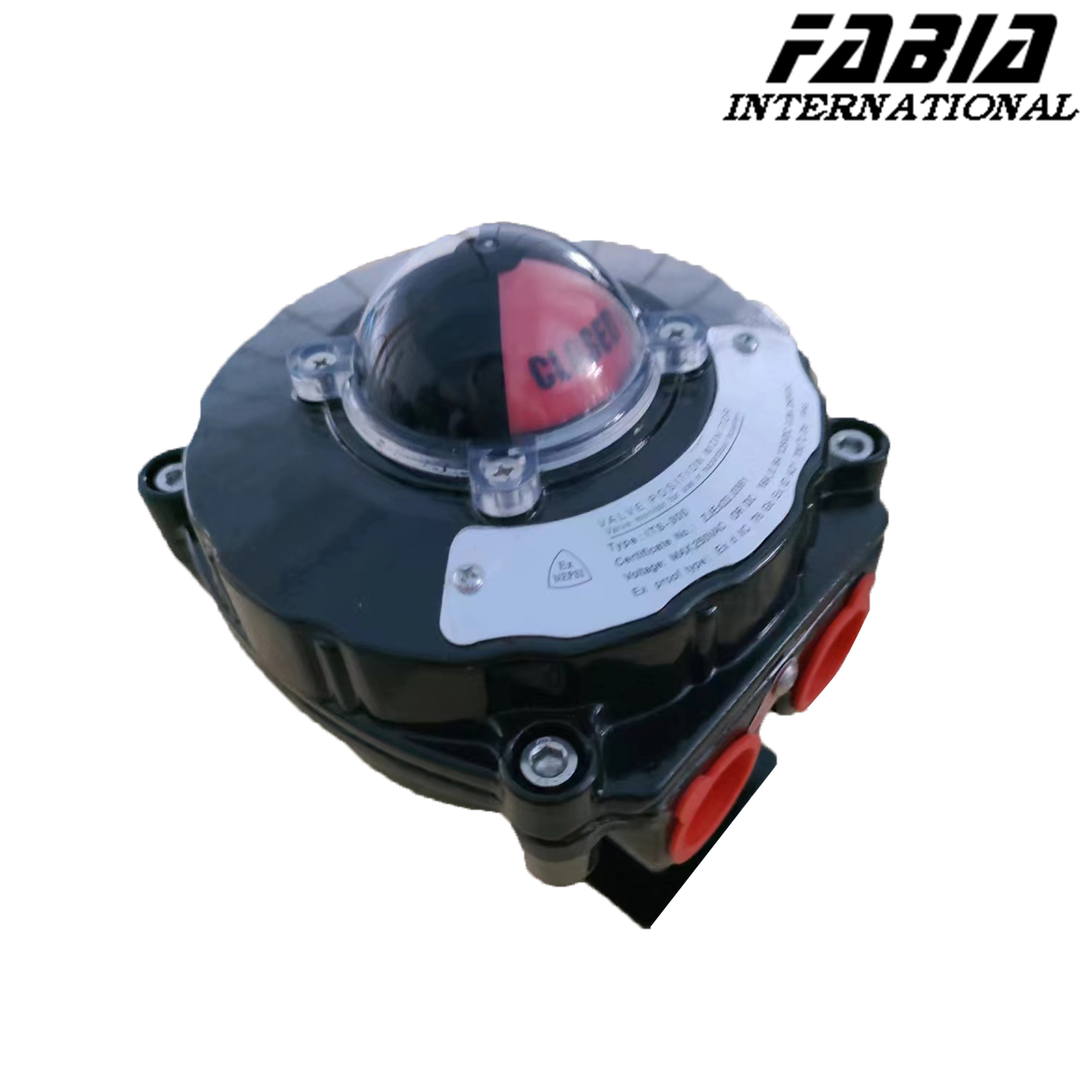

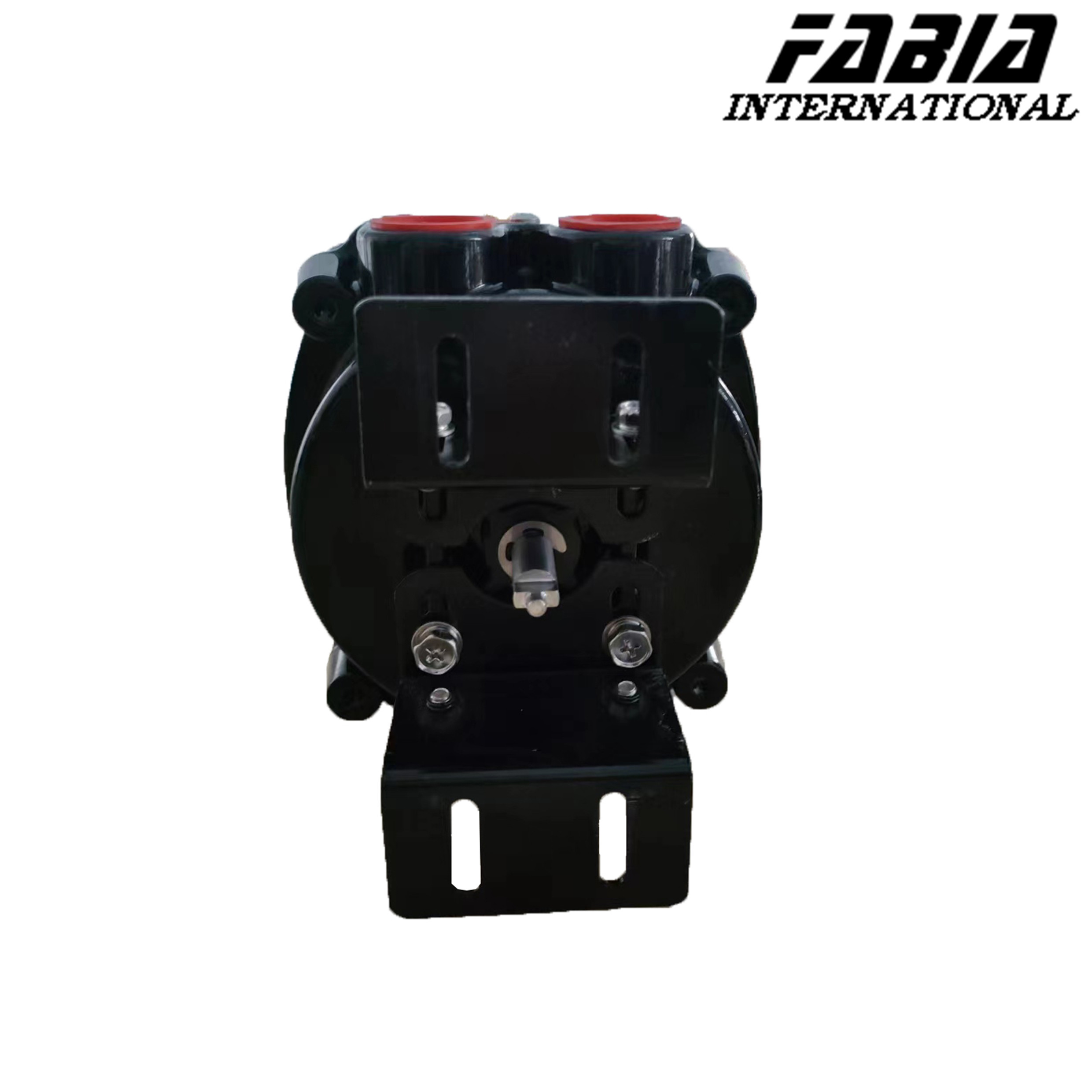

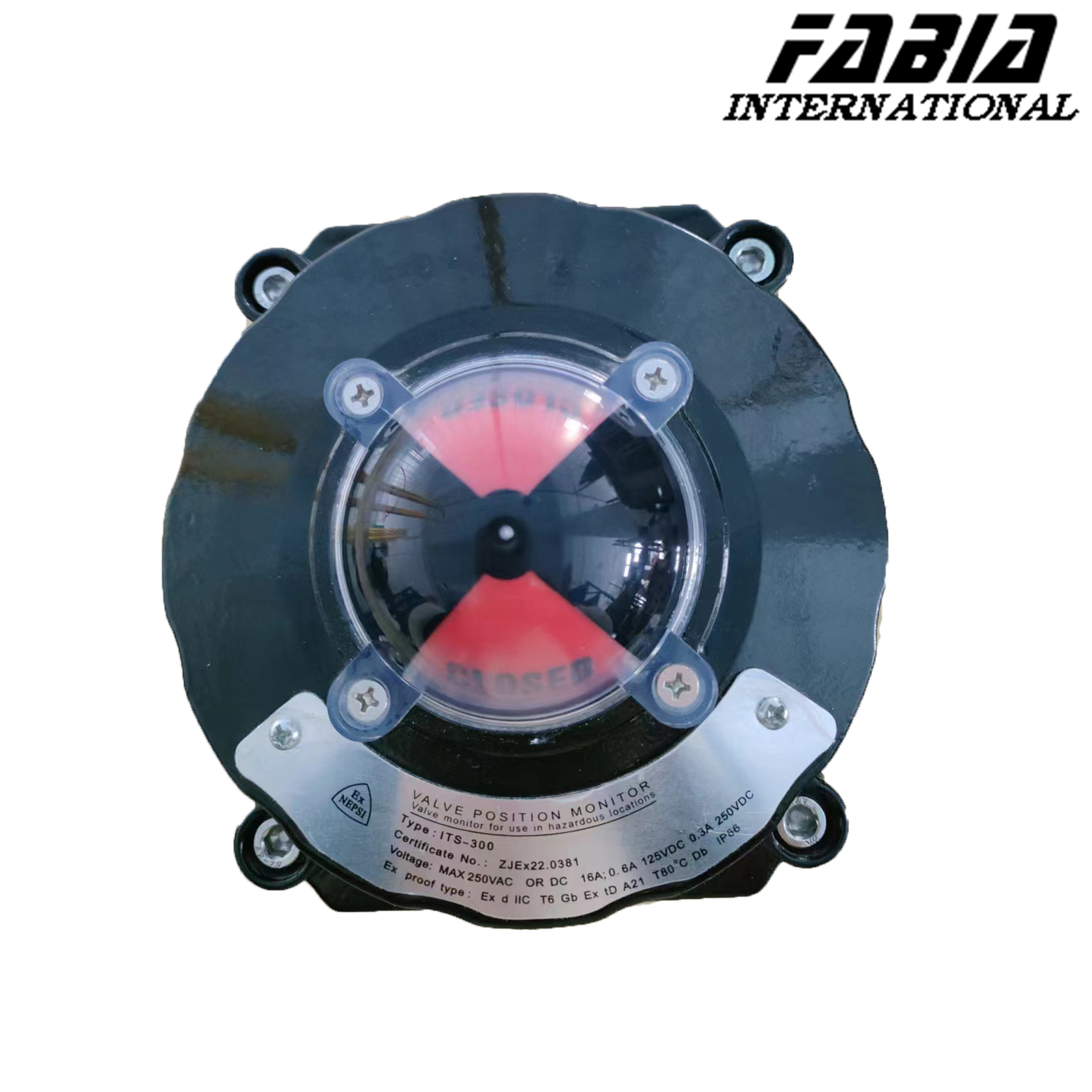

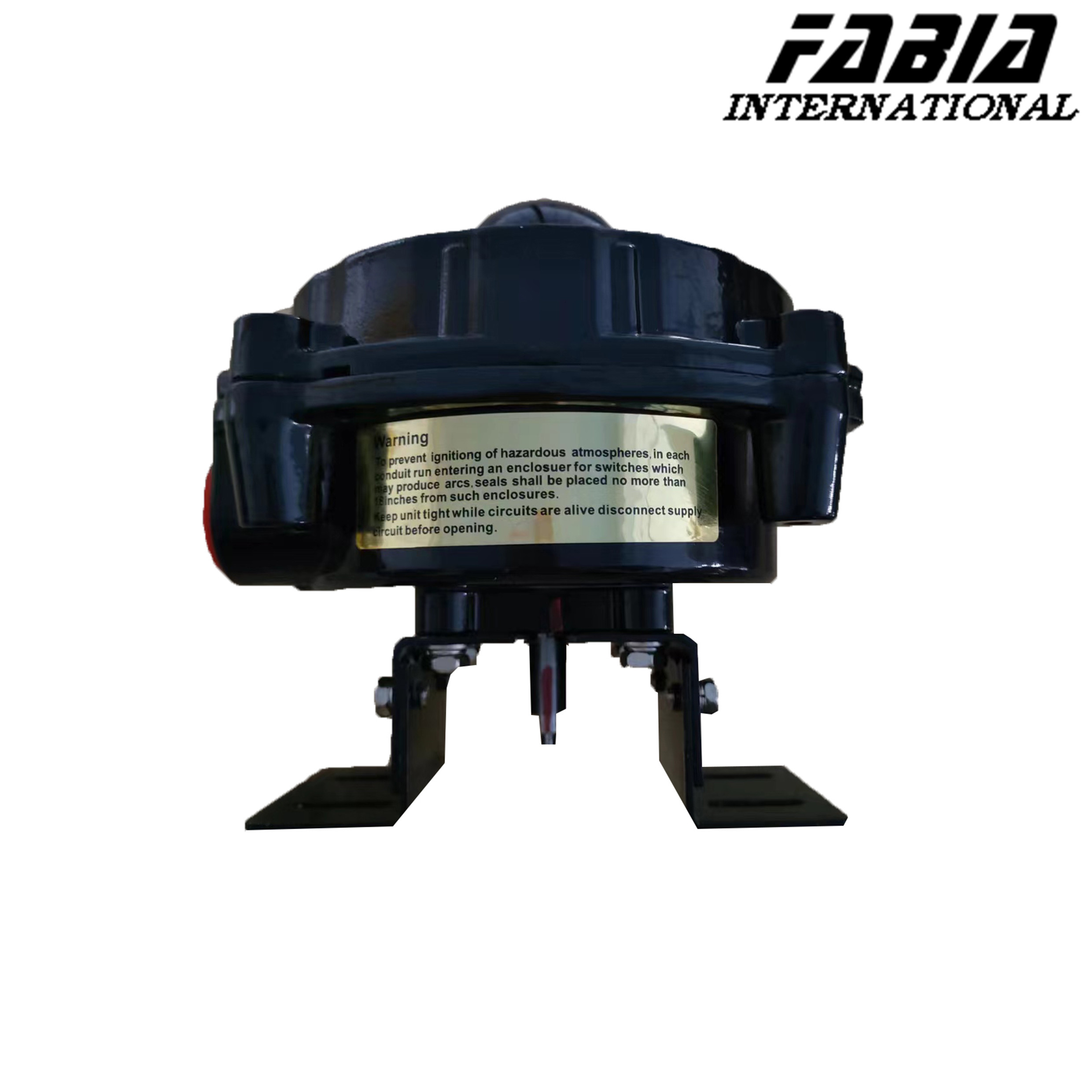

Explosion-Proof Limit Switch With Pneumatic Actuator ITS-300
1. Description:
The limit switch controller is explosion-proof and corrosion-proof, and can work reliably in dangerous environments.
Long service life, high quality and reliability.
2. Specification:
FABIA Valve Parameter List | ||
Valve type: | Explosion-Proof Limit Switch With Pneumatic Actuator ITS-300 | |
Size: | APL-510N | |
Material: | Metal/non-metal | |
Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
Driving model: | Pneumatic/DA/SR | |
Pressure rating: | PN1.0~PN64,ANSI CLASS 150-900,JIS10-20K; | |
Temperature: | -20℃~260℃ | |
Model: | FB-E.......... |
3. Features:
- Indicator is intuitive and eye-catching, waterproof and reliable;
- Fast position "CAM through the spline shaft and spring installation, can be easily adjusted without tools;
- Multi-contact terminal block, there are 8 standard contacts, wiring safe and convenient;
- Standard double wire interface;
- Equipped with anti-stripping bolts, the screw attached to the above will not fall off when disassembling
