Large Diameter Industrial Butterfly Valve Carbon Steel Pneumatic Valve

Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ~ 48 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Ventilation Butterfly Valve Valve Body Carbon Steel
Valve Feature High Performance Valve Application Ventilation
Valve Standard ANSI, API, DIN, JIS Actuator Type Pneumatic
Valve Connection Flanged Valve Pressure Rating 150-300 Psi
Valve Sealing Soft Size DN50-DN1200
Leave a Message
Product Description

Large Diameter Industrial Butterfly Valve Carbon Steel Pneumatic Valve



1. Description:



Pneumatic flange type ventilated butterfly valve is installed in the diameter direction of the pipe. It has the advantages of simple structure, small volume, light weight and convenient installation size. The main disadvantage is poor sealing (opening and closing torque is large), and its connection mode is flange type.



2. Specification:



FABIA Valve Parameter List
Valve type: Large Diameter Industrial Butterfly Valve Carbon Steel Pneumatic Valve
Size: 1/8 inch ~ 18 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt clamp/flange connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN10,0~100Mpa
Temperature: -40℃~450℃
Model: FB-DB..........



3. Features

  • The purpose of the ventilation butterfly valve: used in the sulfuric acid industry gas pipeline or equipment for regulating flow and load cut-off body use.
  • The structure principle of the ventilation disc valve: by the cock body, spring, actuator composed. Under the drive of the electric control device, the 90° rotation action is completed and the role of opening and closing is achieved. The pneumatic valve uses the double acting cylinder as the power source, and realizes the contactless gas control operation through the electromagnetic clutch.
  • The characteristics of the ventilation disc valve: This product is mainly used in industrial pipelines can be installed at any Angle and telescopic circular diameter of different media valve switching and control. It is suitable for the discharge system of acid corrosive gases in petroleum, chemical, metallurgy and other industries and the use requirements of other special working conditions.

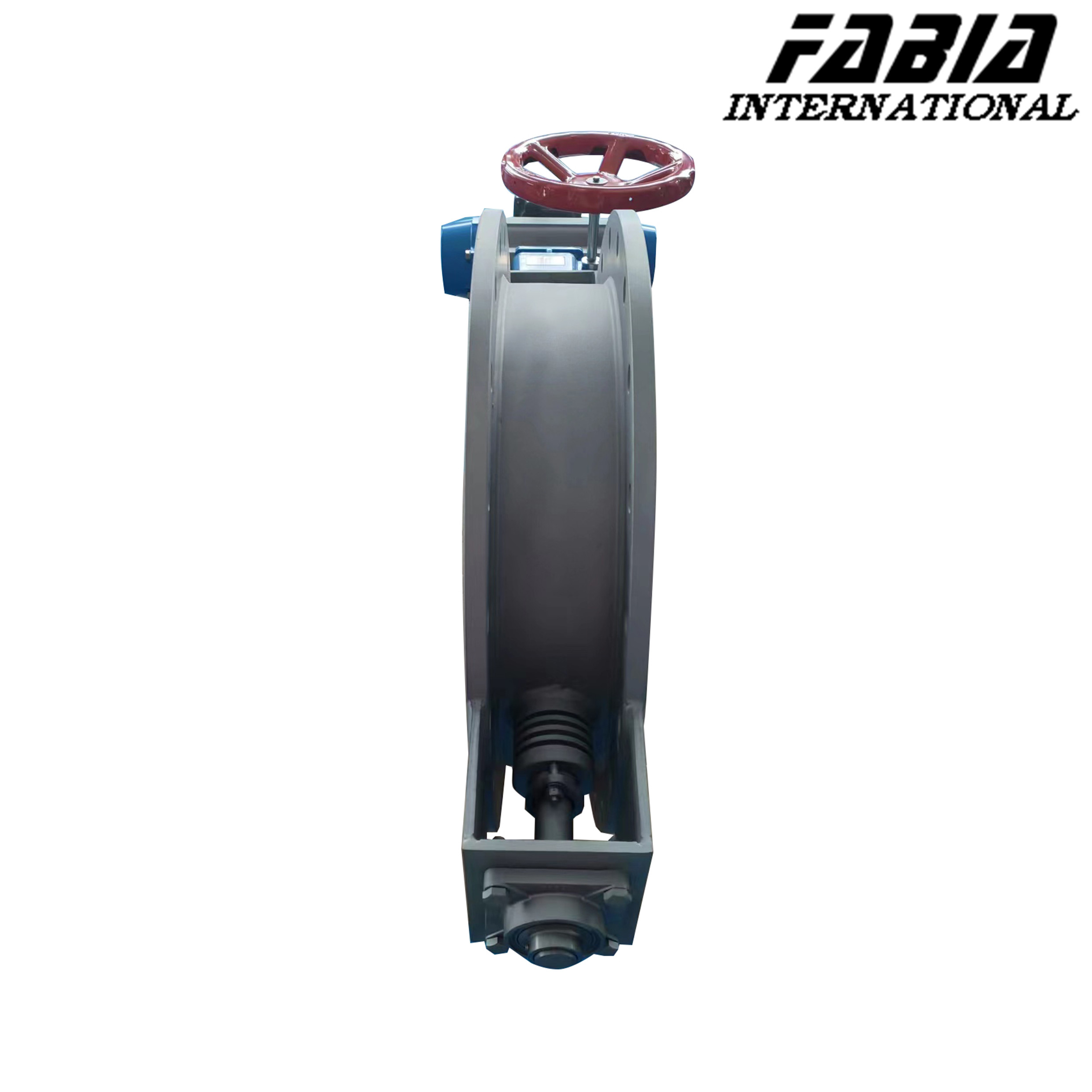

Large Diameter Industrial Butterfly Valve Carbon Steel Pneumatic Valve 0

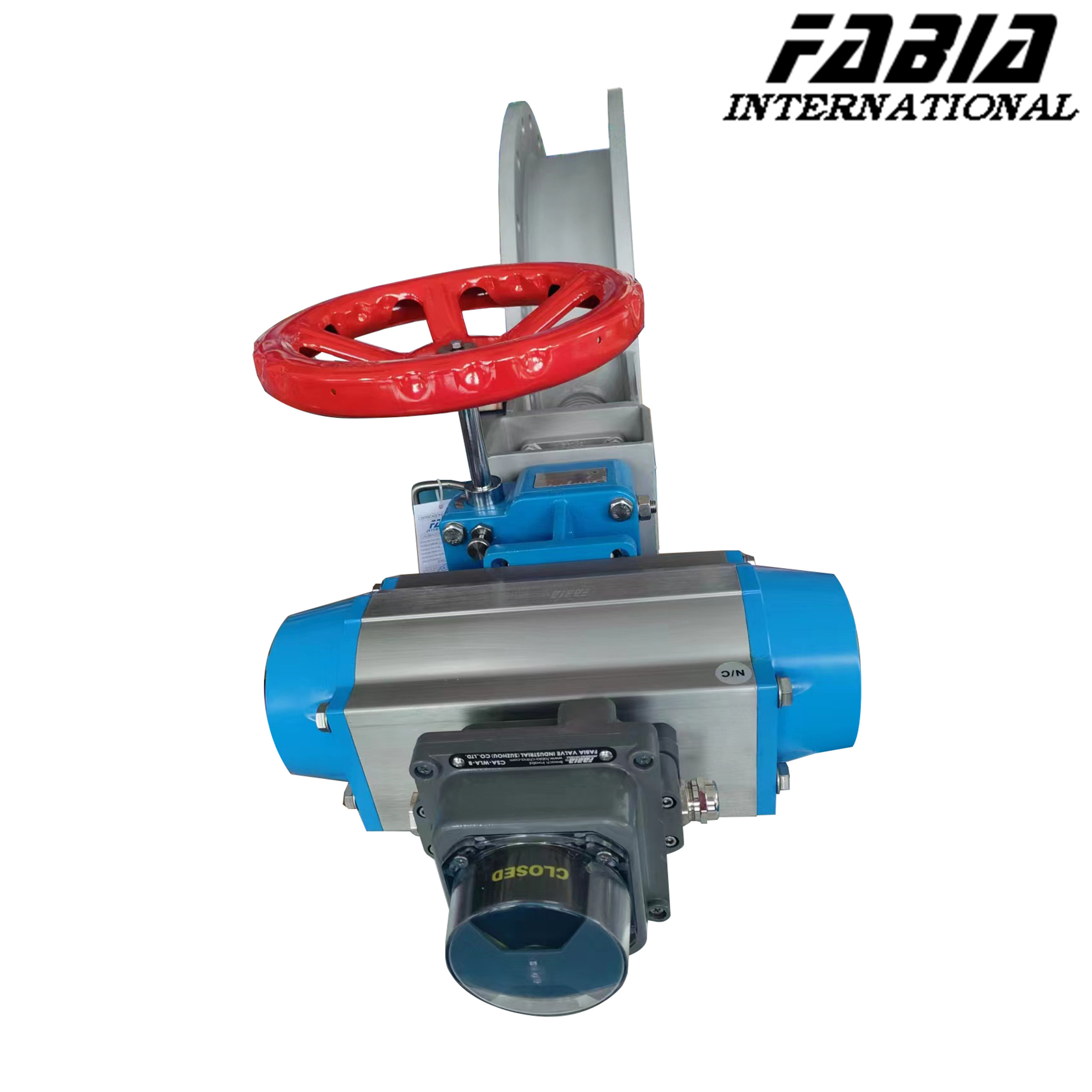

Large Diameter Industrial Butterfly Valve Carbon Steel Pneumatic Valve 1
