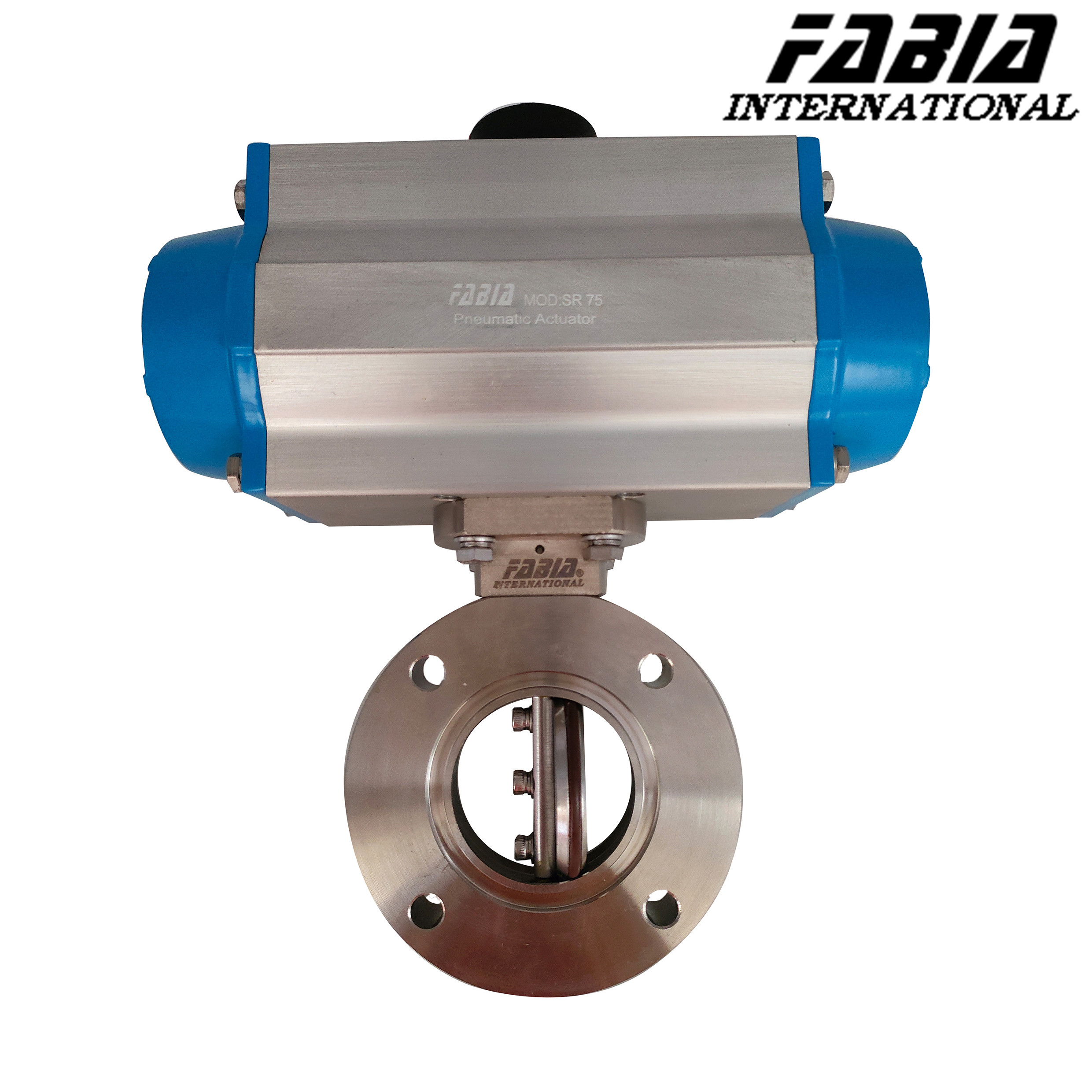

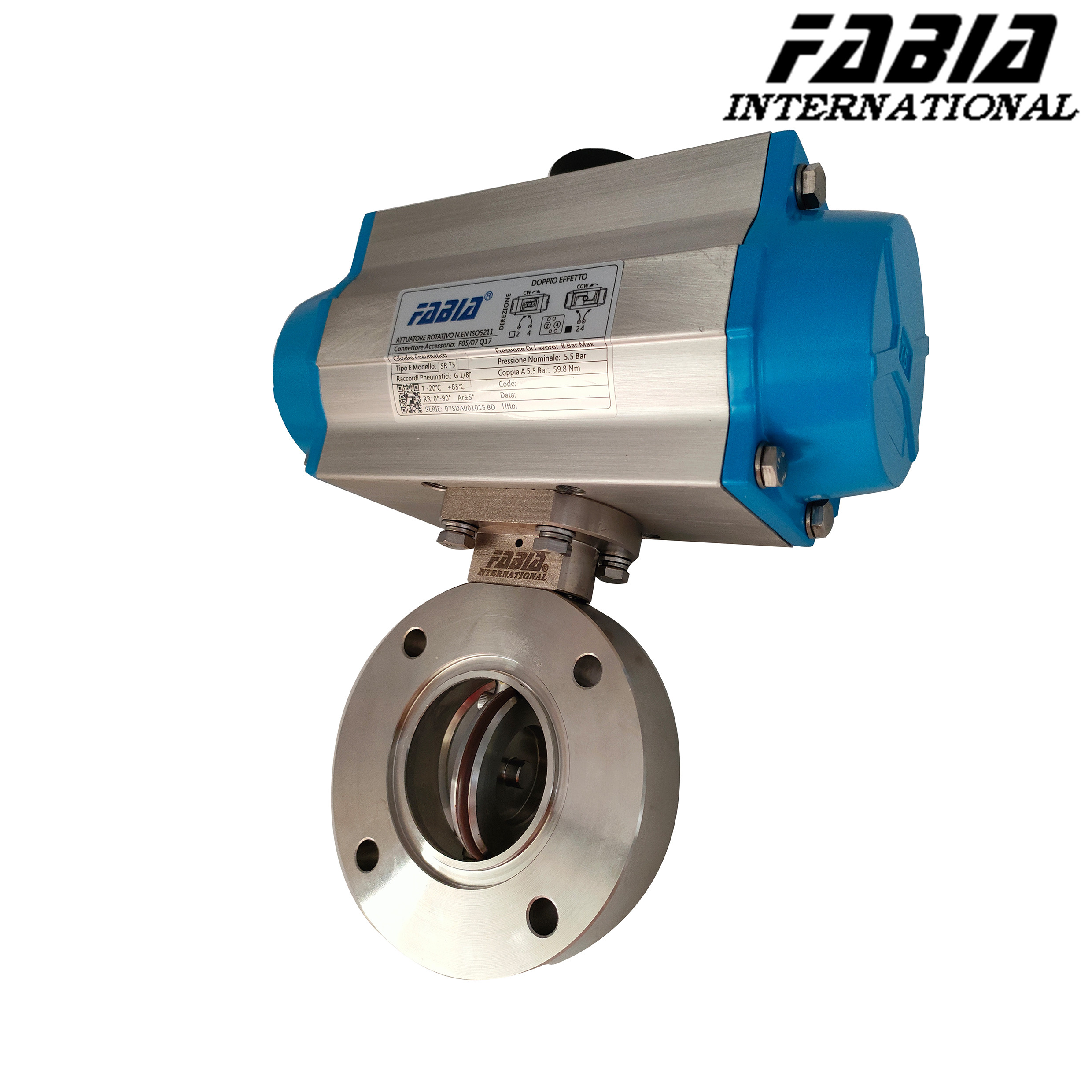

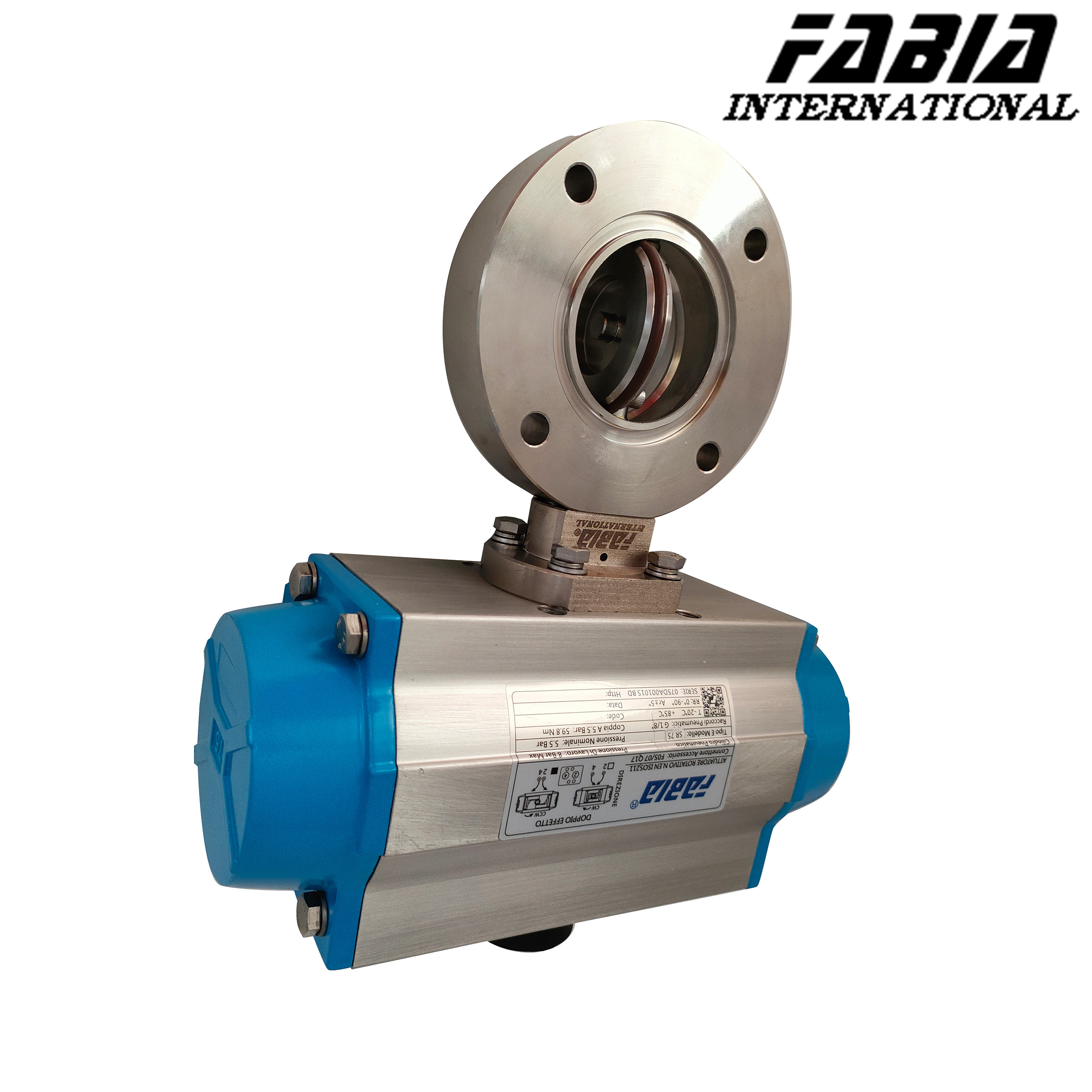

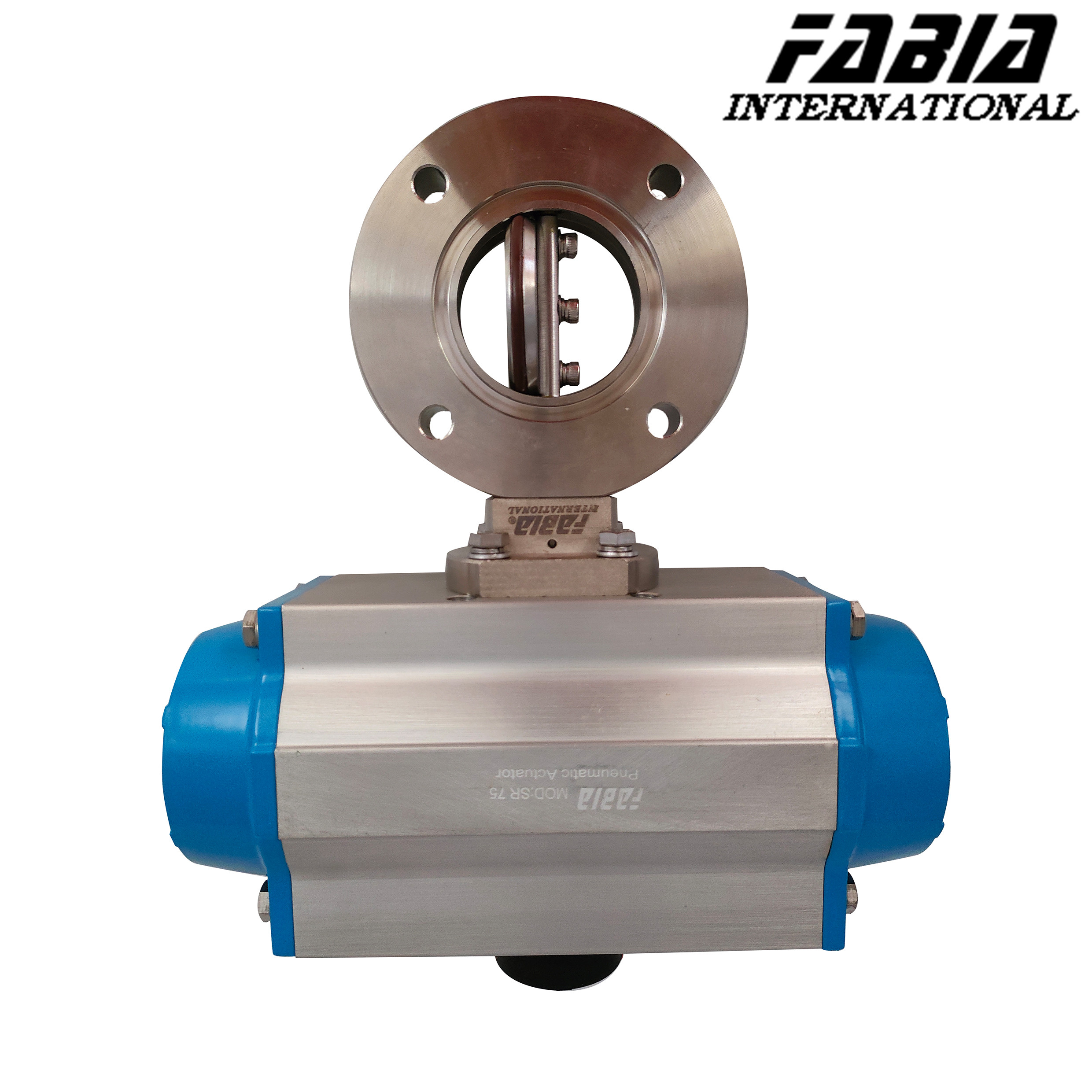

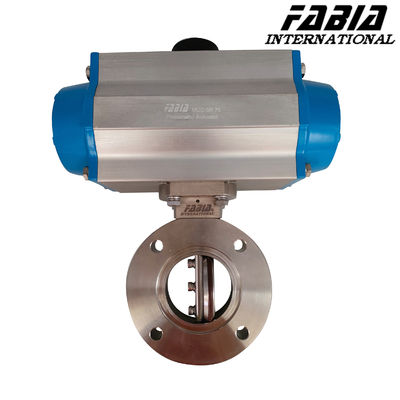

Pneumatic Hard Seal To Clamp Butterfly Valve Stainless Steel
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pneumatic Hard Seal Butterfly Valve | Valve Type | Pneumatic Butterfly Valve |
|---|---|---|---|
| Material | Stainless Steel | Valve Operation | Pneumatic |
| Valve Application | Industrial | Connection | Flanged |
| Valve Pressure Rating | PN16 | Valve Seat Material | Hard Seal |
| Valve Size | DN50 | Valve Temperature Rating | -30℃~+150℃ |
Product Description
Pneumatic Hard Seal To Clamp Butterfly Valve Stainless Steel
1. Description:
Pneumatic butterfly valve plays an important role in the chemical industry and can be used to control the flow and pressure of various liquids, gases and steam, and the stability and safety of the chemical process.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pneumatic Hard Seal To Clamp Butterfly Valve Stainless Steel | |
| Size: | 2 inch ～ 36 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt /Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN0.1～PN16 | |
| Temperature: | -40℃～1000℃ | |
| Model: | FB-D.......... | |
3. Features:
- Main advantages of butterfly valve, simple structure, small size, light weight, low cost, the characteristics of the pneumatic disc valve is especially significant, installed in the high-altitude tunnel, through the two five-way solenoid valve control operation is convenient, but also can adjust the flow medium.
- Small fluid resistance, large diameter pneumatic butterfly valve fully open when the effective flow area is large, quick and labor-saving, butterfly valve plate rotation 90 Angle can complete the opening and closing, because the two sides of the rotating shaft butterfly plate hand medium force is close to equal, and the torque generated in the opposite direction, so the opening and closing torque is small, low pressure can achieve a good seal.
- Hard seal disc valve is a soft and hard laminated metal sheet with the heavy advantages of metal hard seal and elastic seal, which can have excellent sealing performance even at low temperature.
