Electric Hard Seal Industrial Butterfly Valve Large Diameter
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Electric Hard Seal Industrial Butterfly Valve | Structure | Industrial Butterfly |
|---|---|---|---|
| Temperature | High Temperature | Pressure | High Pressure |
| Sealing | Metal Seal | Material | Carbon Steel |
| Actuator | Electric | Connection | Flange |
| Pressure Rating | 150-2500psi | Size | 1/2-36 Inch |
| Temperature Rating | -40-1000℃ | Media | Water/oil/gas |
| Standard | ANSI/DIN/JIS/BS | Application | Petroleum, Chemical, Power, Etc |
| High Light | Hard Seal Industrial Butterfly Valve,large butterfly valves,large diameter butterfly valves |
||
Product Description

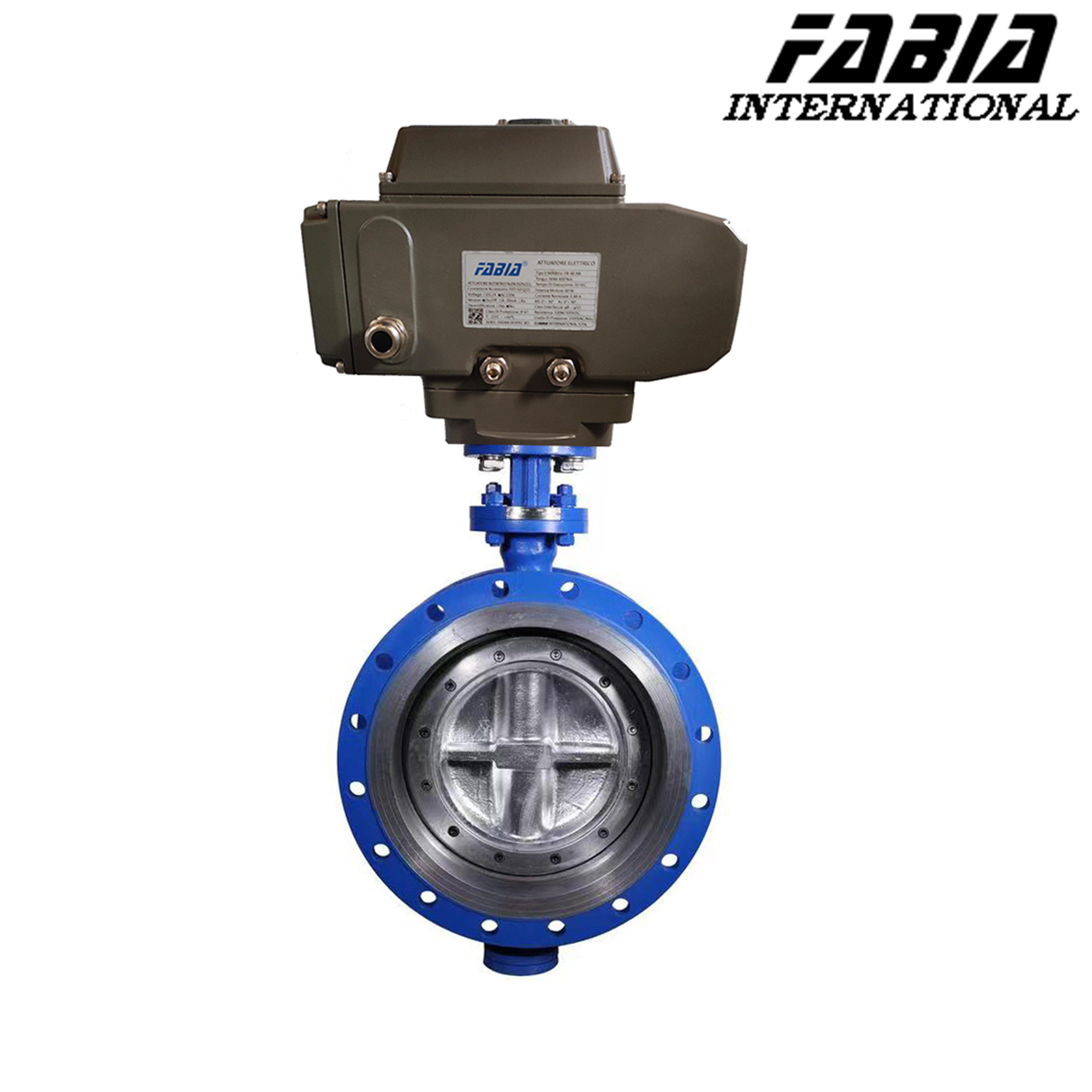

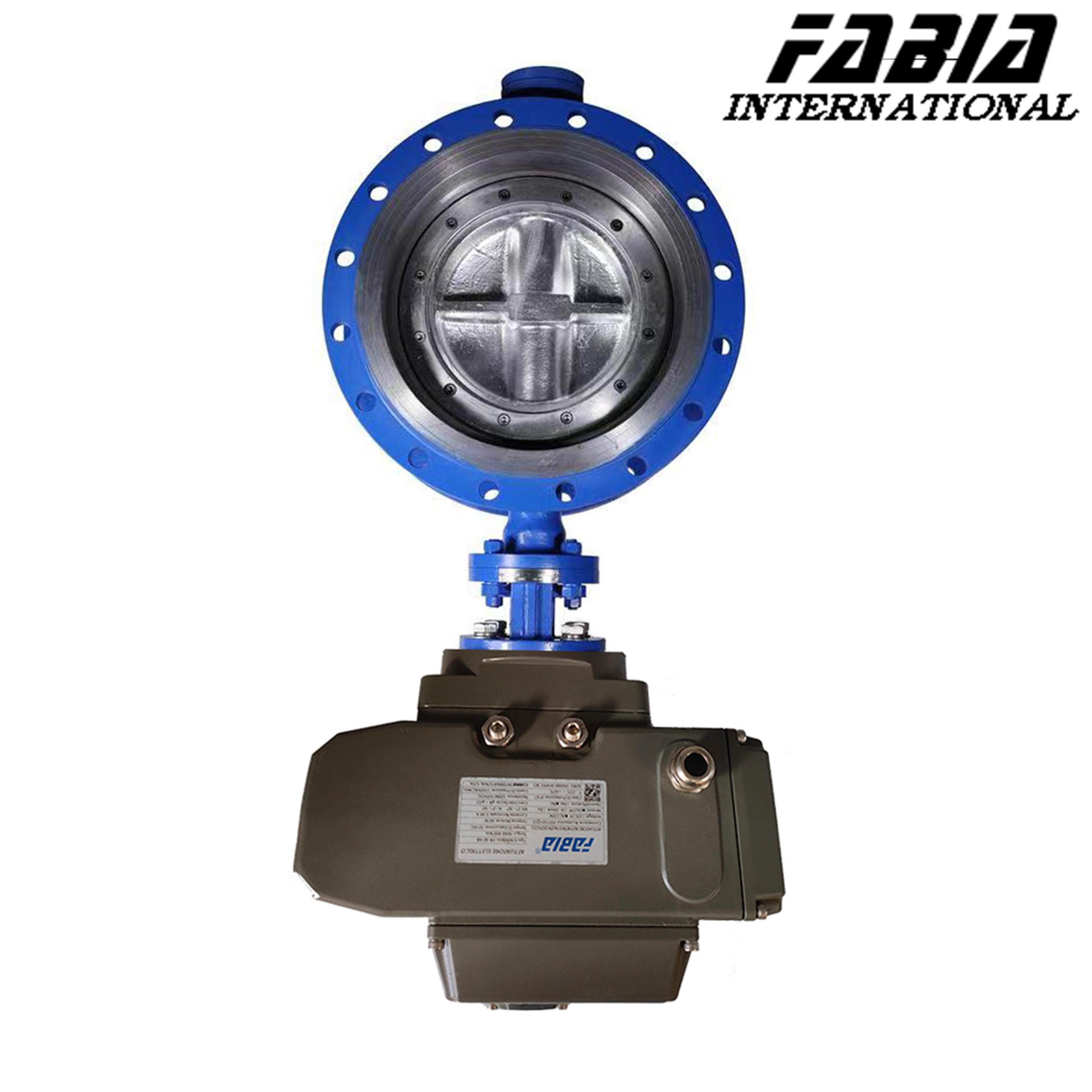

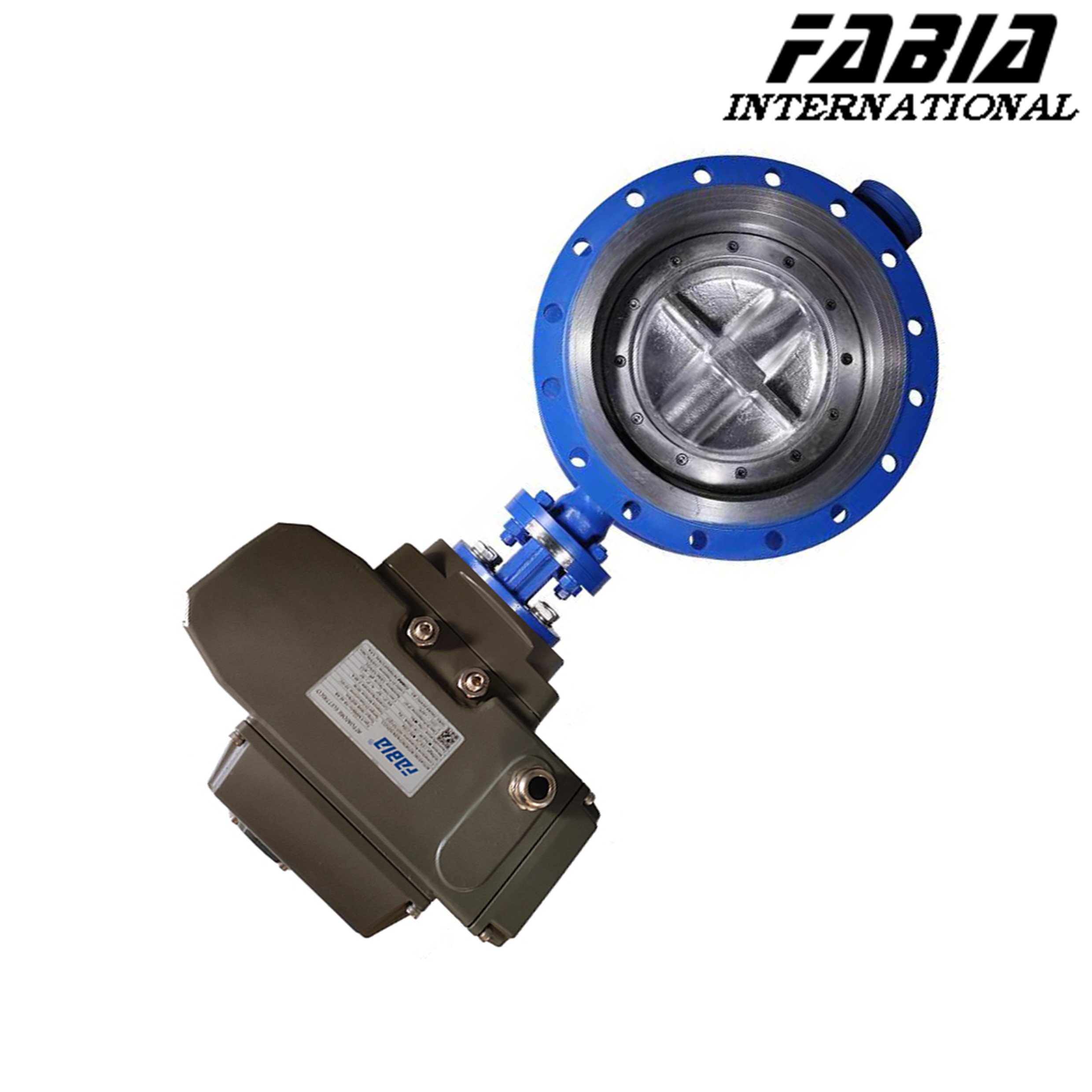

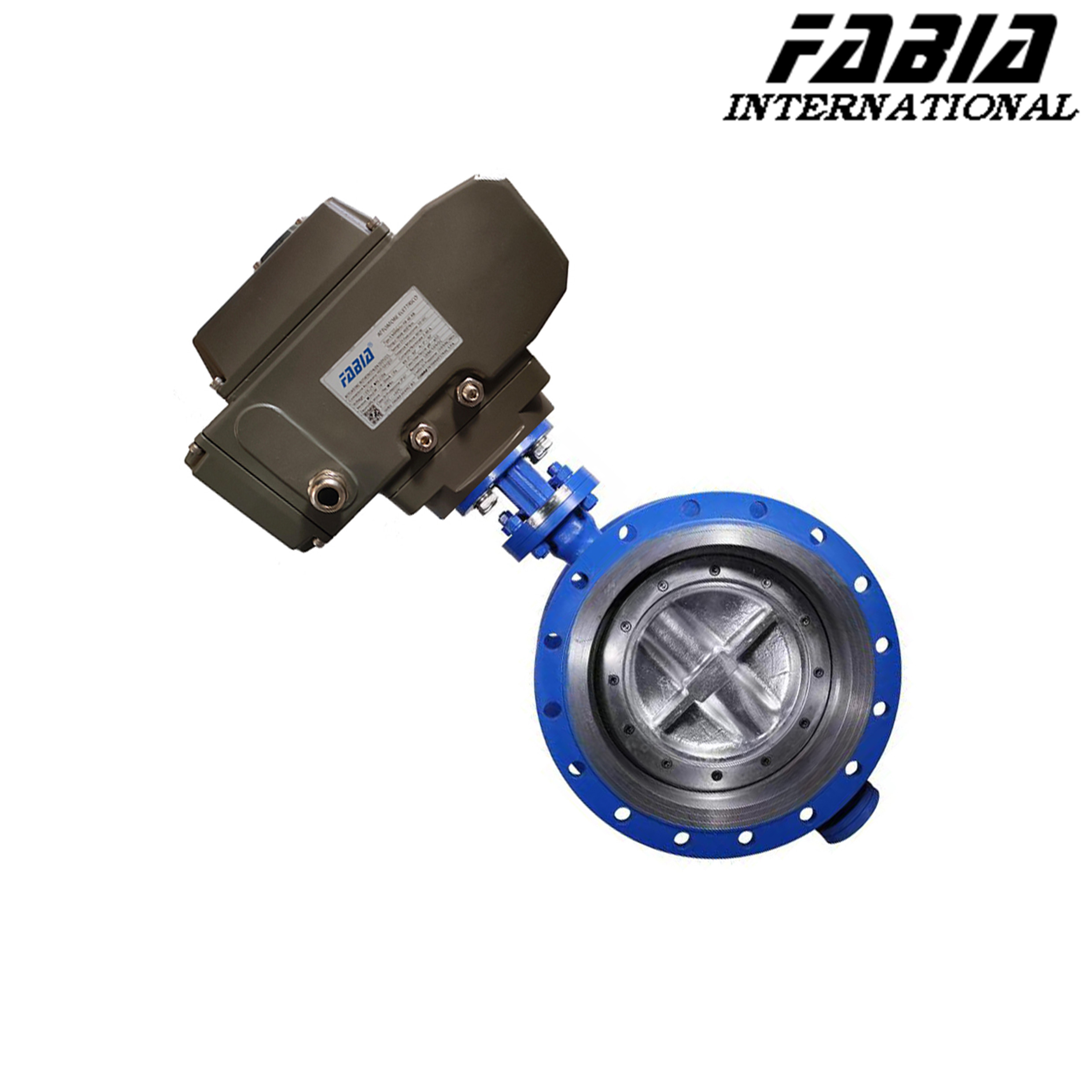

FABIA Electric hard seal industrial butterfly valve large diameter
1. Description:
Structure principle of hard sealed butterfly valve is especially suitable for the production of large diameter valves.
Hard sealed butterfly valve is not only widely used in petroleum, gas, chemical industry, water treatment and other general industry, but also used in the cooling water system of thermal power station.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric hard seal industrial butterfly valve large diameter | |
| Size: | 2 inch ～ 36 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt /Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN0.1～PN16 | |
| Temperature: | -40℃～1000℃ | |
| Model: | FB-DB.......... | |
3. Features:
- Hard-sealed butterfly valve is simple in structure, small in size, light in weight, and consists of only a few parts.
- And only need to rotate 90° to quickly open and close, the operation is simple, and the electric valve has good fluid control characteristics.
- When the butterfly valve is in the fully open position, the thickness of the butterfly plate is the only resistance when the medium flows through the valve body, so the pressure drop generated by the valve is small, so it has better flow control characteristics.
- Butterfly valves have two types of seal: bullet seal and metal seal. Elastomeric sealing valve, the sealing ring can be mounted on the valve body or attached to the periphery of the disc.
