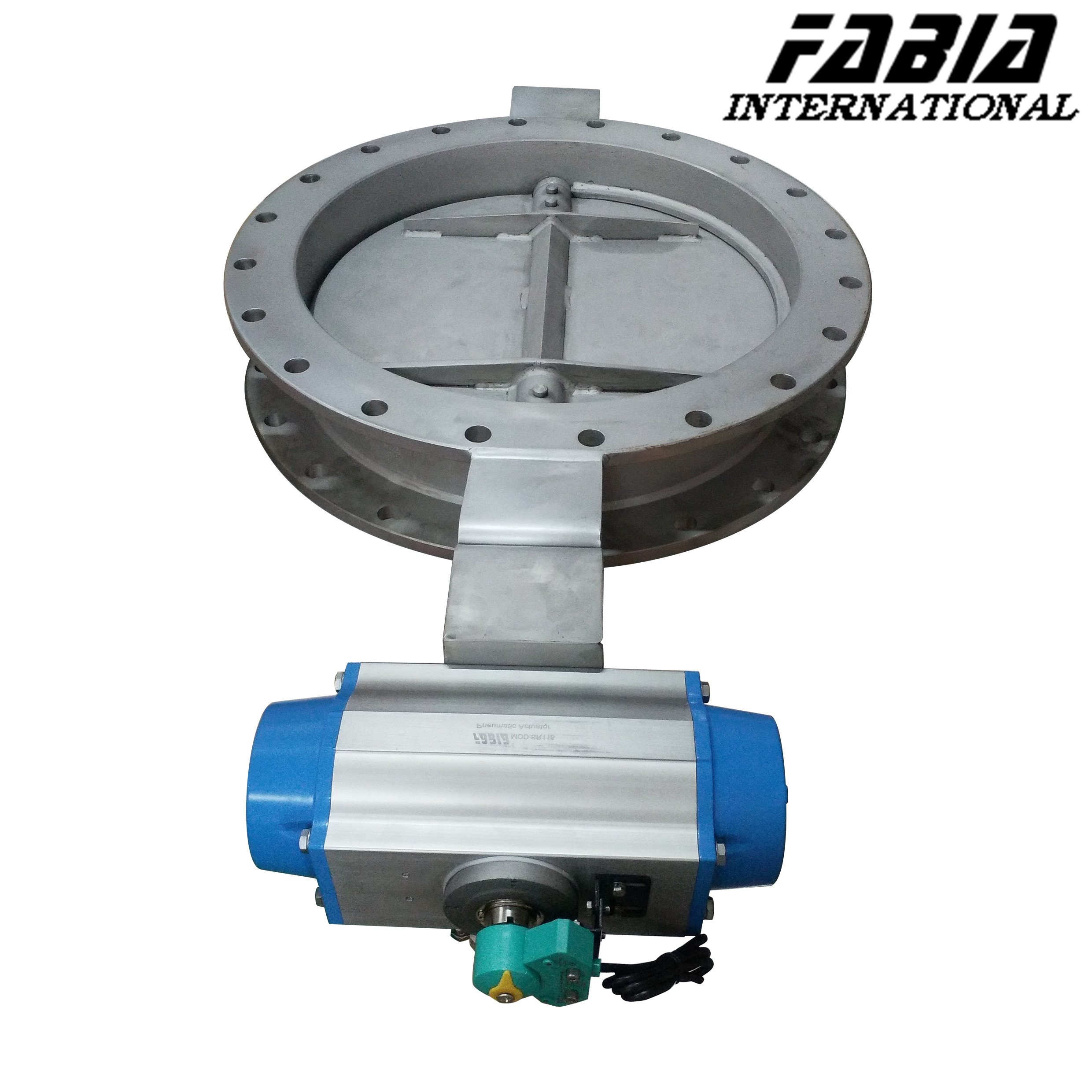

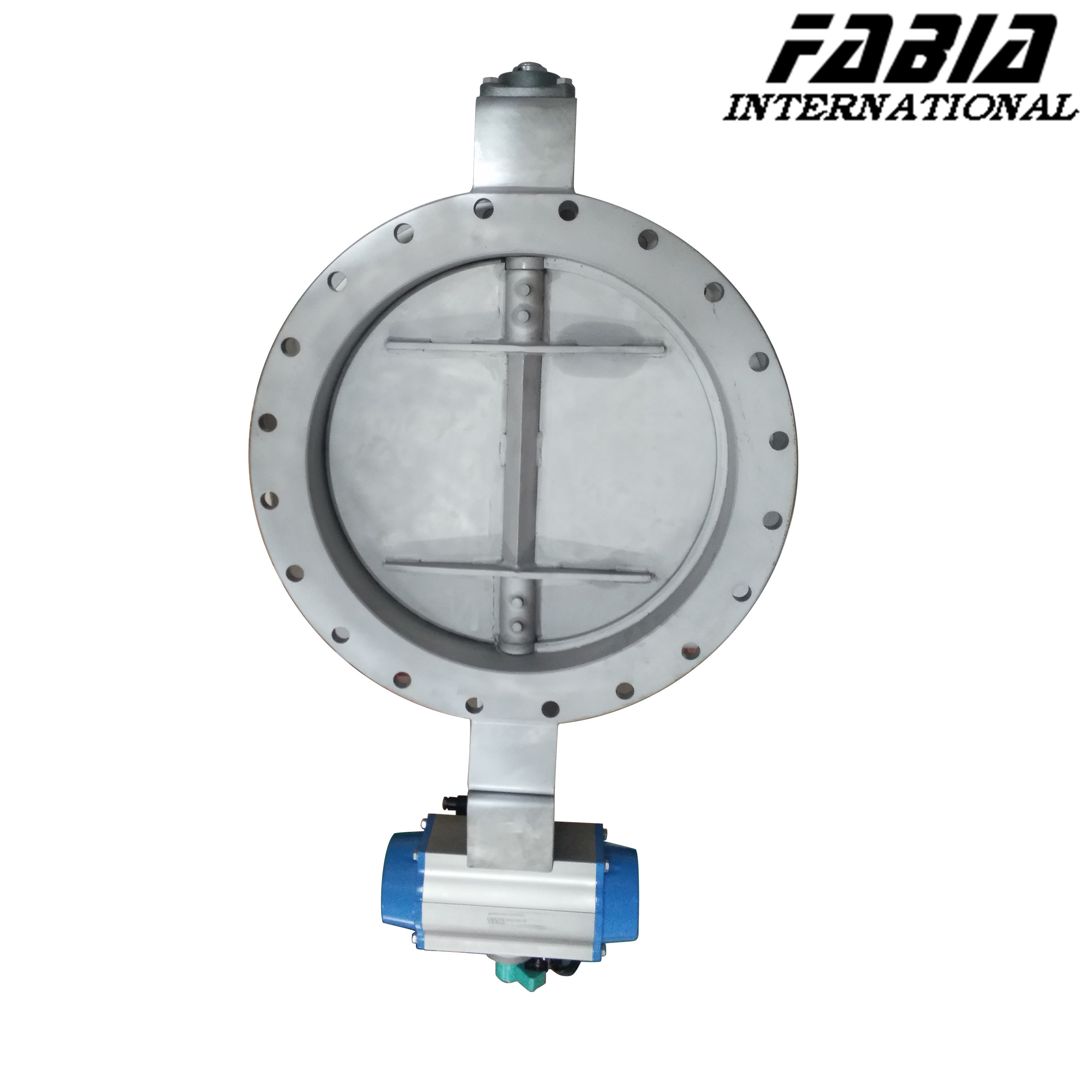

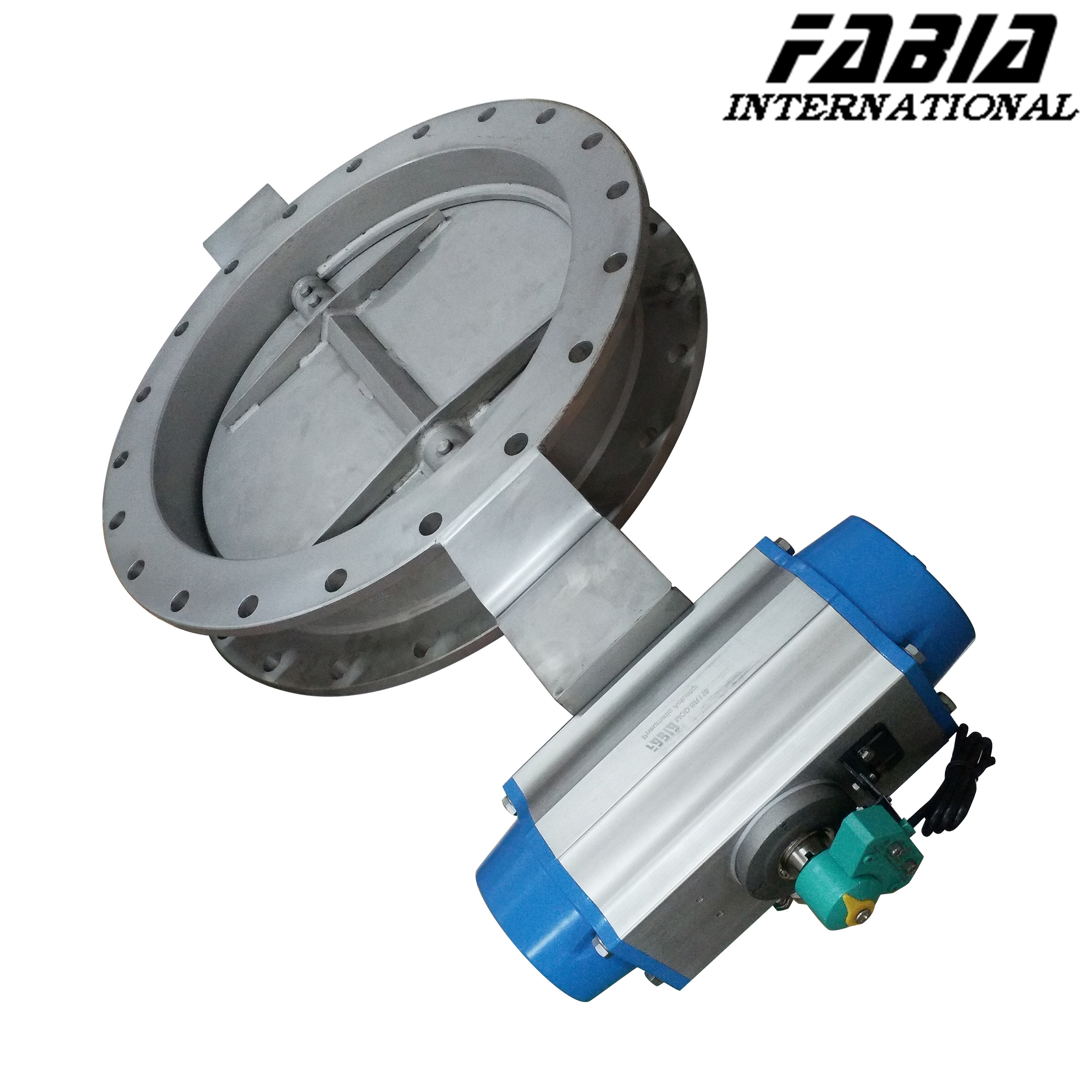

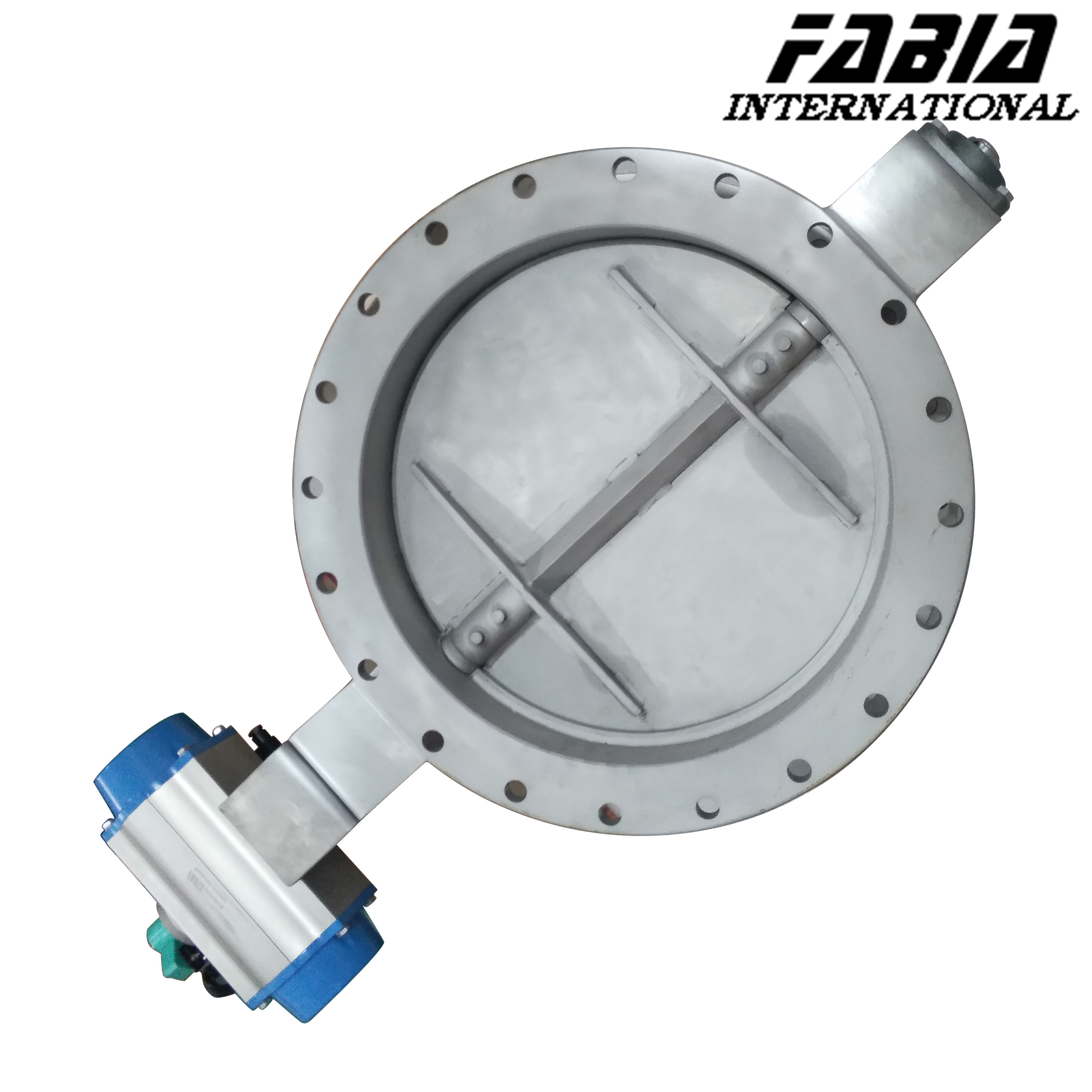

Pneumatic Control Flange Butterfly Valve Flange End
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Product Details
| Product Name | Pneumatic Flange Butterfly Valve | Valve Type | Butterfly |
|---|---|---|---|
| Material | Stainless Steel | Valve Operation | Pneumatic |
| Valve Connection | Flange | Valve Application | Petroleum, Chemical, Power, Etc. |
| Valve Sealing | Flange | Valve Pressure | PN16 |
| Valve Temperature | -40℃~+135℃ | ||
| Highlight | butterfly valve flange end,flange end butterfly valve,pneumatic butterfly |
||
Product Description
FABIA Pneumatic Control Flange Butterfly Valve
1. Description:
Pneumatic flange extension control valve is mainly used in petrochemical, metallurgy, electric power, light industry and other industries of different types, different nature of the medium pipeline and equipment.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pneumatic Control Flange Butterfly Valve | |
| Size: | 2 inch ～ 36 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt Clamp/Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN0.1～PN16 | |
| Temperature: | -40℃～1000℃ | |
| Model: | FB-D.......... | |
3. Features:
- Main characteristics of the pneumatic flange adjustment butterfly valve are high control accuracy.
- Fast adjustment speed, flexible reversing, low noise, easy maintenance, etc.
- Also has good applicability to pipelines and equipment under high temperature, high pressure, corrosion and other harsh conditions.
- Traditional valves require manual control or the use of equipment such as motors during use.
- While pneumatic flanged butterfly valves can automatically adjust the flow by connecting to the air pressure control device.
