Soft Seal Pneumatic Butterfly Valve Flanged type

Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ~ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Pneumatic Flanged Butterfly Valve Valve Type Butterfly
Valve Material Carbon Steel Valve Operation Pneumatic
Valve Connection Flanged Valve Application Petroleum, Chemical, Power, Etc.
Valve Body Carbon Steel Valve Pressure 1.6MPa
Valve Seat NBR Valve Temperature -30℃~+120℃
High Light

butterfly valve flanged type


Soft Seal Pneumatic Butterfly Valve


Pneumatic Butterfly Valve Flanged type

Leave a Message
Product Description

FABIA Soft Seal Pneumatic Flanged Butterfly Valve


1. Description:


Pneumatic flanged soft seal butterfly valve is composed of a pneumatic actuator and a flanged soft seal butterfly valve, which is suitable for regulating the flow and stopping the medium on the water supply and drainage pipe of food, medicine, chemical industry, petroleum, electric power, textile, paper making and other gas pipes with the temperature ≤120℃ and nominal pressure ≤1.6MPa.


2. Specification:


FABIA Valve Parameter List
Valve type: Pneumatic Control Flange Butterfly Valve
Size: 2 inch ~ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1~PN16
Temperature: -40℃~1000℃
Model: FB-D..........


3. Features:


  • Good two-way sealing performance, small torque value.
  • Flow characteristics tend to be straight, good adjustment performance.
  • Flange connection installation is convenient, vertical, horizontal installation can be.
  • Diversity of sealing materials, available for users to choose.
  • Can be used for pipe end as a vent valve, reliable performance.
  • Valve seat sealing ring is organically combined with the valve body to make the valve have a long service life.
  • Flange type soft seal butterfly valve design is simple, reasonable, compact structure, light weight, fast opening and closing.
  • Small torque, easy to operate, labor-saving dexterity.
  • Can be installed in any position, easy maintenance.
  • Seal can be replaced, sealing to achieve bi-directional sealing zero leakage.
  • Sealing material aging resistance, long service life, etc.

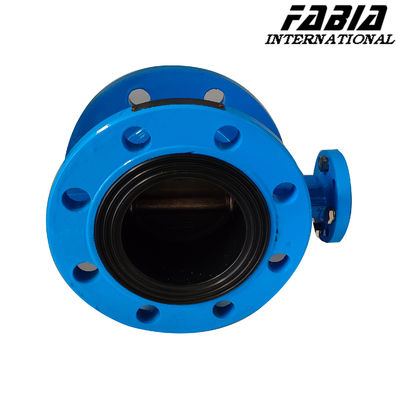

Soft Seal Pneumatic Butterfly Valve Flanged type 0

Soft Seal Pneumatic Butterfly Valve Flanged type 1
