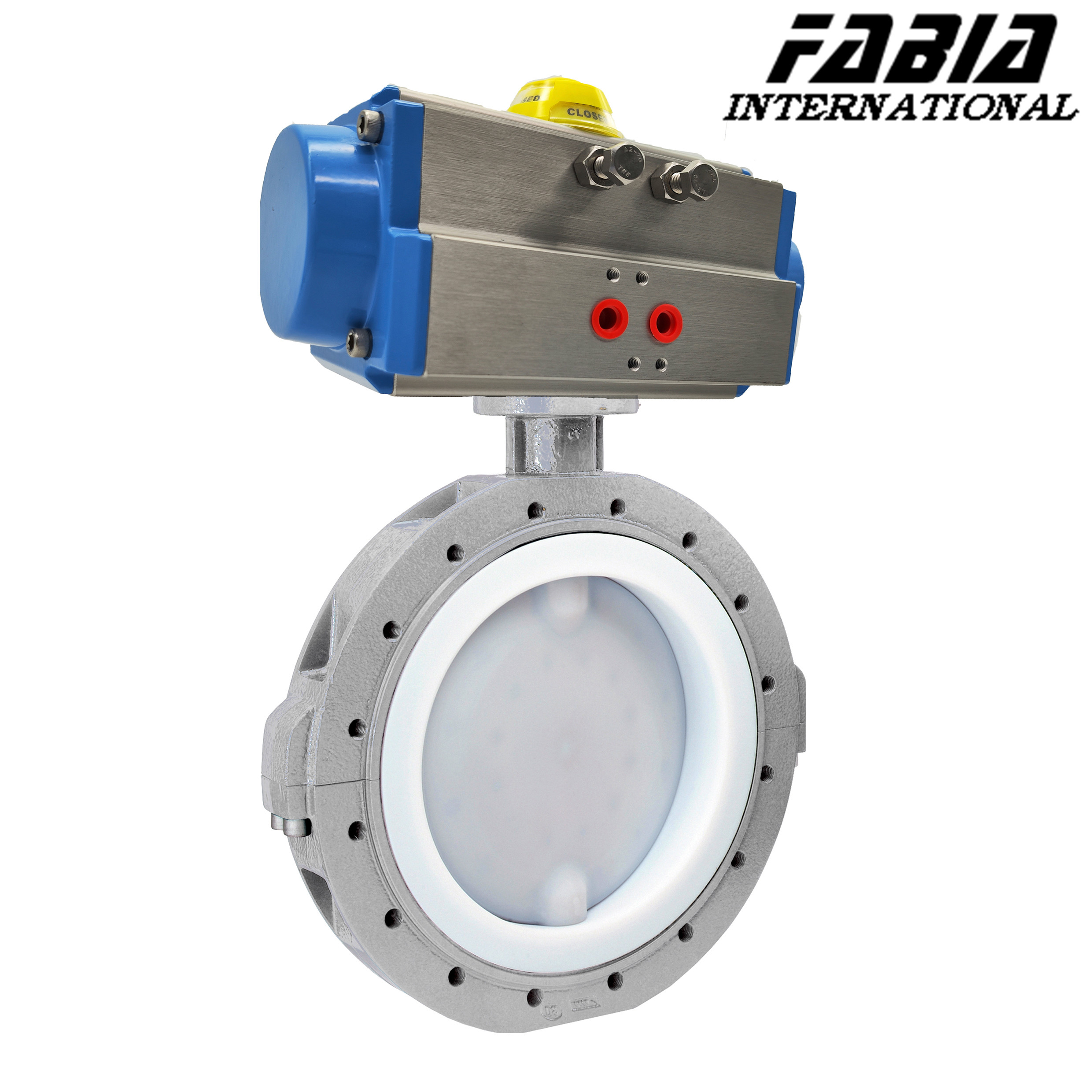

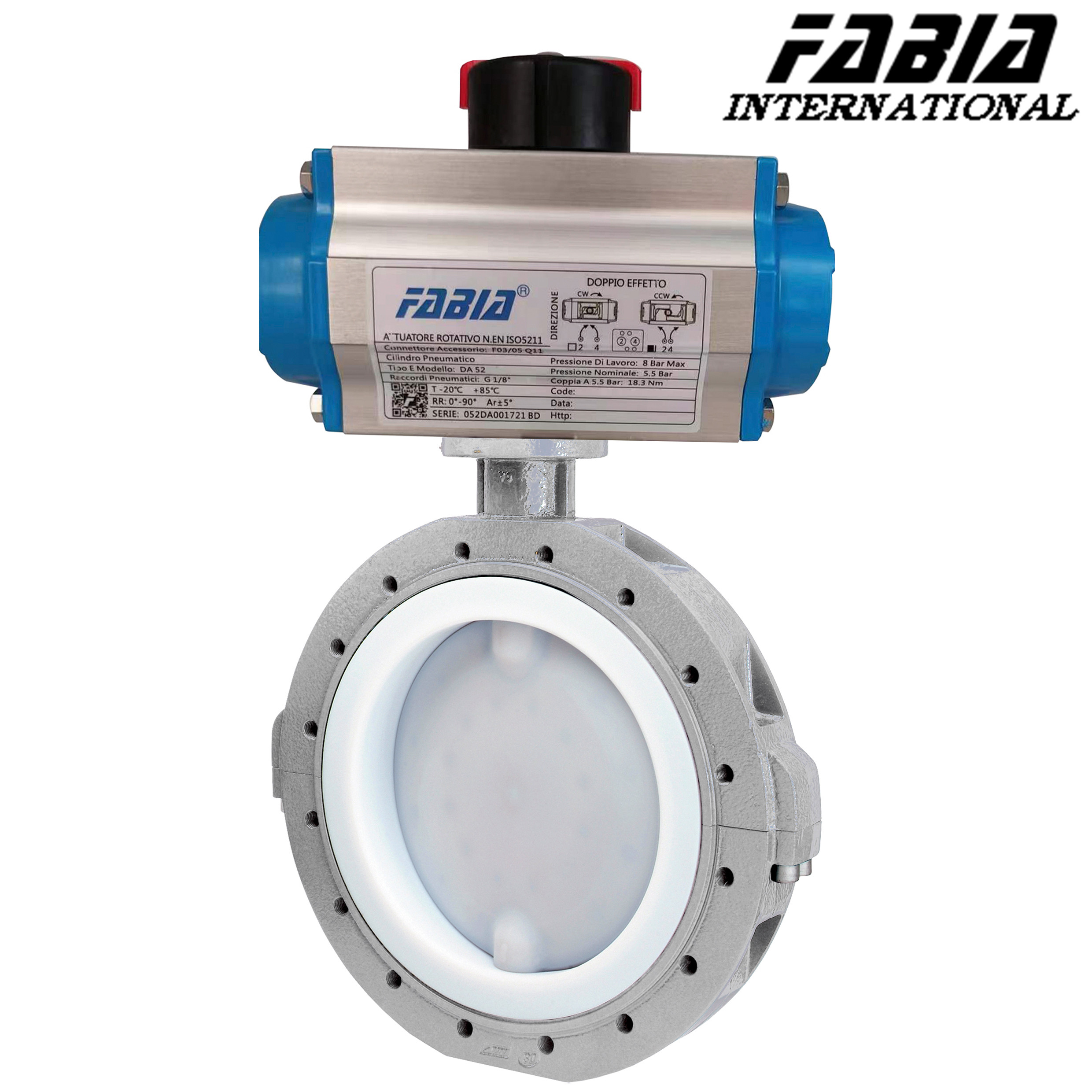

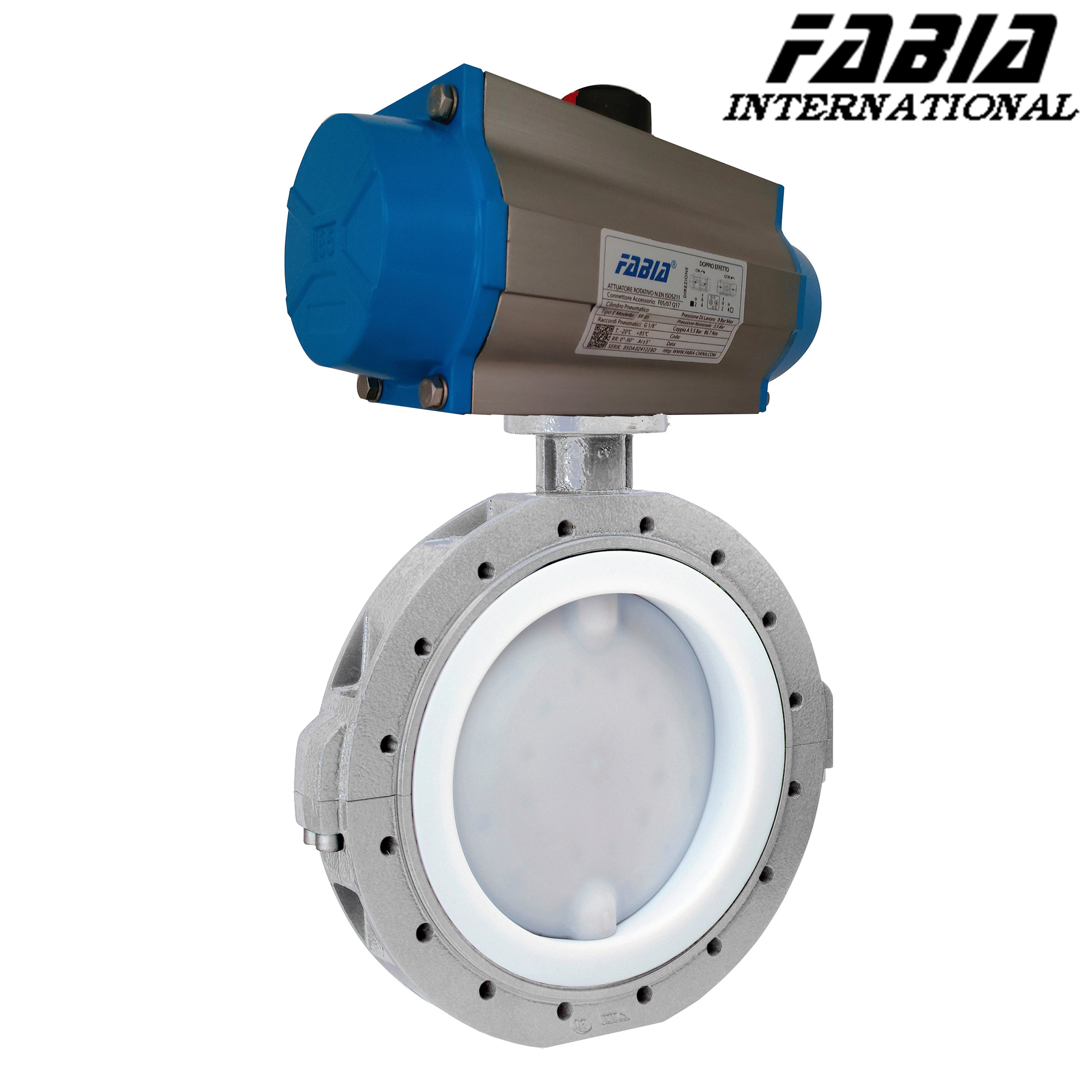

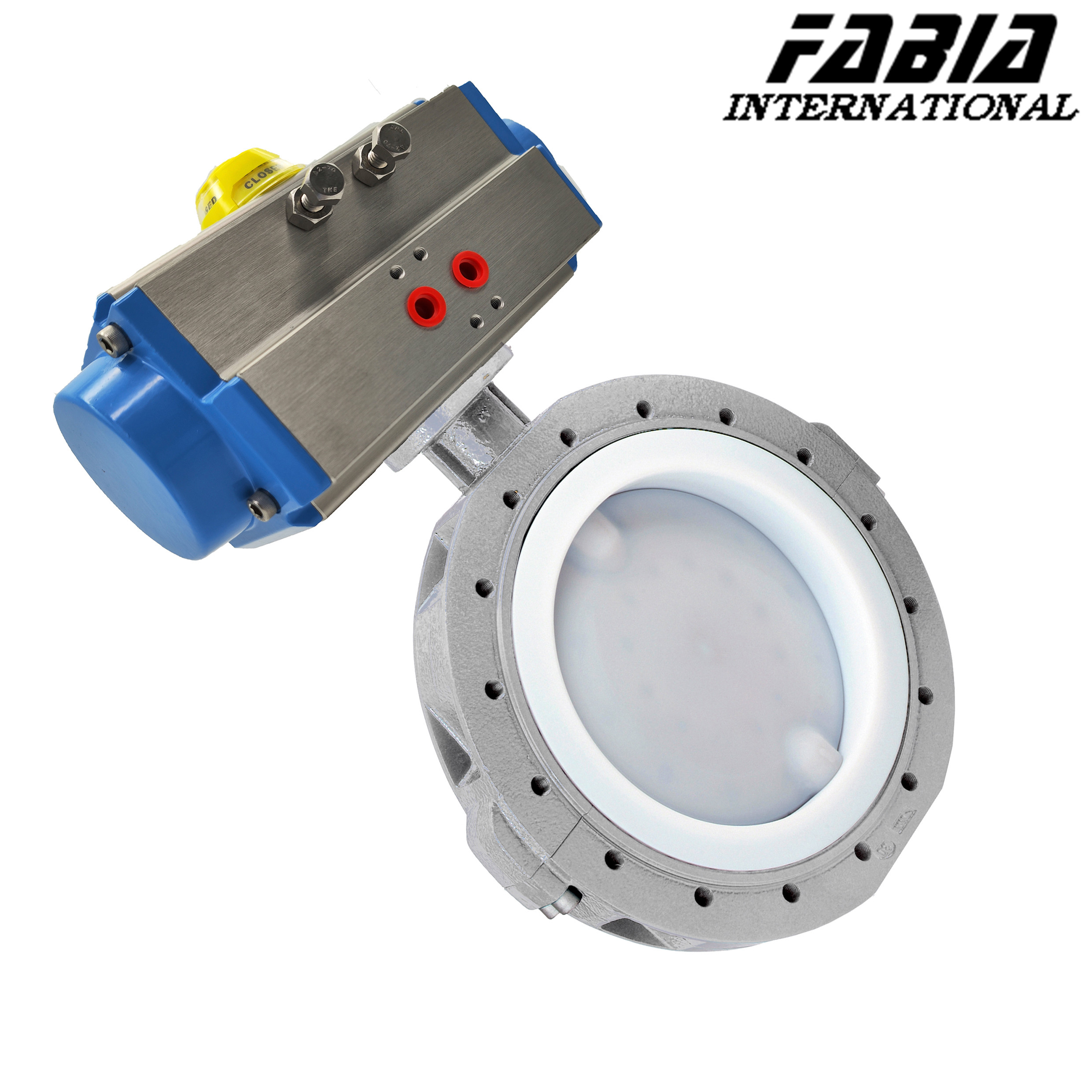

2.5 Inch 3 Inch 4 Inch Lightweight Flanged Pneumatic Butterfly Valve Control

  • 2.5 Inch 3 Inch 4 Inch Lightweight Flanged Pneumatic Butterfly Valve Control
  • 2.5 Inch 3 Inch 4 Inch Lightweight Flanged Pneumatic Butterfly Valve Control
  • 2.5 Inch 3 Inch 4 Inch Lightweight Flanged Pneumatic Butterfly Valve Control
  • 2.5 Inch 3 Inch 4 Inch Lightweight Flanged Pneumatic Butterfly Valve Control
  • 2.5 Inch 3 Inch 4 Inch Lightweight Flanged Pneumatic Butterfly Valve Control
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pneumatic Flanged Butterfly Valve Valve Type Pneumatic Butterfly Valve
Valve Body Cast Iron Actuator Pneumatic Actuator
Connection Type Flange Application Industrial, Chemical, Water Treatment
Control Mode On-off, Regulating Fluid Medium Water, Oil, Gas
Pressure 150-300psi Standard API, ANSI, DIN, JIS
Temperature -20℃-200℃ Valve Seat PTFE
Highlight

2.5 inch pneumatic butterfly valve

,

3 inch pneumatic butterfly valve

,

4 inch pneumatic butterfly valve
Leave a Message
Product Description

FABIA Lightweight Pneumatic Flanged Butterfly Valve With Low Cost And Easy Operation



1. Description:



Used in oil, gas, chemical, water treatment and other industries equipment.



2. Specification:



FABIA Valve Parameter List
Valve type: Lightweight Pneumatic Flanged Butterfly Valve With Low Cost And Easy Operation
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........



3. Features:



  • Main advantages of the pneumatic flange butterfly valve are simple structure, small size and light weight, low cost.
  • Characteristics of the pneumatic disc valve are especially significant, which is installed in the high-altitude tunnel.
  • Easy to operate and adjust the flow medium through the two-position five-way solenoid valve.
  • Small fluid resistance, large diameter pneumatic disc valve fully open when the effective flow area is large, quick and easy to open and close.
  • Butterfly rotation 90 Angle can complete the opening and closing.
  • Because the two sides of the rotating shaft plate hand medium force is close to equal.
  • Torque generated in the opposite direction, so the opening and closing torque is small, low pressure can achieve a good seal, disc valve sealing materials .



2.5 Inch 3 Inch 4 Inch Lightweight Flanged Pneumatic Butterfly Valve Control 0

2.5 Inch 3 Inch 4 Inch Lightweight Flanged Pneumatic Butterfly Valve Control 1
