4 Inch 3 Inch Pneumatic Clamp Butterfly Valve Stainless Steel Body

  • 4 Inch 3 Inch Pneumatic Clamp Butterfly Valve Stainless Steel Body
  • 4 Inch 3 Inch Pneumatic Clamp Butterfly Valve Stainless Steel Body
  • 4 Inch 3 Inch Pneumatic Clamp Butterfly Valve Stainless Steel Body
  • 4 Inch 3 Inch Pneumatic Clamp Butterfly Valve Stainless Steel Body
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pneumatic Clamp Butterfly Valve Valve Type Pneumatic Butterfly Valve
Body Material Stainless Steel Actuator Type Pneumatic
Connection Type Clamp Application Petroleum, Chemical, Power, Etc.
Control Mode On/Off, Modulating, Etc. Fluid Water, Oil, Gas, Etc.
Pressure 150LB-2500LB Seal Material EPDM
Size 1/2”-48” Temperature -20℃-550℃
High Light

butterfly valve stainless steel body

,

3 inch stainless steel butterfly valve

,

4 inch stainless steel butterfly valve
Leave a Message
Product Description

FABIA Stainless Steel Pneumatic Clamp Butterfly Valve



1. Description:



Widely used in water industry, water supply and drainage, heating and steam supply, water treatment, petrochemical industry, paper making, smelting, food brewing, pharmaceutical and medical equipment, textile printing and dyeing, rubber machinery, organic and inorganic chemical industry, chemical preparations and other industries of pipe network and equipment.



2. Specification:



FABIA Valve Parameter List
Valve type: Stainless Steel Pneumatic Clamp Butterfly Valve
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt Clamp/Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........



3. Features:



  • Main advantages of butterfly valve, simple structure, small size, light weight, low cost, the characteristics of the pneumatic disc valve is especially significant, installed in the high-altitude tunnel, through the two five-way solenoid valve control operation is convenient, but also can adjust the flow medium.
  • Small fluid resistance, large diameter pneumatic disc valve fully open when the effective flow area is large, fast and easy to open and close, the disc can be rotated 90 Angle to complete the opening and closing,
  • Because the medium force on both sides of the rotating shaft plate hand is close to equal, and the torque generated in the opposite direction, so the opening and closing torque is small, low pressure can achieve a good seal,
  • Disc valve sealing materials are butadiene rubber, fluorine rubber, Edible rubber, lined with tetrafluoroethylene, so the sealing performance is good, in which the hard seal disc valve.
  • Hard laminated metal sheet with metal hard seal and elastic seal heavy advantages, regardless of low temperature conditions have excellent sealing performance.

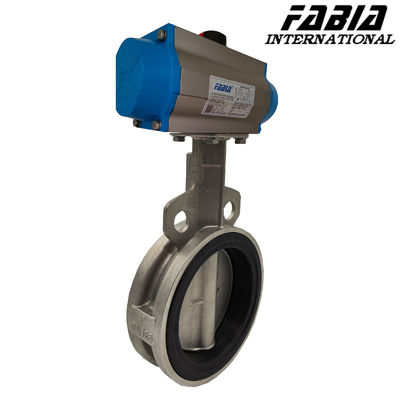

4 Inch 3 Inch Pneumatic Clamp Butterfly Valve Stainless Steel Body 0

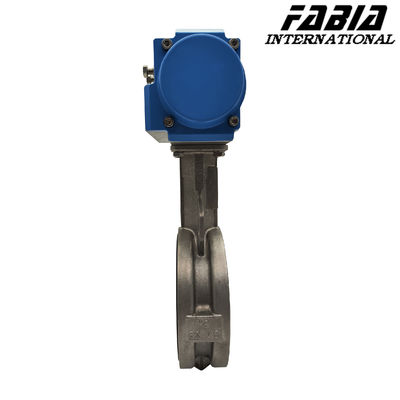

4 Inch 3 Inch Pneumatic Clamp Butterfly Valve Stainless Steel Body 1
