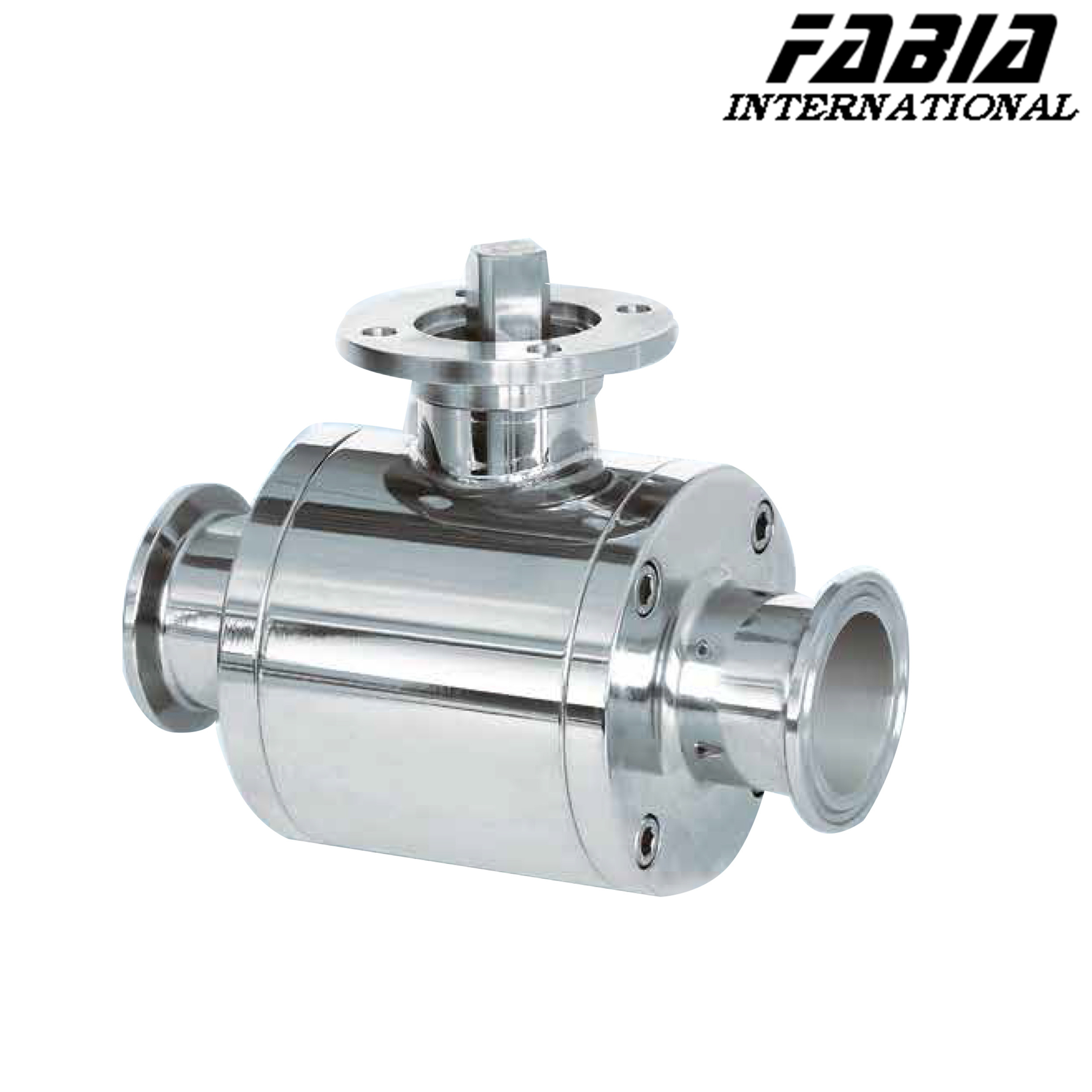

Sanitary Quick Installation Ball Valve With Low Friction Coefficient

  • Sanitary Quick Installation Ball Valve With Low Friction Coefficient
  • Sanitary Quick Installation Ball Valve With Low Friction Coefficient
  • Sanitary Quick Installation Ball Valve With Low Friction Coefficient
  • Sanitary Quick Installation Ball Valve With Low Friction Coefficient
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Sanitary Quick Installation Ball Valve Valve Type Special Purpose Valves
Material Stainless Steel Valve Operation Manual
Connection Type Clamp Size 1/4-8
Actuator Type Manual Pressure Rating 1000 PSI
Temperature Rating 200°F Valve Design 2-Way
Valve Application Petroleum, Chemical, Power
High Light

Quick Installation Ball Valve

,

Sanitary Ball Valve

,

Low Friction Ball Valve
Leave a Message
Product Description

FABIA Sanitary Quick Installation Ball Valve With Low Friction Coefficient



1. Description:



Sanitary grade fast ball loading valve is mainly used in oil and natural gas pipeline engineering.



2. Specification:



FABIA Valve Parameter List
Valve type: Sanitary Quick Installation Ball Valve With Low Friction Coefficient
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN16,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Valve seat designed ball valv manufacturing experience has a very low coefficient of friction, and the operating force is small.
  • Valve stem has a flight-proof structure, set relevant steps below the valve stem, from the inside of the valve body and then installed to the valve stem, so as to prevent the valve stem from flying out.
  • Sanitary ball valve can prevent static electricity.
  • Antistatic spring set between the ball and the valve body or stem can export the static electricity generated by the switch during the operation.
  • Good fire resistance, its excellent fire resistance design, after the fire, the leakage parts are designed into flexible graphite filler or stainless steel graphite, which well meets the requirements of fire resistance, but also in line with the provisions of API6FA and API607.
  • Connection of anti-dislocation design, this sanitary quick installation ball valve in order to prevent the valve switch from being misoperated, the switch is fully open, fully closed position is provided with a locking hole to ensure that the valve is in the correct position.
  • Structure of the support plate of the sanitary ball valve greatly improves the service life of the valve and also reduces the operating torque of the valve. The service life of the valve is greatly extended.

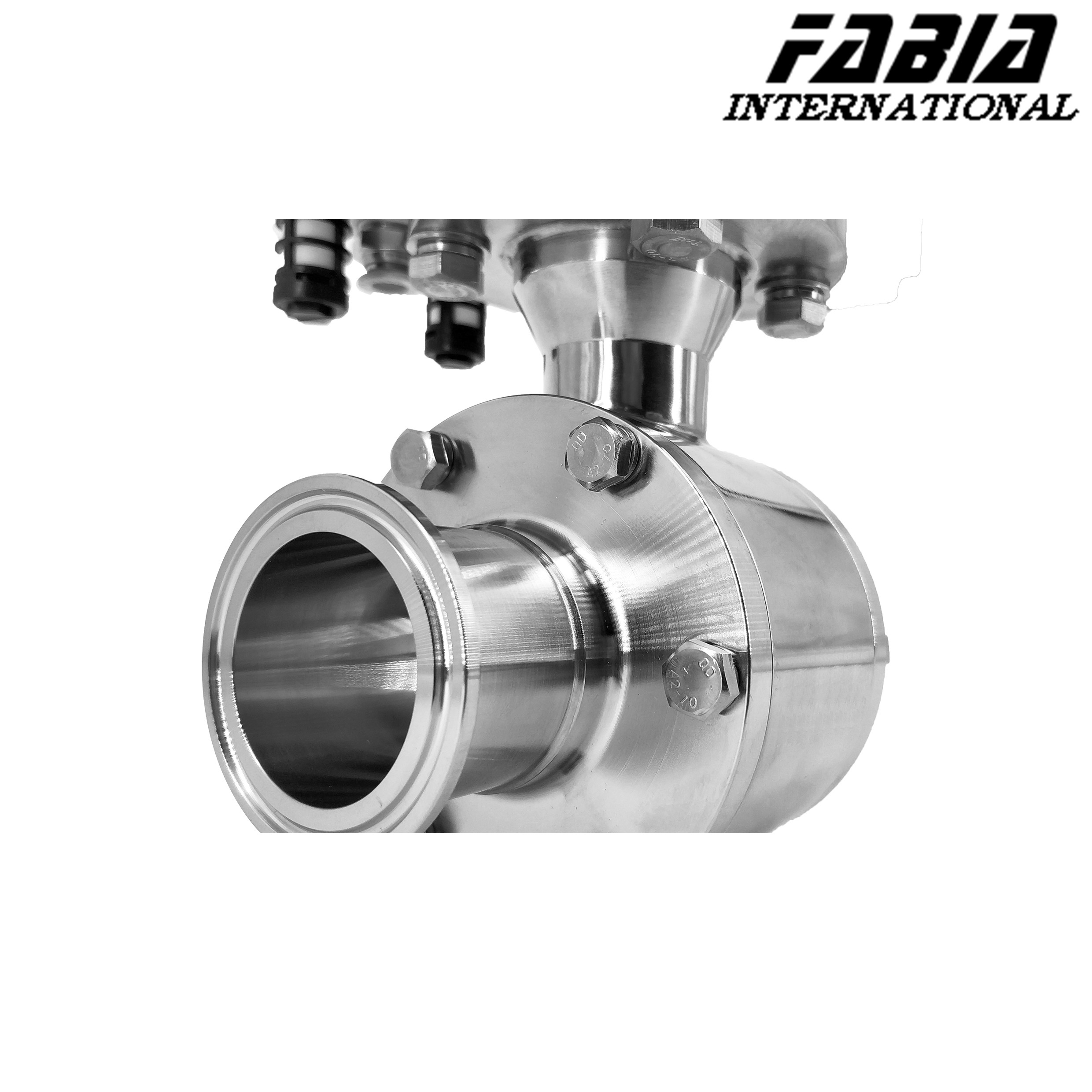

Sanitary Quick Installation Ball Valve With Low Friction Coefficient 0

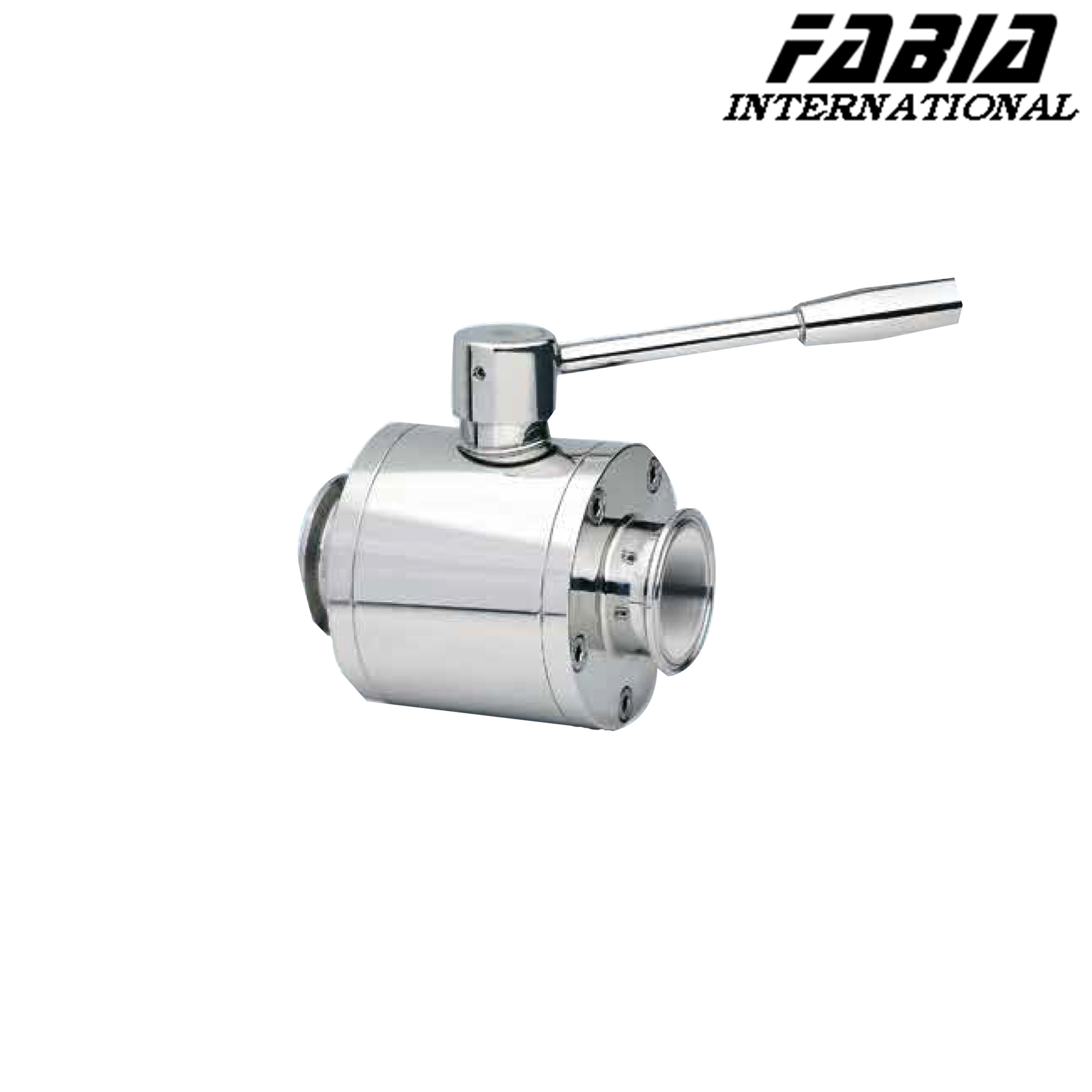

Sanitary Quick Installation Ball Valve With Low Friction Coefficient 1

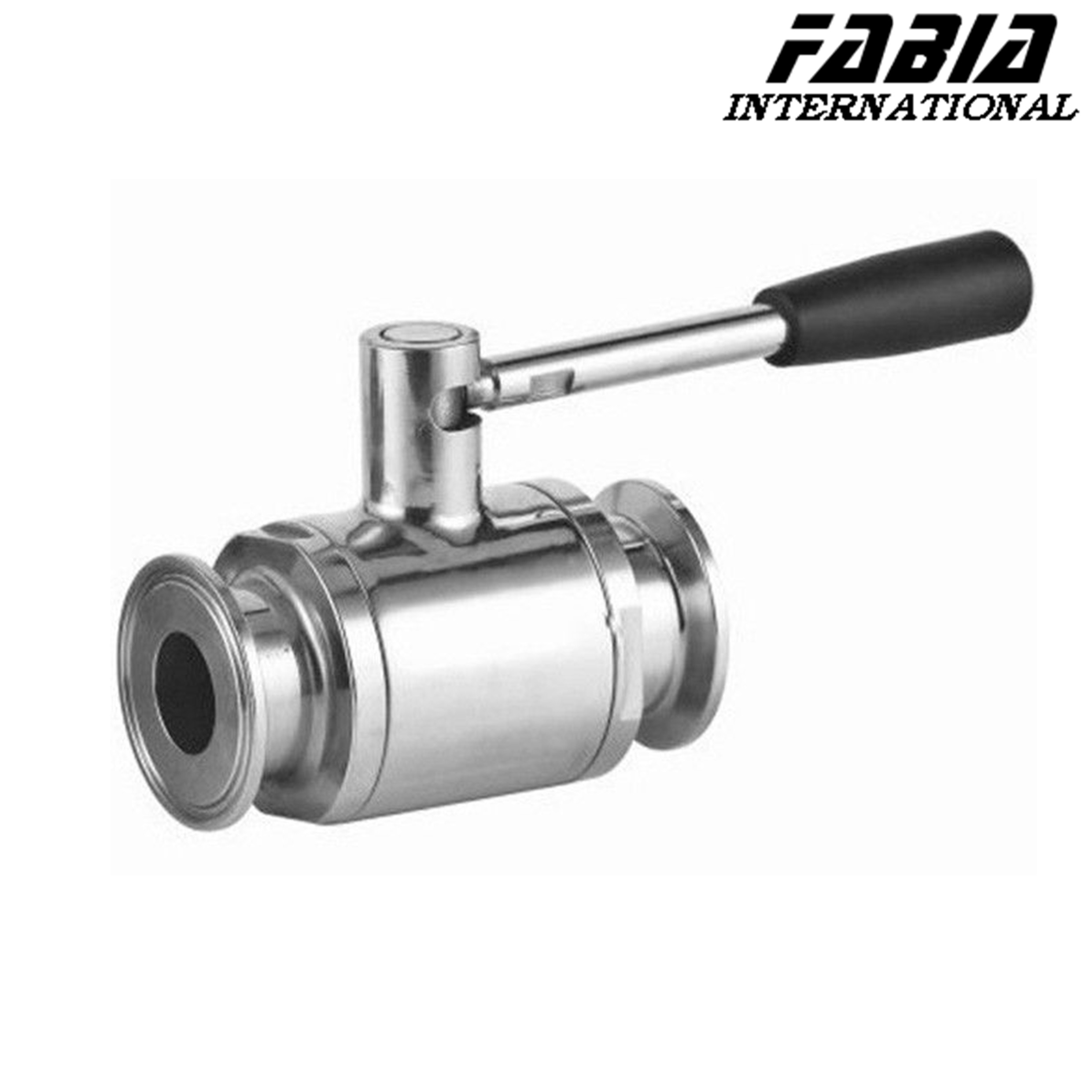

Sanitary Quick Installation Ball Valve With Low Friction Coefficient 2
