4 Inch Wafer Type Butterfly Valve High-Temperature Low Load Ventilation

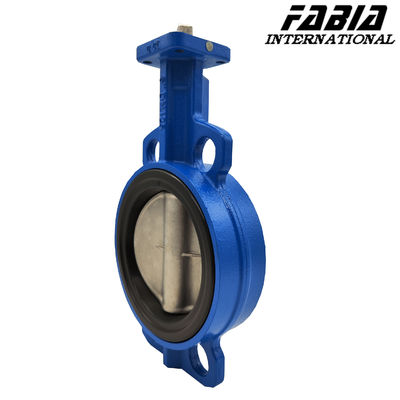

  • 4 Inch Wafer Type Butterfly Valve High-Temperature Low Load Ventilation

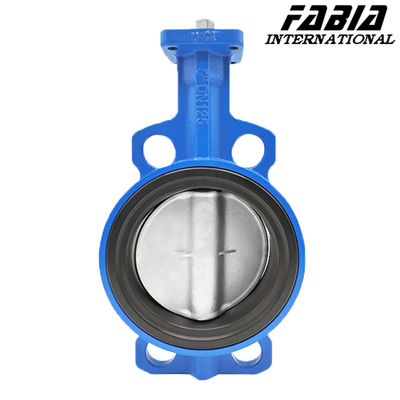

  • 4 Inch Wafer Type Butterfly Valve High-Temperature Low Load Ventilation

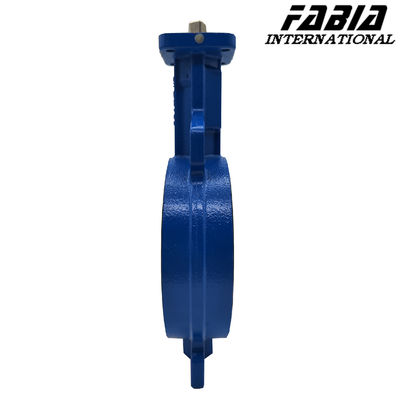

  • 4 Inch Wafer Type Butterfly Valve High-Temperature Low Load Ventilation

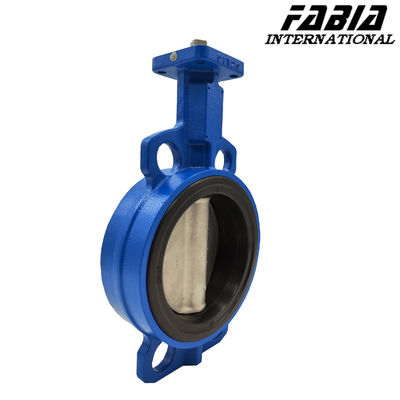

  • 4 Inch Wafer Type Butterfly Valve High-Temperature Low Load Ventilation
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Industrial Butterfly Valve Valve Type Industrial Butterfly
Operation Manual/Electric/Pneumatic Actuator Optional
Connection Type Stainless Steel Connection Clamp
Material Carbon Steel Pressure High
Seat Type EPDM Temperature Range -30℃~+450℃
High Light

4 inch wafer butterfly valve

,

wafer type butterfly valve

,

wafer pattern butterfly valve
Leave a Message
Product Description

4 Inch Wafer Type Butterfly Valve High-Temperature Low Load Ventilation



1. Description:



Driving forms are manual, worm gear transmission, electric, pneumatic, hydraulic, electro-hydraulic linkage and other actuators, which can realize remote control and automatic operation. advantage



2. Specification:



FABIA Valve Parameter List
Valve type: 4 Inch Wafer Type Butterfly Valve High-Temperature Low Load Ventilation
Size: 2 inch ～ 36 inch
Material: WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410
Connection type: Butt /Flange Connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN0.1～PN16
Temperature: -40℃～1000℃
Model: FB-D..........



3. Features:



  • Easy to open and close, labor-saving, fluid resistance is small, can be often operated.
  • Simple structure, small size, short structure length, small volume, light weight, suitable for large diameter valves.
  • Can transport mud, the least liquid in the pipe mouth.
  • Low pressure, can achieve a good seal.
  • Good adjustment performance.
  • When fully opened, the effective flow area of the valve seat channel is large and the fluid resistance is small.
  • The opening and closing torque is small, because the butterfly plate on both sides of the rotating shaft is basically equal to the effect of the medium, Sealing surface material is generally used rubber, plastic, so the low pressure sealing performance is good.
  • Easy to install.
  • Operation is flexible and labor-saving, manual, electric, pneumatic, hydraulic mode can be selected.







4 Inch Wafer Type Butterfly Valve High-Temperature Low Load Ventilation 0

4 Inch Wafer Type Butterfly Valve High-Temperature Low Load Ventilation 1
