Gold top valve located in Oubei Town, Wenzhou, China,where can make all kinds of precision balls,including top entry,metal seat and V type balls.On this base,our products range of floating,trunnion,Gate globe check valve ,butterfly valve ,etc.Surely we can design them by customer's special requirements.
 |
| Place of Origin: | 中国 |
| Brand Name: | GOLD TOP |
| Certification: | API 6D |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 30 days |
| Supply Ability: | 100+pcs+30 days |
| Size: | 2″ ~ 48″ | Material: | Carbon / Stainless Steel |
|---|---|---|---|
| Design Std: | API 6D | Entry: | Side Entry |
| Stem: | Blow Out Proof | Seat: | PTFE / RTFE / PEEK |
| High Light: | blowout proof stem ball valve,fixed ball valve |
||

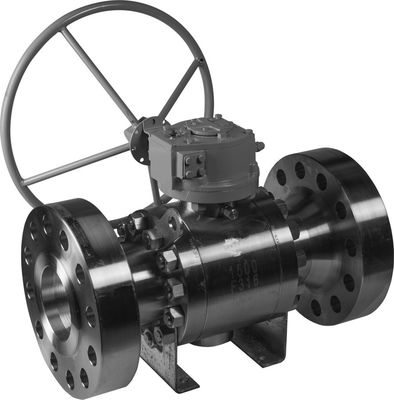

trunnion mounted ball valve Double Block & Bleed 2″ ~ 48″ 3 Piece Body Construction (Forged) RF & RTJ ANSI B16.5
trunnion mounted ball valves are designed for general industrial and chemical applications, and include the following features standard.
| PART NO. | NAME | QTY | DESCRIPTION |
|---|---|---|---|
| 1 | Body | 1 | ASTM A105 |
| 2 | Body Cap | 2 | ASTM A182 316 |
| 3 | Ball | 1 | ASTM A182 316 + NI60 |
| 4 | Upper Stem | 1 | 17 – 4 PH (NACE) |
| 5 | Seat | 2 | ASTM A182 316 + NI55 |
| 6 | Lower Stem | 1 | ASTM A182 316 |
| 7 | Seat Pusher | 2 | ASTM A182 316 |
| 8 | Seat Seal Ring | 2 | Graphite |
| 9 | Spring | 1 Set | Inconel X-750 |
| 10 | Gland Flange | 1 | ASTM A182 316 |
| 11 | Gland Follower | 1 | ASTM A182 316 |
| 12 | Bonnet | 1 | ASTM A182 316 |
| 13 | Packing Ring | 1 | ASTM A182 316 |
| 14 | O-Ring | 1 | Graphite |
| 15 | O-Ring | 1 | Viton |
| 16 | O-Ring | 1 | Viton |
| 17 | O-Ring | 2 | Viton |
| 18 | O-Ring | 2 | Viton |
| 19 | O-Ring | 1 | Viton |
| 20 | Gasket | 2 | 316 Spiral Wound Graphite |
| 21 | Gasket | 1 | 316 Spiral Wound Graphite |
| 22 | Gasket | 1 | 316 Spiral Wound Graphite |
| 23 | Bearing | 1 | PEEK |
| 24 | Bearing | 1 | PEEK |
| 25 | Bearing | 1 | PEEK |
| 26 | Bolt | 1 Set | ASTM A193 B8A |
| 27 | Stud | 2 | ASTM A193 B8A |
| 28 | Nut | 2 | ASTM A193 B8A (Heavy) |
| 29 | Stud | 1 Set | ASTM A193 B8A |
| 30 | Nut | 1 Set | ASTM A193 B8A (Heavy) |
| 31 | Stud | 1 Set | ASTM A193 B8A |
| 32 | Nut | 1 Set | ASTM A194 8A |
| 33 | Spring Washer | 1 Set | AISI 1066 |
| 34 | Pin | 2 | AISI 1035 |
| 35 | Thrust Washer | 1 | ASTM A182 316 |
| 36 | Packing | 1 | Graphite |
| 37 | Disk Spring | 1 Set | 17 – 7 PH |
| 38 | Grounding Spring | 1 | ASTM A182 316 |
| 39 | Grounding Plug | 1 | ASTM A182 316 |
| 40 | Thrust Washer | 1 | PEEK |
| 41 | Drain Plug | 1 | ASTM A182 304 |
| 42 | Seal Ring | 2 | Graphite |
| PART NO. | NAME | MATERIAL |
|---|---|---|
| 1 | Right Body | ASTM A105 |
| 2 | Stud | ASTM A193 B7M |
| 3 | Nut | ASTM A194 2HM |
| 4 | O-Ring | Viton |
| 5 | Gasket | SW + AISI 304 with Graphite Filler |
| 6 | Body | ASTM A105 |
| 7 | Stud | ASTM A193 B7M |
| 8 | Nut | ASTM A194 2HM |
| 9 | Gasket | SW + AISI 304 with Graphite Filler |
| 10 | O-Ring | Viton |
| 11 | Lower Cover | ASTM A105 + ENP 3MIL |
| 12 | Drain Valve | ASTM A105 + HZn |
| 13 | Thrust Bearing | PTFE |
| 14 | Lower Stem Bearing | Metal Packed PTFE |
| 15 | Ball | ASTM A105 + ENP 3MIL |
| 16 | Left Body | ASTM A105 |
| 17 | Packing | Graphite |
| 18 | Seat | PTFE |
| 19 | Seat Retainer | ASTM A105 + ENP 3MIL |
| 20 | O-Ring | Viton |
| 21 | Spring | 17-7 PH |
| 22 | Stem | ASTM A105 + ENP |
| 23 | Stem Bearing | Metal Packed PTFE |
| 24 | Thrust Bearing | PTFE |
| 25 | O-Ring | Viton |
| 26 | Asket | SW + AISI 304 with Graphite Filler |
| 27 | Seal Cover | ASTM A105 + ENP 3MIL |
| 28 | O-Ring | Viton |
| 29 | Bolt | ASTM A193 B7M |
| 30 | Packing | Graphite |
| 31 | Gland | ASTM A216 WCB |
| 32 | Pin | AISI 1035 |
| 33 | Anti-Static Device | Assembly |
| 34 | Release Valve | ASTM A105 + HZn |
| 35 | Bolt | ASTM A193 B7M |
| PART NO. | NAME | QTY | DESCRIPTION | REMARKS |
|---|---|---|---|---|
| 1 | Body | 1 | ASTM A105 | |
| 2 | Cap | 2 | ASTM A105 | |
| 3 | Ball | 1 | ASTM A105 / ENP | |
| 4 | Seat Retainer | 2 | ASTM A105 / ENP | |
| 5 | Seat Ring | 2 | RTFE | |
| 6 | Spring | Set | ASTM B637 UNS N07750 | 1.2 X 5 X 18 |
| 7 | Stem | 1 | ASTM A105 / ENP | |
| 8 | Lower Stem | 1 | ASTM A105 / ENP | |
| 9 | Gland | 1 | ASTM A105 / ENP | |
| 10 | Top Gland | 1 | ASTM A105 | |
| 12 | Bearing | 1 | Metal Backed PTFE | 31 X 5 X 15 |
| 13 | Bearing | 1 | Metal Backed PTFE | 42 X 1.5 X 17 |
| 14 | Bearing | 1 | Metal Backed PTFE | 42 X 1.5 X 22 |
| 15 | Gasket | 2 | Graphite + 304 | A191 x 177 x 3.2 |
| 16 | Gasket | 1 | Graphite + 304 | B40 X 31 X 3 |
| 17 | Thrust Washer | 1 | RTFE | 45 X 31 X 1 |
| 18 | Thrust Washer | 1 | RTFE | 45 X 31 X 1 |
| 19 | Gasket | 2 | Graphite | A53 X 46 X 3.2 |
| 21 | Seal Ring | 2 | Graphite | 117.2 X 3 |
| 22 | O-Ring | 3 | Viton | 2-123 |
| 23 | O-Ring | 3 | Viton | 2-129 |
| 24 | O-Ring | 2 | Viton | 2-259 |
| 25 | O-Ring | 2 | Viton | 2-246 |
| 26 | O-Ring | 2 | Viton | 2-112 |
| 27 | O-Ring | 2 | Viton | 2-019 |
| 29 | Stud | 4 | ASTM A193 B7M | GB5783 M12 X 30 |
| 30 | Bolt | 16 | ASTM A193 B7M | 5/8″ – 11UNC X 65 |
| 31 | Nut | 16 | ASTM A194 2HM | 5/8″ – 11UNC |
| 32 | Inner Hexagonal Bolt | 4 | ASTM A193 B7M | GB70.1 M12 X 25 |
| 33 | Inner Hexagonal Bolt | 4 | ASTM A193 B7M | GB70.1 M12 X 30 |
| 34 | Bolt | 4 | ASTM A193 B7 | |
| 35 | Nut | 4 | ASTM A194 2H | |
| 36 | Name Plate | 1 | ASTM A276 304 | |
| 37 | Rivet | 2 | ASTM A276 304 | GB827 2 X 6 |
| 38 | Key | 1 | AISI 1045 | GB / T1096 C8 X 7 X 40 |
| 39 | Pin | 1 | ASTM A182 304 | GB879 3 X 14 |
| 40 | Pin | 1 | AISI 1035 | GB120 A8 X 70 |
| 41 | Sealant Valve | 1 | ASTM A182 304 | 1/2″ NPT |
| 43 | Vent Valve | 1 | ASTM A182 304 | 1/2″ NPT |
| 46 | Grounding Plug | 1 | ASTM A276 316 | |
| 47 | Grounding Spring | 1 | ASTM A276 316 |
| PART NO. | NAME | QTY | MATERIAL |
|---|---|---|---|
| 1 | Body | 1 | ASTM A182 F304 |
| 2 | Body Cap | 2 | ASTM A182 F304 |
| 3 | Ball | 1 | ASTM A182 F304 |
| 4 | Seat Retainer | 2 | ASTM A182 F304 |
| 5 | Seat Ring | 2 | PEEK |
| 6 | Spring | 1 Set | Inconel X-750 |
| 7 | Stem | 1 | ASTM A182 F304 |
| 8 | Lower Stem | 1 | ASTM A182 F304 |
| 9 | Gland | 1 | ASTM A182 F304 |
| 10 | Top Gland | 1 | ASTM A182 F304 |
| 12 | Bearing | 1 | 316 + PTFE |
| 13 | Bearing | 1 | 316 + PTFE |
| 14 | Bearing | 1 | 316 + PTFE |
| 15 | Gasket | 2 | 316 + Graphite |
| 16 | Gasket | 1 | 316 + Graphite |
| 17 | Thrust Washer | 1 | PEEK |
| 18 | Thrust Washer | 1 | RTFE |
| 19 | Gasket | 2 | 316 + Graphite |
| 20 | Seal Ring | 2 | Graphite |
| 21 | O-Ring | 3 | AFLAS |
| 22 | O-Ring | 3 | AFLAS |
| 23 | O-Ring | 2 | AFLAS |
| 24 | O-Ring | 2 | AFLAS |
| 25 | Bolt | 1 Set | ASTM A193 B8M |
| 26 | Stud Bolt | 1 Set | ASTM A193 B8M |
| 27 | Nut (Heavy) | 1 Set | ASTM A194 8M |
| 28 | Inner Hexagonal Nut | 1 Set | ASTM A193 B8M |
| 29 | Stop Plate | 1 | ASTM A240 304 |
| 30 | Circlip | 1 | ASTM A240 304 |
| 31 | Handle Cover | 1 | AISI 1045 + ZN |
| 32 | Name Plate | 1 | ASTM A240 304 |
| 34 | Pipe | 1 | AISI 1045 + ZN |
| 35 | Inner Hexagonal Nut | 1 | ASTM A193 B8M |
| 36 | Inner Hexagonal Nut | 1 | ASTM A193 B8M |
| 37 | Pin | 2 | ASTM A276 304 |
| 38 | Sealant Injector | 1 | ASTM A276 316 |
| 39 | Sealant Injector | 1 | ASTM A276 316 |
| 40 | Grounding Ball | 1 | ASTM A276 316 |
| 41 | Grounding Spring | 1 | ASTM A276 316 |
| 42 | Retainer Ring | 3 | PTFE |
| 43 | Retainer Ring | 2 | PTFE |
| 44 | Retainer Ring | 2 | PTFE |
| 45 | Retainer Ring | 1 | PTFE |
| 46 | Vent Valve | 1 | ASTM A276 316 |
