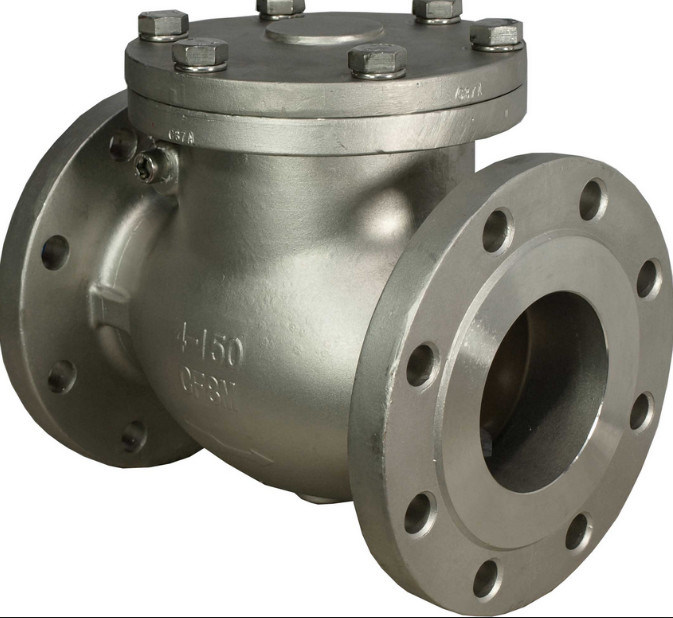

SS 316 Swing Check Valve BOLTED BONNET API 6D BS 1868 For Petroleum Refining

SS 316 Swing Check Valve BOLTED BONNET API 6D BS 1868 For Petroleum Refining

SS 316 Swing Check Valve BOLTED BONNET API 6D BS 1868 For Petroleum Refining

Product Details:

Place of Origin:	中国
Brand Name:	GOLD TOP
Certification:	API6D
Model Number:	H41H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden box
Supply Ability:	100+pcs+15days

Contact Now

Detailed Product Description

Material:	CF8M	Design Standard:	BS1868
Structural Length:	ASME B16.10	Connecting End:	RF
Test Standard:	API 598、ISO 5208	Pressure:	300LB
TYPE:	BOLT BONNET
High Light:	lift check valve , high pressure check valve

API 6D BS1868 SWING CHECK VALVE BOLT BONNET CF8M BODY 300LB TRIM SS316 RTJ FLANGE

Features
	Industries Cast Steel Check Valves have been designed to meet the requirements of BS 1868 /ASME B 16.34/API 6D-ISO14313.
	Face to Face and End to End dimensions conform to ASME B 16.10 / BS 2080 / DIN
	End flange dimensions conform to ASME B 16.5 / API 605 / BS 3293 / DIN
	Butt weld end dimensions conform to ASME B 16.25
	The Seat-rings are cylindrical bottom seated type having ample cross section for strength are provided with welded in and threaded Seat-rings will be supplied on request. In case of SS valves the Seat-rings are integral to Body.
	The Body to Bonnet joint is a male & female in ASME 150#, 300# & 600# valves and ring joint is used in higher classes.
	Valves meet the requirements of fugitive emission levels Shell category B as per MESC SPE 77/312

----------------------------------------------------------------------------------------------------------------------------------------------------

Options

	Tilting disc design available
	Check Valves can be supplied with counter weight or dash pot arrangement

----------------------------------------------------------------------------------------------------------------------------------------------------

MATERIALS

Part Names	Material Option
Body	ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Cover	ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Disc@	ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Hinge	ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Hinge Bracket	ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Hinge Pin	ASTM A 276 410 / A 276 304 / A 276 304L / A 276 316L
Seat Rings@	ASTM A 216 WCB / A 217 WC6 / A 217 WC9 / A 217 C5 / A 217 C12 / A 351 CF8 / A 351 CF8M / A 351 CF3 / A 351 CF3M / A 352 LCB
Disc Nut	Carbon Steel / Stainless Steel
Washer	Carbon Steel / Stainless Steel
Gasket	Soft Iron / SS 304 / Graphoil
Studs / Bolts	ASTM A 193 Gr B7 / A 193 Gr B7M / A 193 Gr B8 / A 193 Gr B8M / A 320 Gr L7
Nut	ASTM A 194 Gr 2H / A 194 Gr B7M / A 194 Gr B/ A 194 Gr 8M / A 194 Gr 4/7

ITEM	PARTS NAME	MATERIAL
ITEM	PARTS NAME	STAINLESS STEEL	CARBON STEEL
1	Body	A351-CF8M/CF8	A216-WCB
2	Bonnet	A351-CF8M/CF8	A216-WCB
3	Disc	A351-CF8M/CF8	A216-WCB
4	Disc Nut	SS304	SS304
5	Body/Cover Bolting	ASTM A193 B8	ASTM A192 B7 / A194 2H
6	Arm / Hinge	A351-CF8M/CF8	A216-WCB
7	Body / Bonnet Gasket	PTFE	PTFE
8	Hinge Pin	SS316 / SS304	SS304

DIMENSION ANSI 150-SS
ITEM		H	L	A	B	C	D	NØ-D
SIZE	NPS	H	L	A	B	C	D	NØ-D
1/2″	DN15	63	108	89	60.5	35	11.2	4-16
3/4″	DN20	66	117	98	70.0	43	11.2	4-16
1″	DN25	75	127	108	79.5	51	11.2	4-16
1-1/2″	DN40	85	165	127	98.5	73	14.3	4-16
2″	DN50	110	203	152	120.5	92	15.9	4-19
2-1/2″	DN65	135	216	178	139.5	105	17.5	4-19
3″	DN80	135	241	190	152.5	127	19.1	4-19
4″	DN100	170	292	229	190.5	157	23.9	8-19
5″	DN125	170	330	254	216.0	186	23.9	8-22
6″	DN150	210	356	279	241.5	216	25.4	8-22
8″	DN200	250	495	343	298.5	270	28.6	8-22
10″	DN250	315	622	406	365.0	324	30.2	12-25
12″	DN300	376	698	483	432.0	381	31.8	12-25
