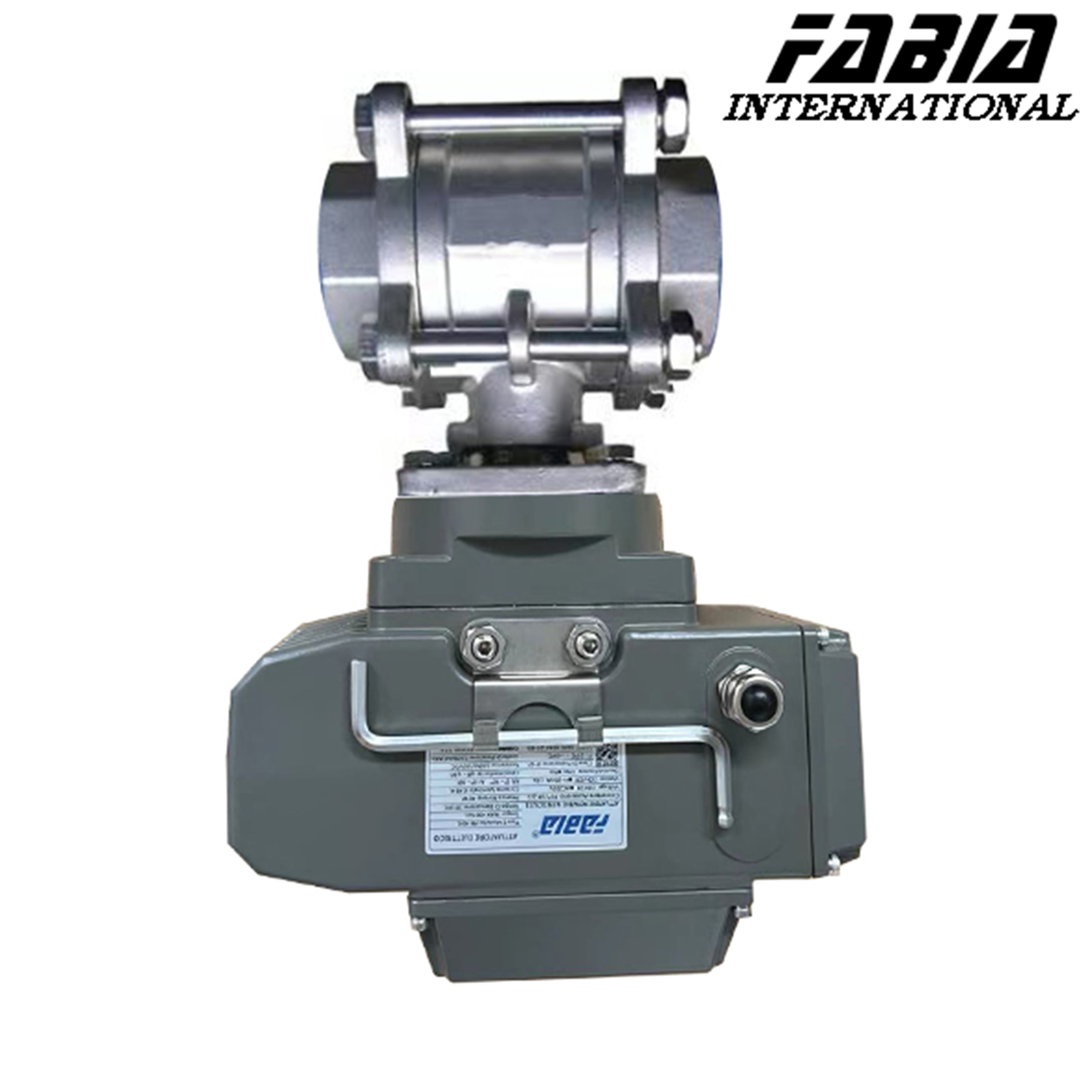

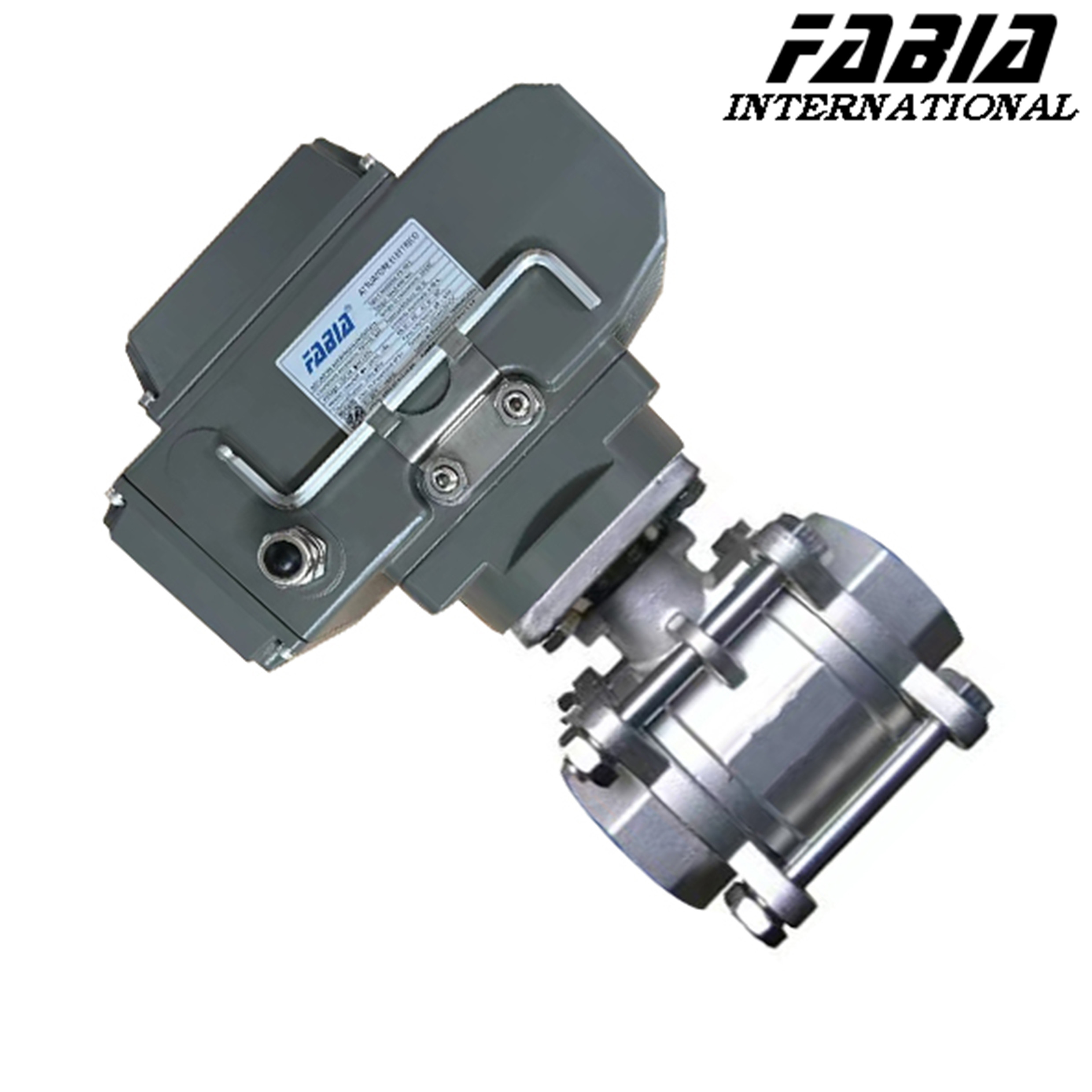

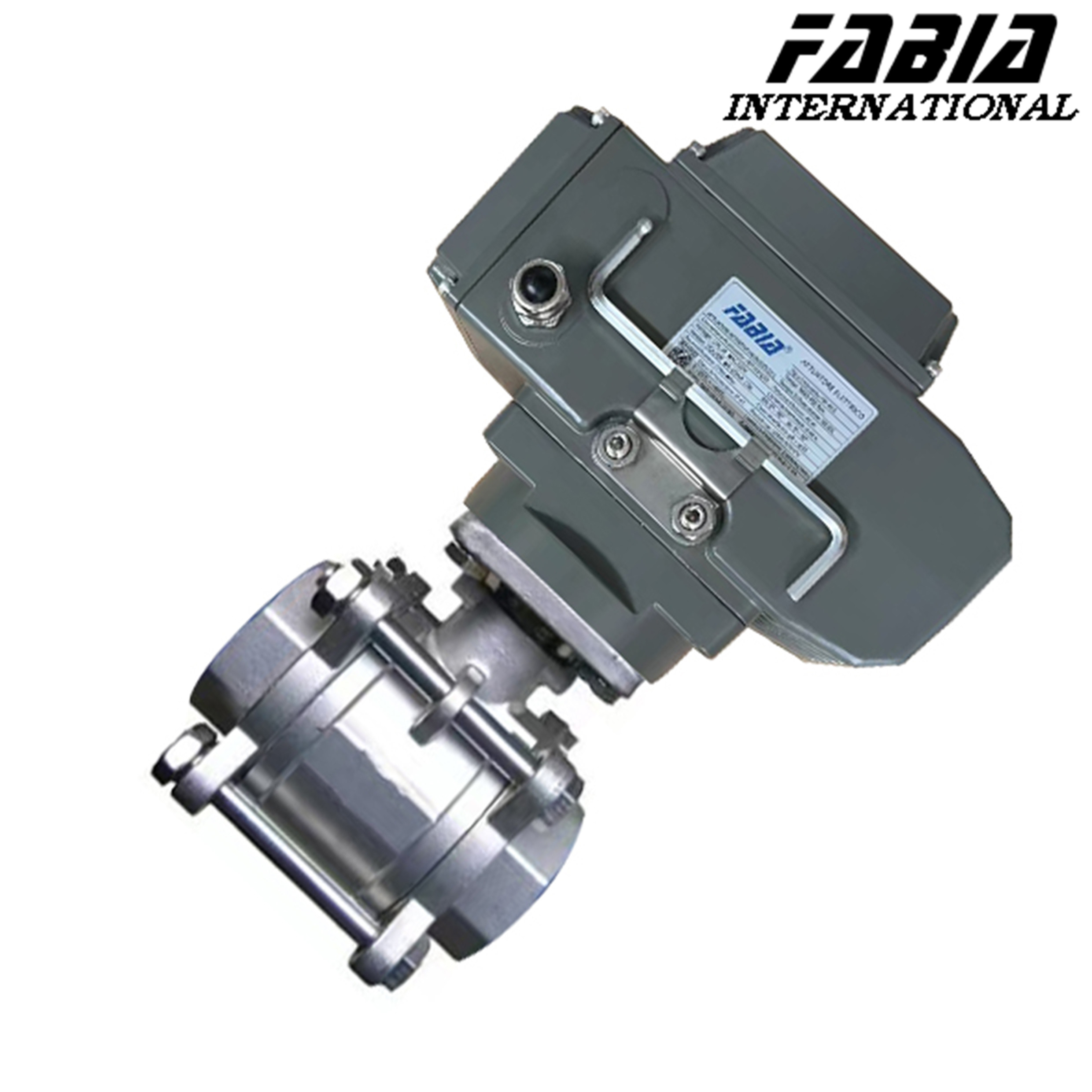

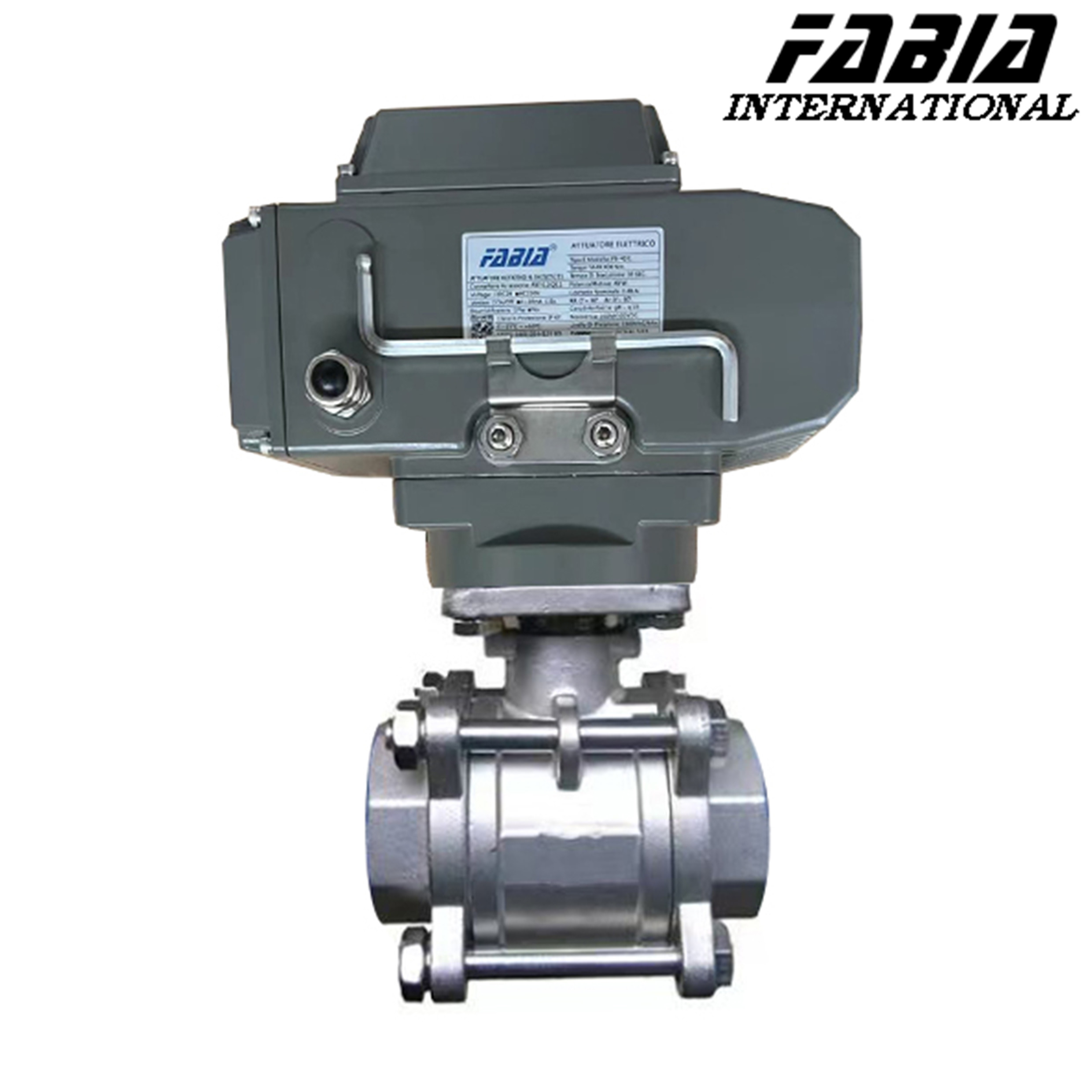

Sand Blasting Electric High Pressure Ball Valve Three Piece Stainless Steel Ball Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Electric High Pressure Ball Valve | Valve Type | High Pressure Ball Valve |
|---|---|---|---|
| Material | Stainless Steel | Actuator | Electric |
| Connection | Threaded | Operation | Electric |
| Stem | Stainless Steel | Seat | PTFE,EPDM |
| Size | 1/2-8 Inch | Temperature Rating | -20 To 300°F |
| Pressure Rating | 1000-6000 PSI | Surface Treatment | Sand Blasting, Polishing |
| High Light | 6000 PSI Electric Ball Valve,Sand Blasting High Pressure Ball Valve,Stainless Steel Ball Valve 1/2inch |
||
Product Description
Electric High Pressure Three Piece Stainless Steel Ball Valve
1. Description:
Switching speed of the three-piece high-pressure ball valve is faster than that of the worm gear switch.
High pressure ball valve adopts elastic loading structure to ensure the sealing surface of the ball under normal closing conditions.
Contact between the seat seal and the seat seal can effectively compensate the thermal expansion of the internal parts under high temperature conditions, avoid the blockage caused by high turbidity, and is suitable for small and medium diameter high temperature applications.
Stainless steel pneumatic fixed ball valve surface with special surface hardening treatment, the whole seat using special hard material or partial surfacing hard material.
Ability to start, but also requires flow regulation.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric High Pressure Three Piece Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- High-pressure ball valve operation is easy: the ball is supported by the upper and lower bearings, which reduces friction and eliminates the excessive torque caused by the huge sealing load formed by the import pressure pushing the ball and the sealing seat Ball valve flow resistance is minimal. When the full-diameter ball valve is opened, the diameter of the ball channel, the valve body channel and the connecting pipe are equal to form a diameter, and the medium can flow almost without loss.
- High pressure ball valve rotation 90° can be fully closed and fully opened, opening and closing quickly.
- Compared with gate valves and globe valves of the same specifications, ball valves are small in size, light in weight, and easy to install pipelines .
