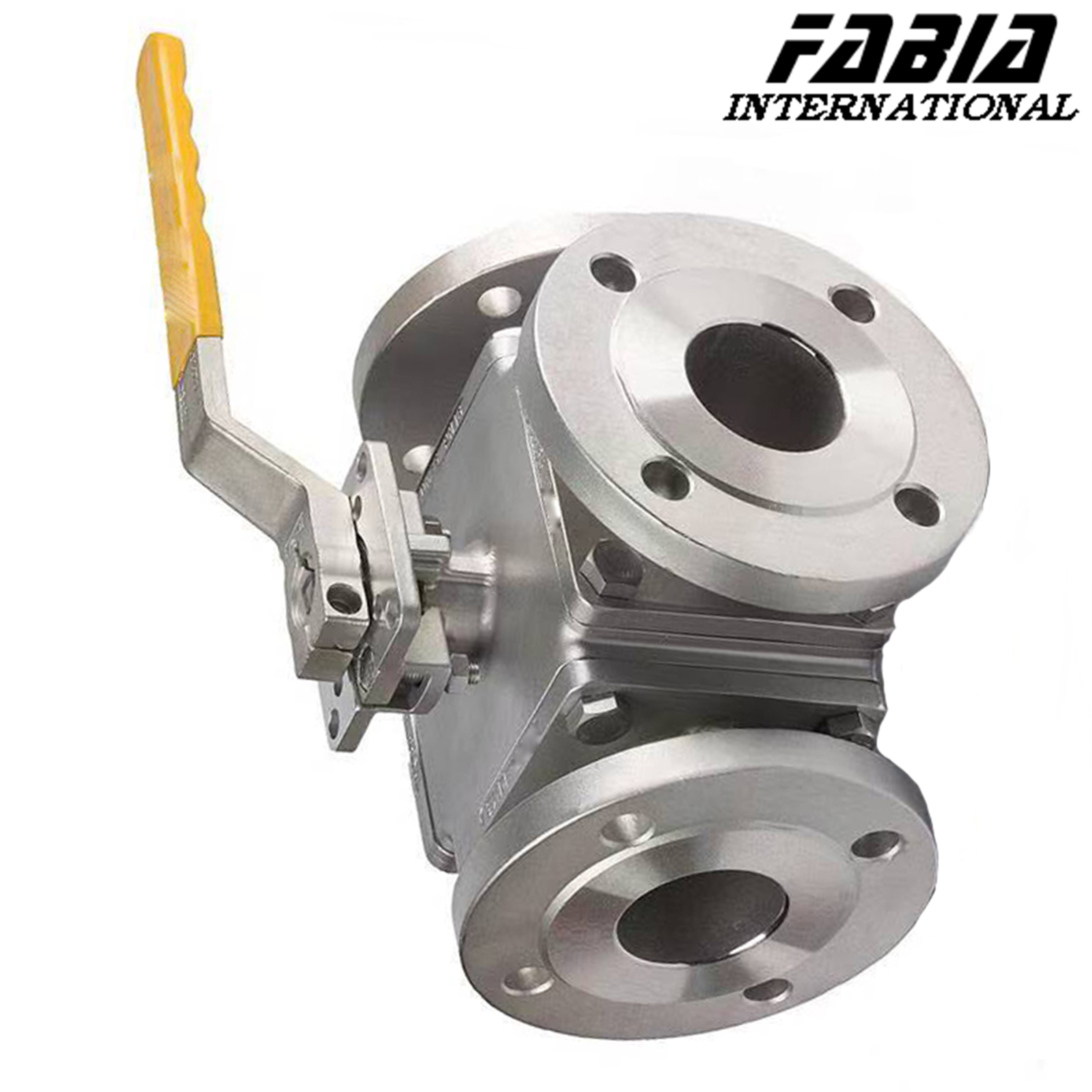

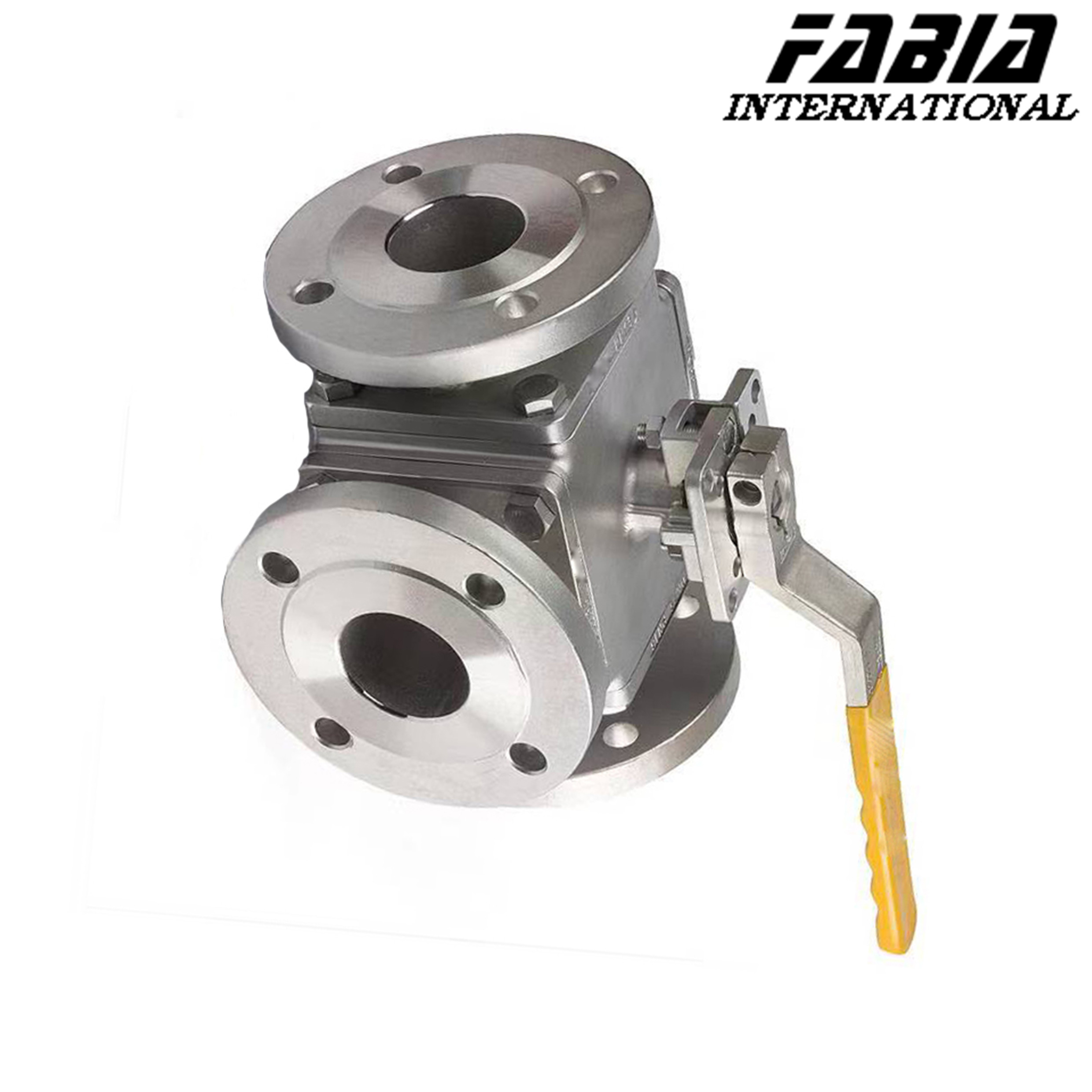

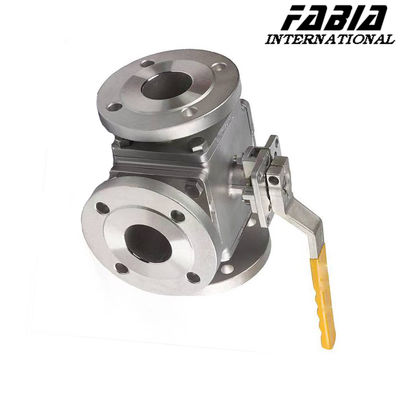

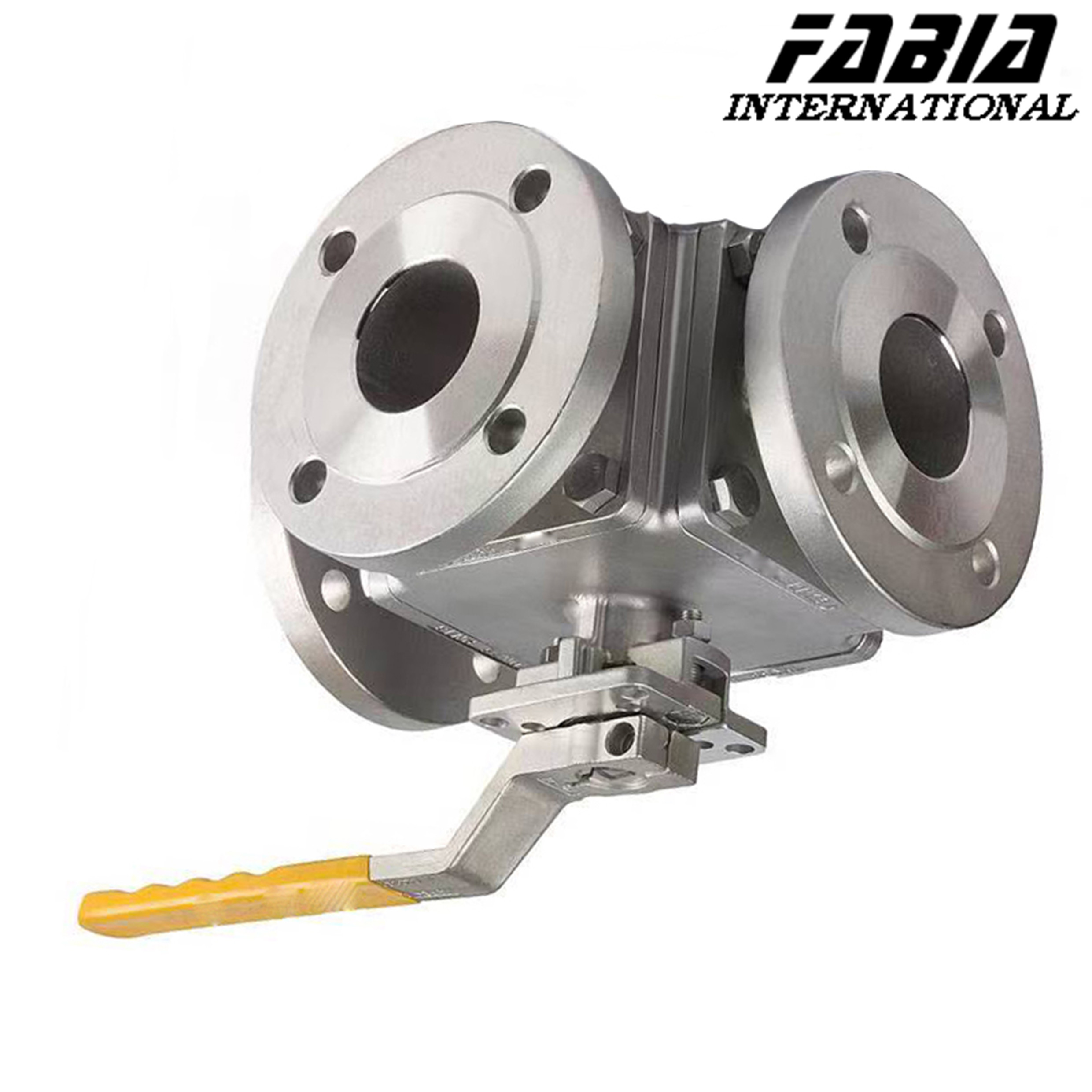

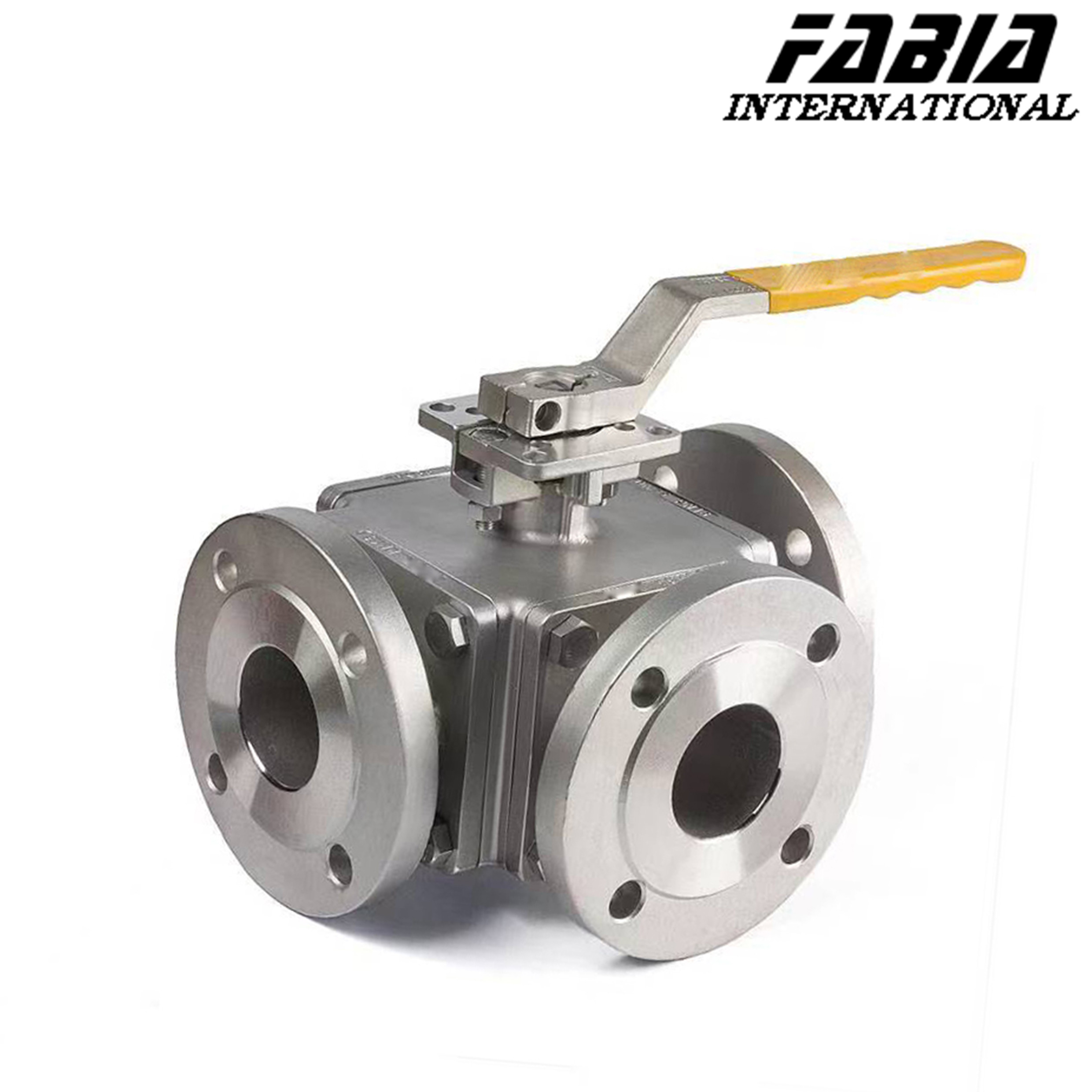

Manual High Pressure Three-Way Flange Ball Valve Stainless Steel
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Manual Three-Way Flange Ball Valve | Valve Type | High Pressure Ball Valve |
|---|---|---|---|
| Material | Stainless Steel | Operation | Manual |
| Connection Type | Flanged | Media | Water, Oil, Gas |
| Seat Type | Metal | Structure | Floating, Trunnion |
| Surface Treatment | Polishing, Sand Blasting | Pressure Rating | 1000-6000 Psi |
| Size | 1/2-8inch | Temperature Range | -20°C~+200°C |
Product Description
FBIA Manual High Pressure Three-Way Flange Ball Valve
1. Description:
Action of water supply, petrochemical, metallurgy, food, steel and other pipeline system intermediary flow direction switch, as well as the medium of the shunt or mixing fluid role.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Manual High Pressure Three-Way Flange Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Easy maintenance: After decompressing the system, the entire valve body can be inspected and maintained without disassembling.
- Good sealing performance: the elastic deformation of the four-side seat material PTFE can achieve a leak-free seal.
- Valve has a variety of uses: any port can be used as an inlet without leakage.
- Compact structure, fast opening and closing, smooth flow path, small fluid resistance.
