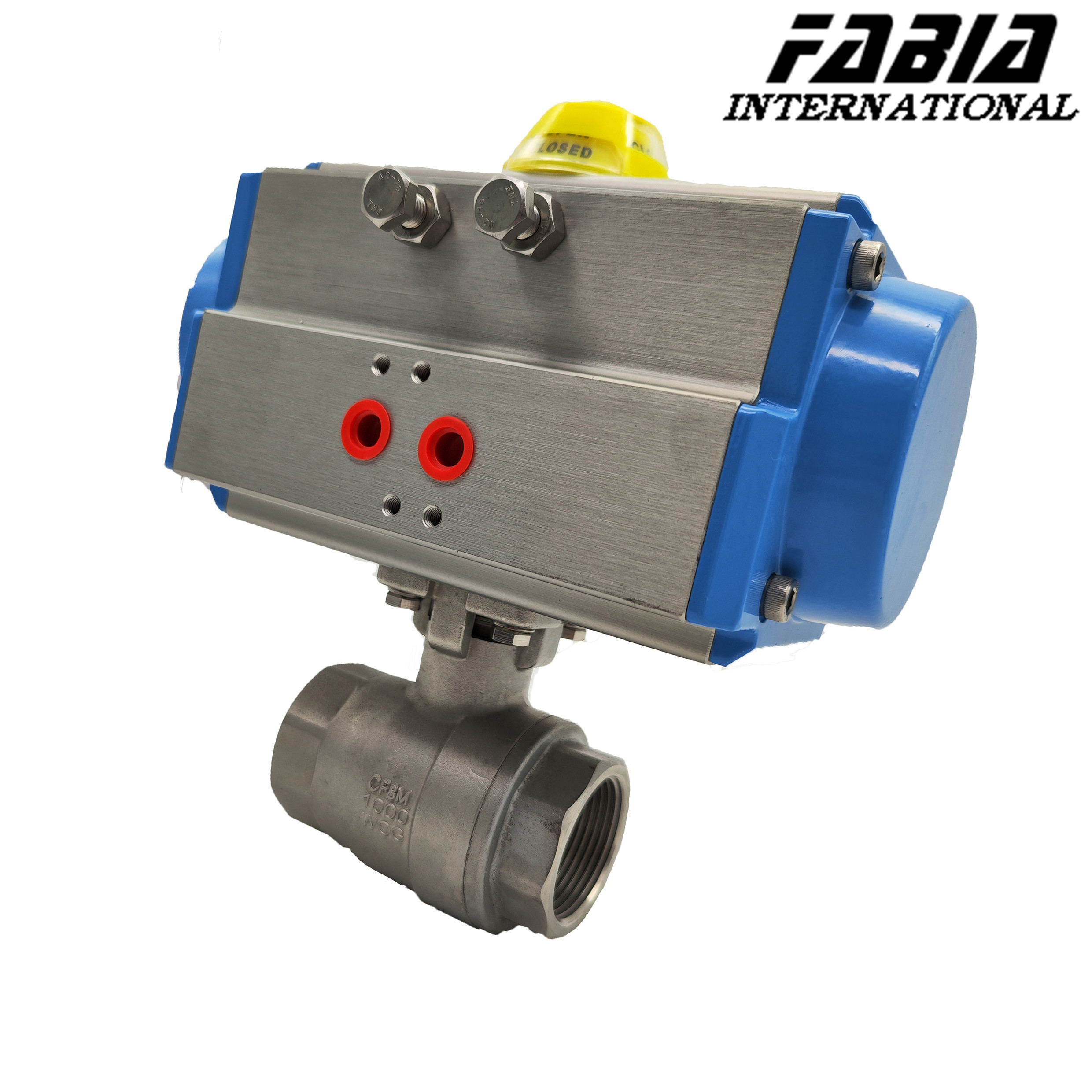

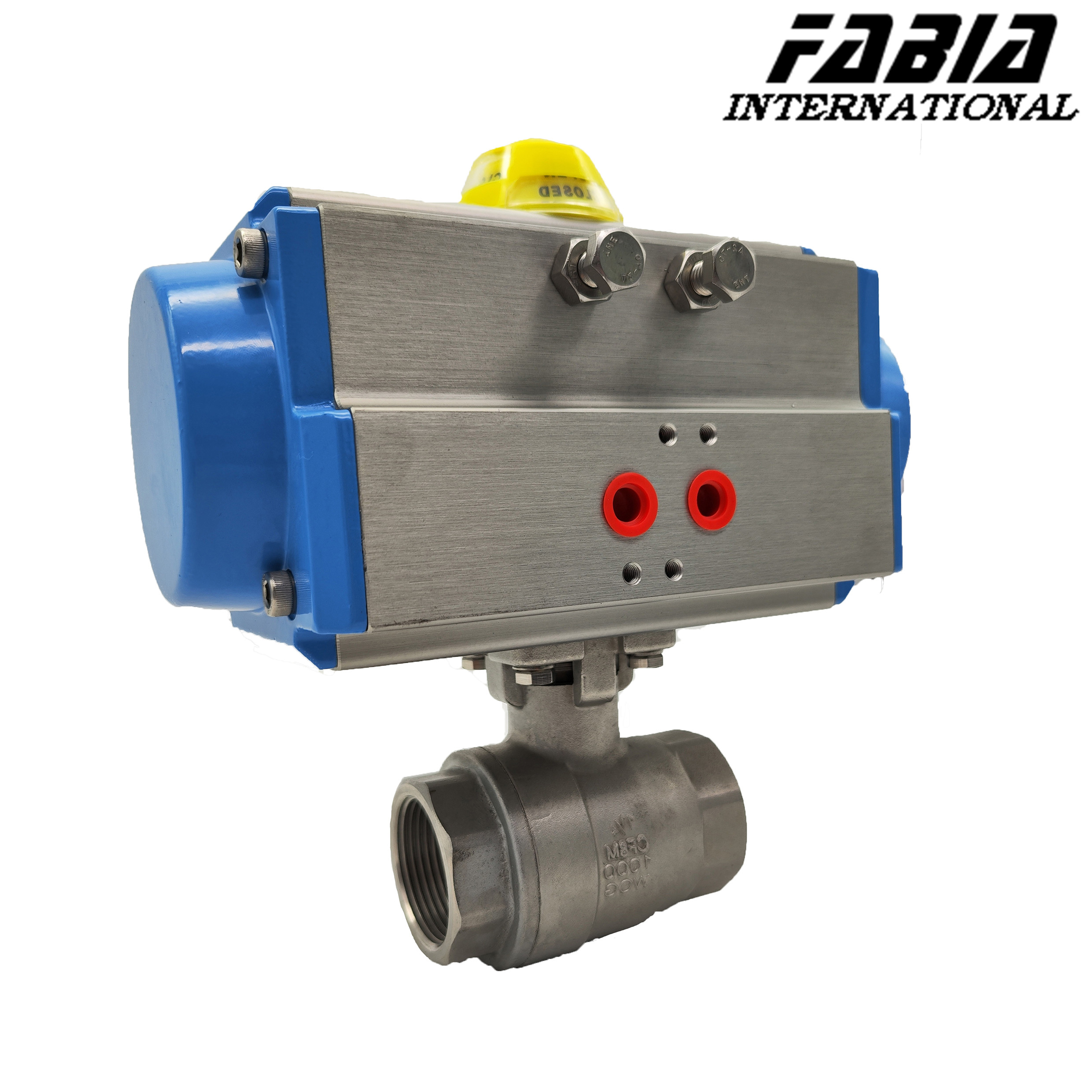

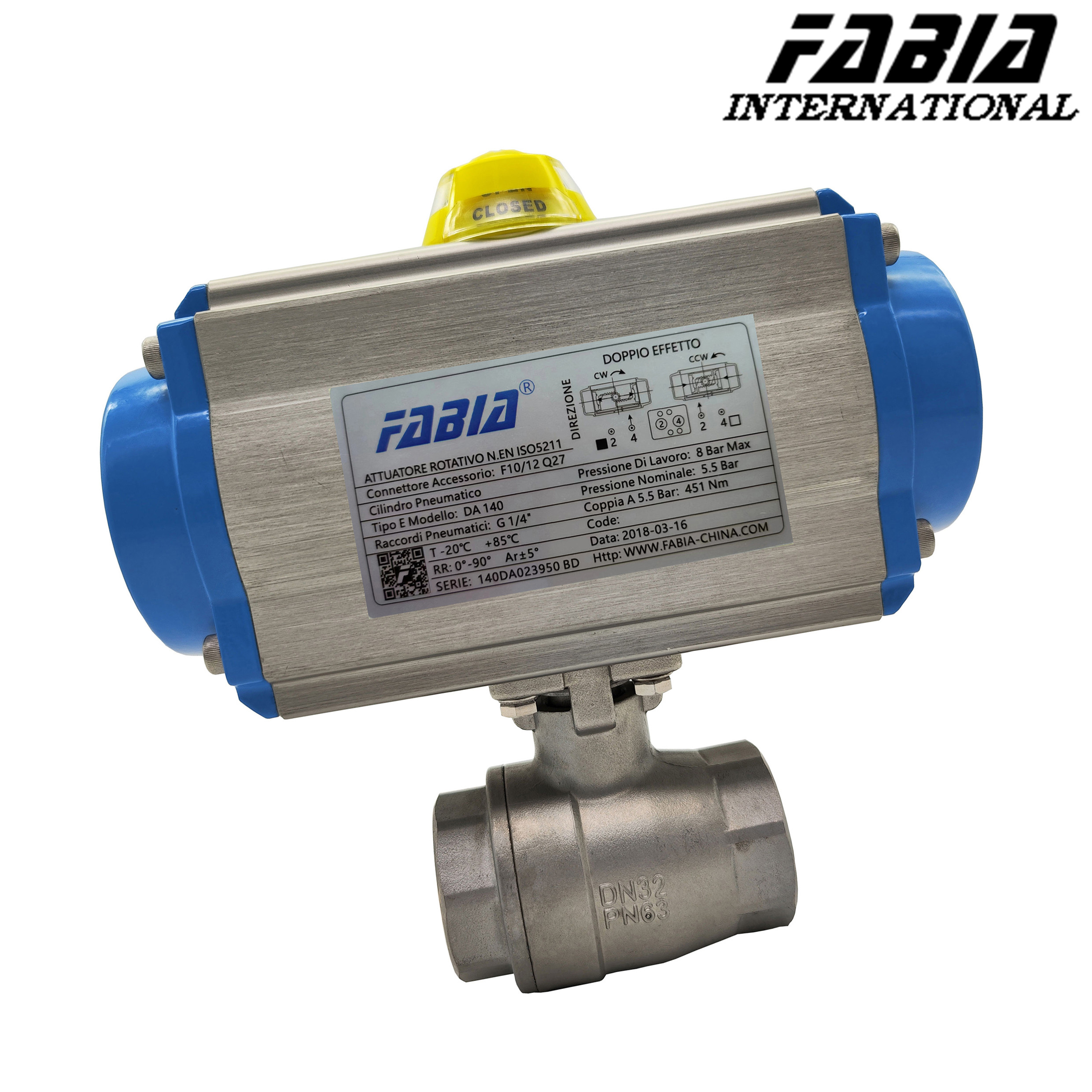

Thread Pneumatic Ball Valve With Internal Thread For Easy Operation
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pneumatic Two-Piece Ball Valve | Valve Type | Pneumatic Ball Valve |
|---|---|---|---|
| Actuator | Pneumatic | Material | Stainless Steel |
| Connection | Thread | Pressure | 150LB-2500LB |
| Operation | Pneumatic | Seal | PTFE, RPTFE, PPL, PEEK |
| Size | 1/2”-24” | Temperature | -20℃-540℃ |
| High Light | two piece ball valve,2 piece stainless steel ball valve,2 piece ball valve |
||
Product Description
Pneumatic Ball Valve With Internal Thread For Easy Operation
1. Description:

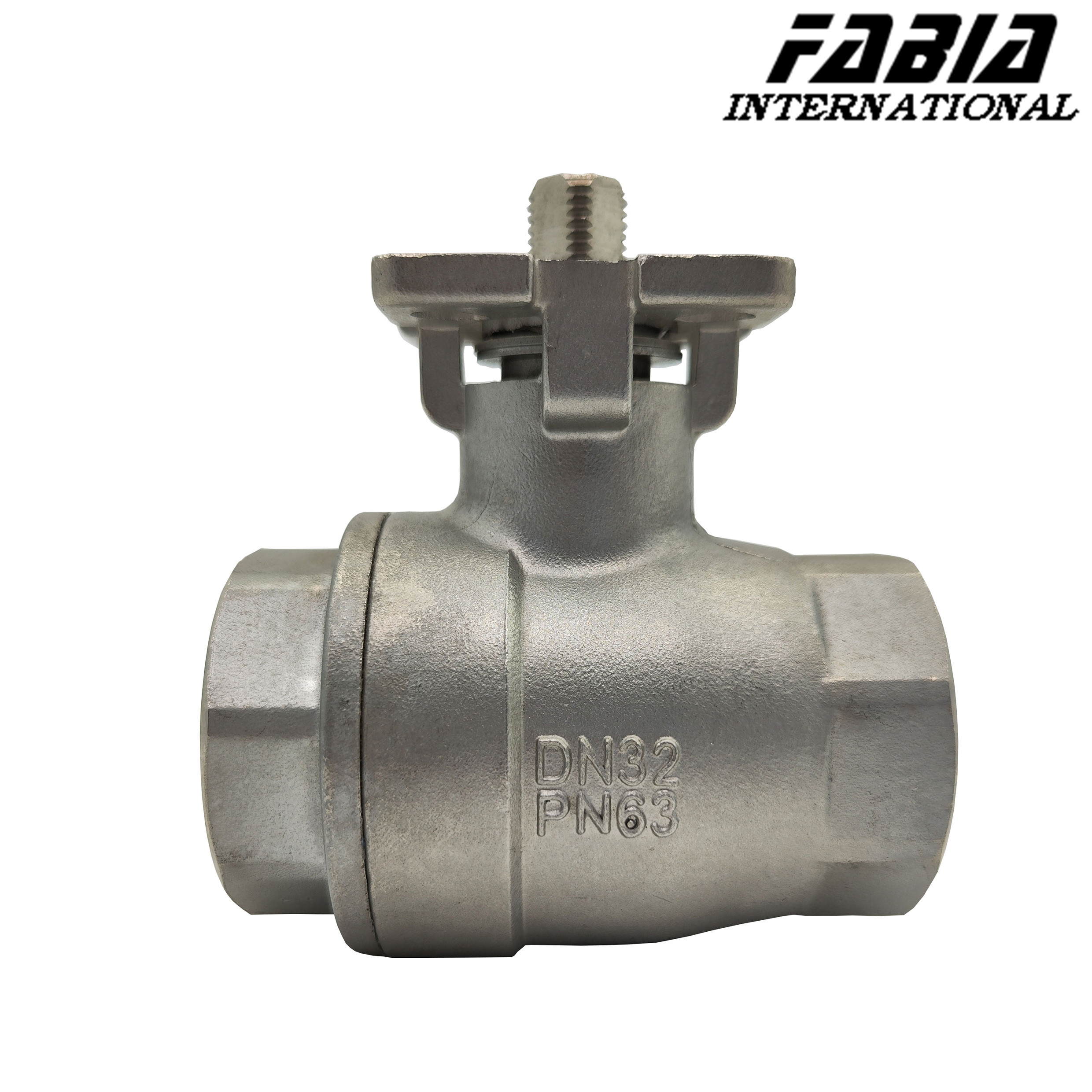

Two-piece ball valve with internal thread is a common valve type, which is composed of valve body, valve ball, valve stem, seat and other components.
Valve is characterized by simple structure, good sealing, easy operation and long service life.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pneumatic two-way ball valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, and the resistance coefficient is equal to the pipe segment of the same length.
- Simple structure, small size, light weight.
- Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has been widely used in the vacuum system.
- Easy to operate, open and close quickly, from full open to full close as long as the rotation; Easy to control from a distance.
- Easy maintenance, ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.
