Pvc Pneumatic Operated Ball Valve Soft Seated Valves Pneumatic Ball Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Pneumatic Soft Seated Ball Valve | Valve Type | Pneumatic Ball Valve |
|---|---|---|---|
| Material | PVC | Operation | Pneumatic |
| Connection | PVC | Pressure | PN16 |
| Seal | PTFE/RPTFE/PPL/PEEK | Size | 1/2-48 |
| Temperature | -30℃-135℃ | ||
| High Light | soft seated valves,pneumatic operated ball valve,pneumatic pvc ball valve |
||
Product Description

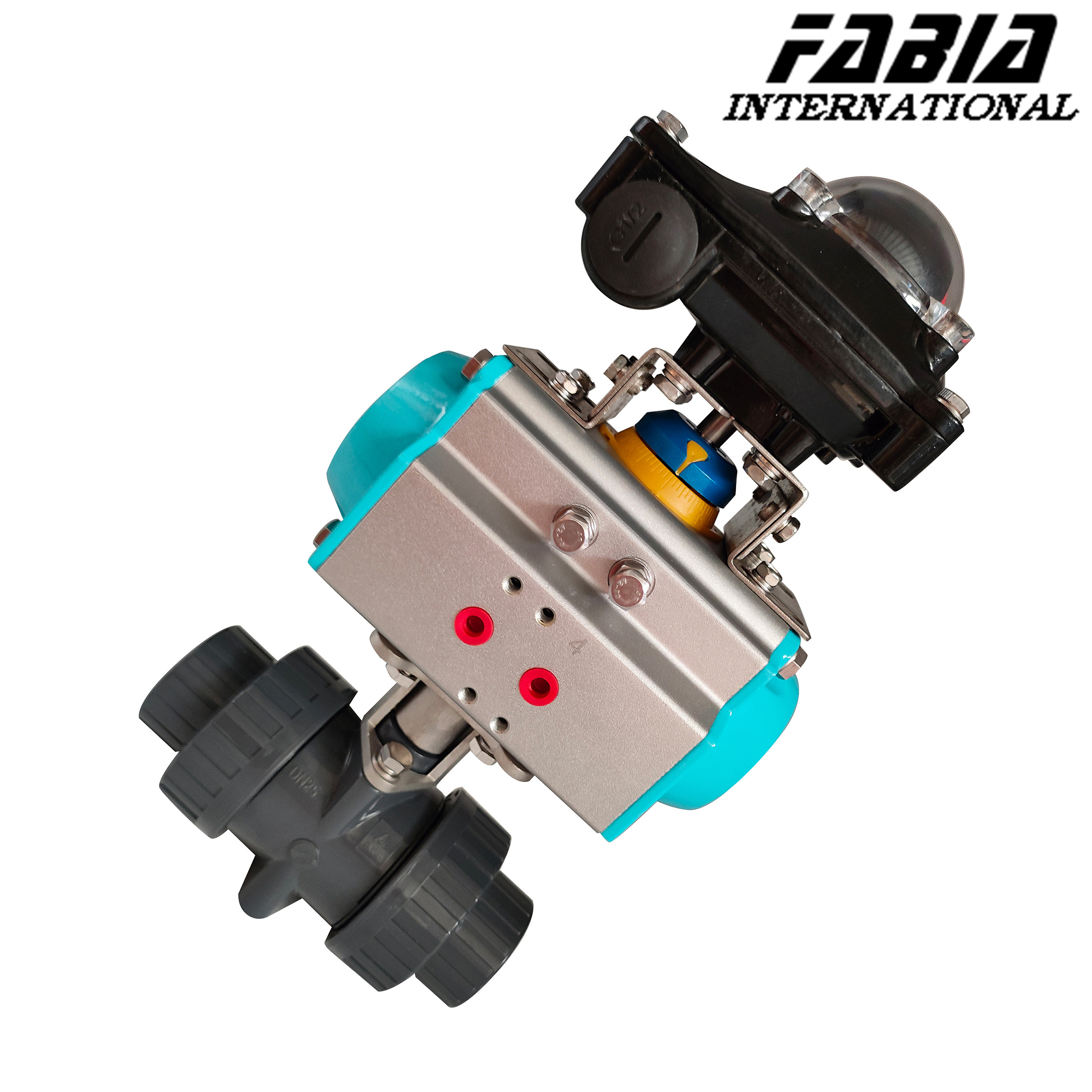

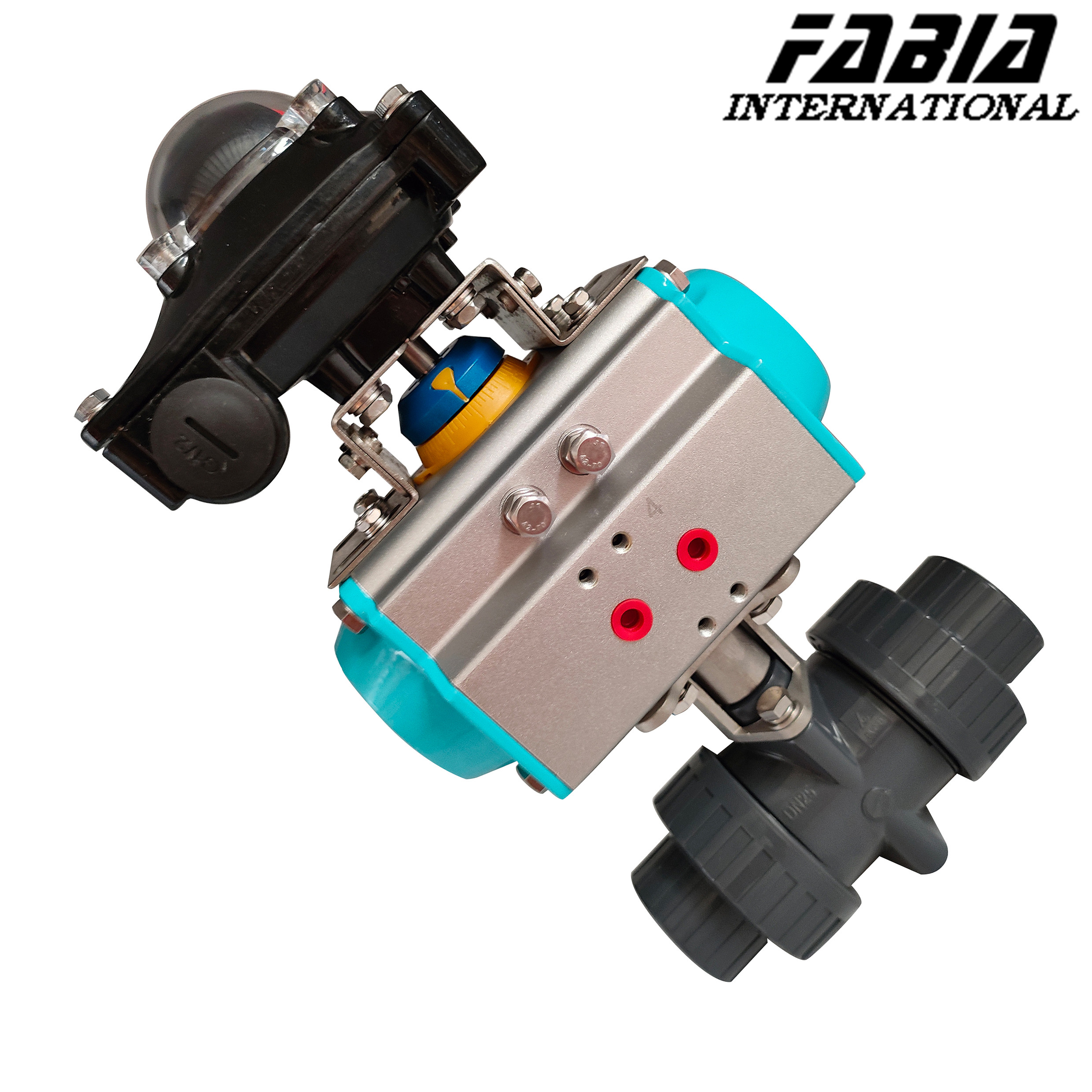

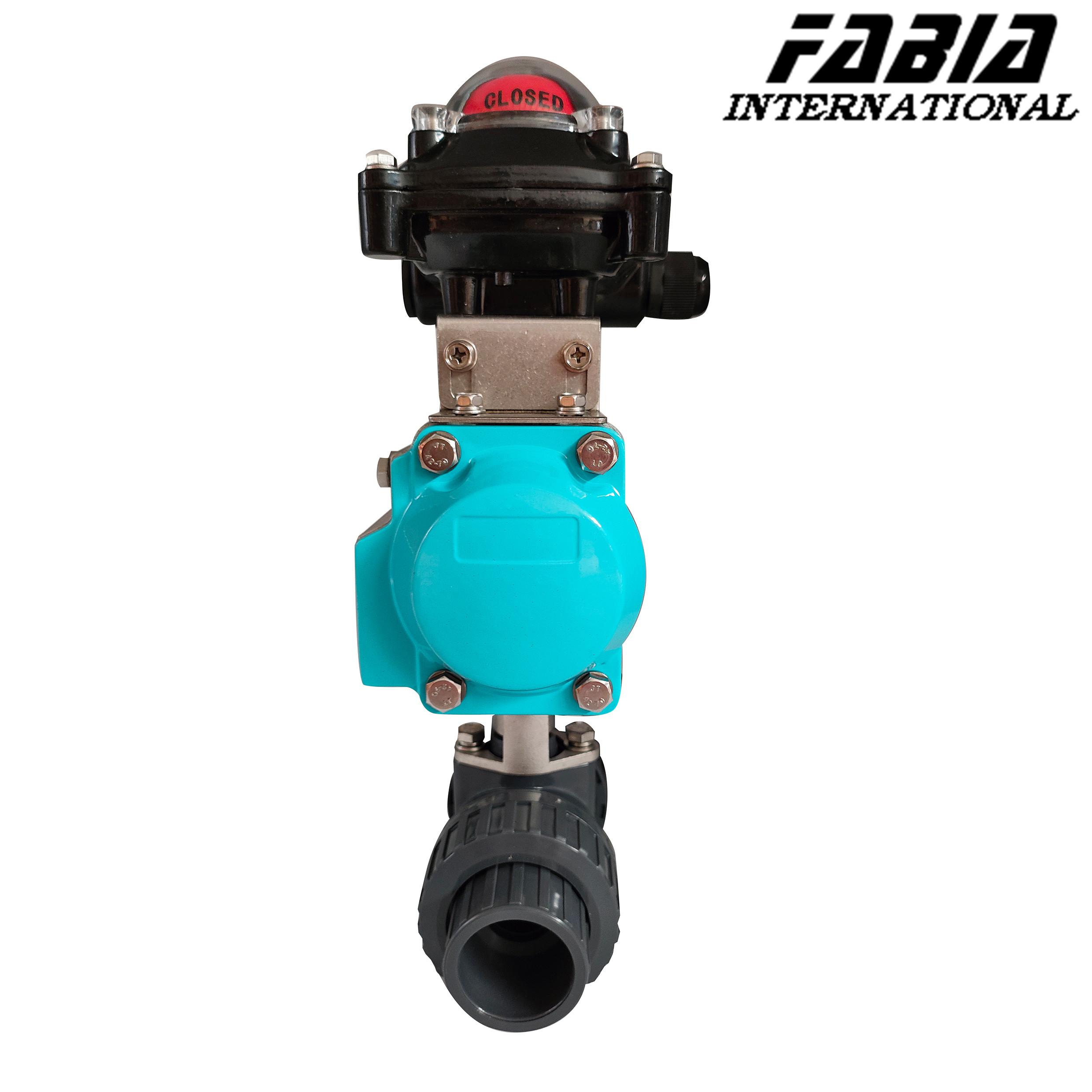

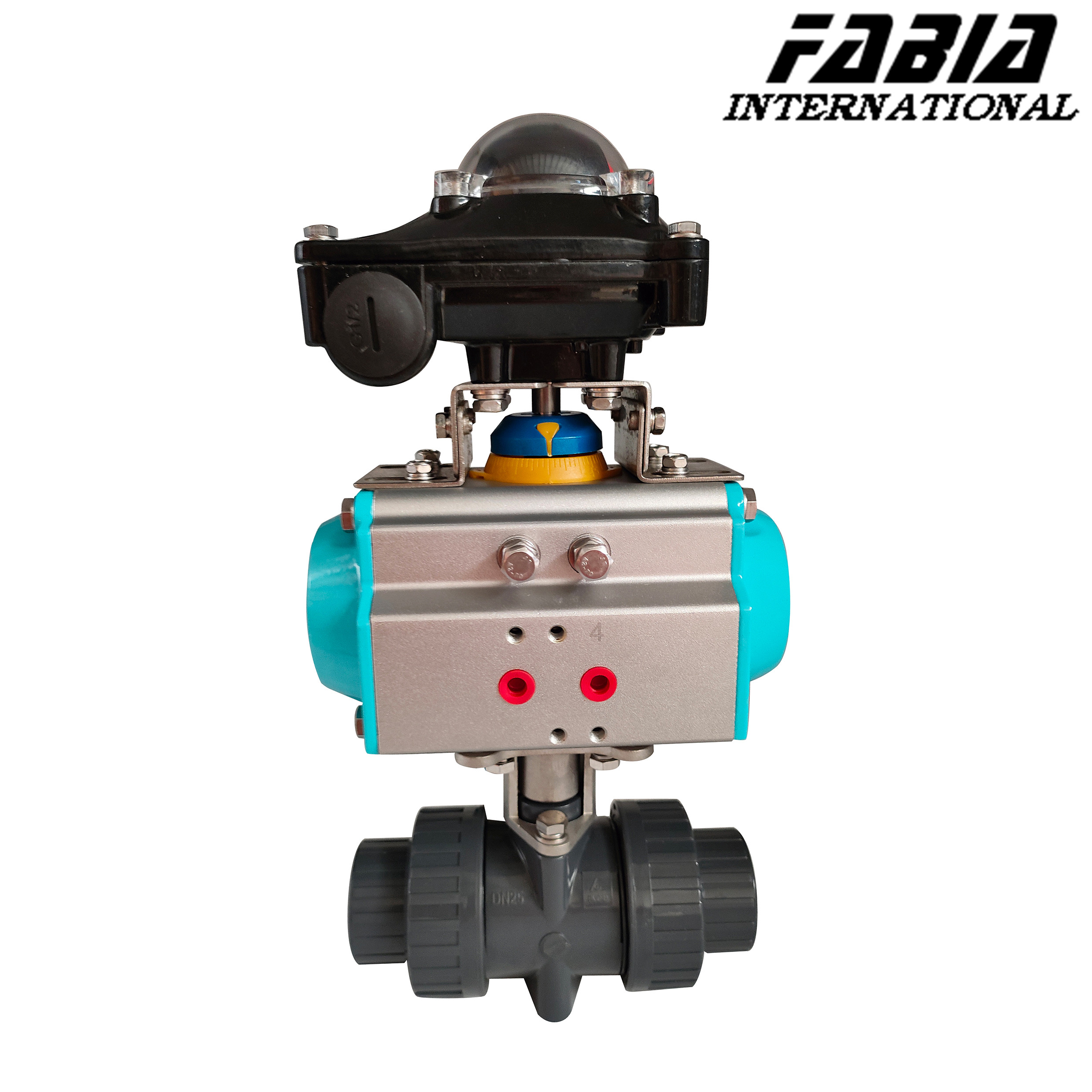

FABIA Pvc Pneumatic Operated Ball Valve Soft Seated Valves
1. Description:
Because the valve has scrubbing property during opening and closing, it can be suitable for media with floating solid particles.
Soft seal ball valve, as an important member of the valve field, has a wide range of applications, is widely used in petroleum, chemical, natural gas, thermal power, metallurgy, paper and other fields.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pvc Pneumatic Operated Ball Valve Soft Seated Valves | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, and the valve of the full diameter has basically no flow resistance.
- Simple structure, small size, light weight. Close and reliable.
- It has two sealing surfaces, but the sealing surface material of the valve uses various plastics, which has good sealing performance and can achieve complete sealing.
- Long been used in vacuum systems.
- Convenient operation, fast opening and closing, from full run to full close as long as the rotation of 90°, in order to remote control.
- Easy to repair, simple valve structure, sealing ring is usually active, disassembly and replacement are more convenient.
- When fully open or fully closed, the sealing surface of the cube and nozzle is isolated from the medium, and the medium will not cause erosion of the sealing surface of the ball valve when it passes through.
- Wide range of application, Shanxi soft seal valve type, Sichuan soft seal valve type, Sichuan soft seal valve type, pipe diameter from a few millimeters, large to a few meters ball valve type, from high vacuum to high pressure can be applied.
