Gold top valve located in Oubei Town, Wenzhou, China,where can make all kinds of precision balls,including top entry,metal seat and V type balls.On this base,our products range of floating,trunnion,Gate globe check valve ,butterfly valve ,etc.Surely we can design them by customer's special requirements.
 |
| Place of Origin: | 中国 |
| Brand Name: | GOLD TOP |
| Certification: | API600 |
| Model Number: | Z41H |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | WOODEN BOX |
| Supply Ability: | 100+PCS+15DAYS |
| SIZE: | 2”～60”(50mm～1500mm) | MATERIAL: | A216 WCB、WCC; A217 WC6、WC9、C5、C12、C12A、CA15; A351 CF8、CF8M、CF3、CF3M、CF8C、CN3MN、CK3MCUN、CN7M; A352 LCB、LCC; A494 CW-6MC、CU5MCuC、M35-1; A890 4A(CD3MN)、5A(CE3MN)、6A(CD3MWCuN); ASME B 148 C95800、C95500, Etc. |
|---|---|---|---|
| Design Standard: | API 600、ASME B16.34、GB 12234、GB 12224 | Structural Length: | ASME B16.10 |
| TEST: | API 598、ISO 5208、JB/T9092、GB/T13927 | Connecting End: | ASME B16.5、ASME B16.25、GB 9113、GB 12224 |
| CONNECT: | RF RTJ FLANGE | ||
| High Light: | flanged gate valve,high pressure gate valve |
||

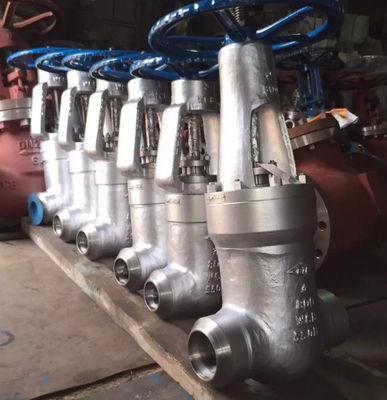

API GATE VALVE 316 316L 304 304L STAINLESS STEEL MATERIAL FOR 300LB 600LB 900LB
Our Cast Steel Flanged Gate Valve is suitable to fit between PN6, PN10/16 or ANSI 150 flanges (subject to configuration) and designed for industrial applications; boiler plants and rugged environments where a more durable valve is required. A handwheel operated manual gate valve with Cast Steel body, bolted bonnet and non rising stem.
Cast Steel gate valves are used as efficient shut-off valves with flow in either direction for water, saturated steam, air, gas and oil.
A maintenance free valve designed to API 600!
Covers the following IDs: 100500, 100501, 100502, 100503, 100504, 100505, 100506, 100507, 100508, 100509, 100510, 100511, 100512, 100513, 100514, 100515, 100516, 100517, 100518.
| DN Size (inches) | LRF – LBW (th) | LRTJ (th) | H (open) (th) | Weight (kg) |
|---|---|---|---|---|
| 2 | 368 | 371 | 650 | 88 |
| 2-1/2 | 419 | 422 | 705 | 119 |
| 3 | 381 | 384 | 695 | 140 |
| 4 | 457 | 460 | 825 | 179 |
| 6 | 610 | 613 | 1065 | 354 |
| 8 | 737 | 740 | 1320 | 577 |
| 10 | 838 | 841 | 1540 | 815 |
| 12 | 965 | 968 | 1840 | 1425 |
| 14 | 1029 | 1038 | 2135 | 1985 |
| 16 | 1130 | 1140 | 2380 | 2860 |
| 18 | 1219 | 1232 | 2580 | 3665 |
| 20 | 1321 | 1334 | 2780 | 4710 |
| 24 | 1549 | 1568 | 3130 | 7150 |
