Gold top valve located in Oubei Town, Wenzhou, China,where can make all kinds of precision balls,including top entry,metal seat and V type balls.On this base,our products range of floating,trunnion,Gate globe check valve ,butterfly valve ,etc.Surely we can design them by customer's special requirements.
 |
| Place of Origin: | 中国 |
| Brand Name: | GOLD TOP |
| Certification: | API600 |
| Model Number: | Z41H |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | WOODEN BOX |
| Supply Ability: | 100+PCS+15DAYS |
| SIZE: | 2”～60”(50mm～1500mm) | MATERIAL: | A216 WCB、WCC; A217 WC6、WC9、C5、C12、C12A、CA15; A351 CF8、CF8M、CF3、CF3M、CF8C、CN3MN、CK3MCUN、CN7M; A352 LCB、LCC; A494 CW-6MC、CU5MCuC、M35-1; A890 4A(CD3MN)、5A(CE3MN)、6A(CD3MWCuN); ASME B 148 C95800、C95500, Etc. |
|---|---|---|---|
| Design Standard: | API 600、ASME B16.34、GB 12234、GB 12224 | Structural Length: | ASME B16.10 |
| TEST: | API 598、ISO 5208、JB/T9092、GB/T13927 | Connecting End: | ASME B16.5、ASME B16.25、GB 9113、GB 12224 |
| CONNECT: | RF RTJ FLANGE | ||
| High Light: | flanged gate valve,high pressure gate valve |
||

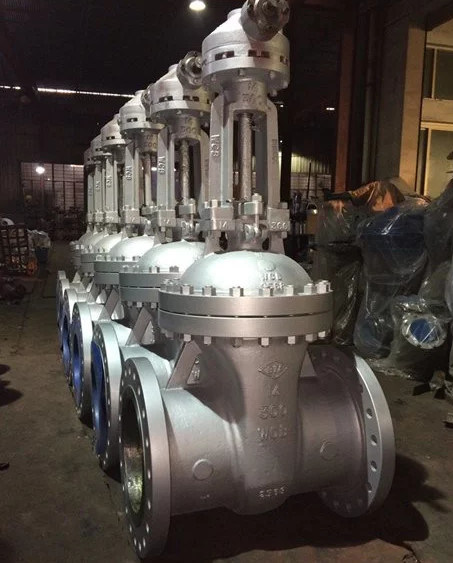

ANSI GATE VALVE ASME B 16.5 RF FLANGE WCB WC6 WC9 MATERIAL ASME B 16.10
Main features:
MAIN FEATURES:
A certain angle is formed between the two sealing faces of the single-disc or double-discs wedge gate valve and perpendicular to the pipeline axis. It is mainly used for switching on or off the medium within pipelines, that is, it is used in a full open or close manner.
The gate valve is widely applicable for oil industry, chemical industry, and power station.
Design Features
Design standard: API 600,GB/T 12234.
Small flow resistance for fluid.
Only a small force is required for opening/closing.
No limitation on the flowing direction of the medium .
During opening and closing process, the friction between the disc wedge and the seat is small, so the sealing is reliable ensuring tightness and long service life.
The valve is designed in a back-seat structure.
The valve stem sealing is realized by the collaboration of flexible and woven graphite. ensuring a more reliable tightness.
Optional pressure seal bonnet type.
Optional solid-wedge type.
Optional non-rising stem structures.
Optional jacket structure.
Product Range
Body material: carbon steel, stainless steel, alloy steel
Nominal diameter:1/2"～60"(DN15~1500)
Pressure range: Class150～2500(PN10~PN420)
End connection: RF, RTJ, BW
Working temperature:-29℃～+560℃
Mode of operation: Hand wheel, gear box, Electric , Pneumatic , etc.
| DN | L mm. | H mm. | D mm. | Weight kg. |
|---|---|---|---|---|
| 2" | 178 | 320 | 152 | 23 |
| 3" | 203 | 400 | 190 | 39 |
| 4" | 229 | 470 | 228 | 53 |
| 6" | 267 | 650 | 279 | 84 |
| 8" | 292 | 800 | 342 | 144 |
| 10" | 330 | 1070 | 406 | 219 |
| 12" | 356 | 1200 | 482 | 317 |
| 14" | 381 | 1320 | 533 | 403 |
| 16" | 407 | 1450 | 596 | 457 |
| 18" | 432 | 1300 | 635 | 668 |
| 20" | 457 | 1780 | 698 | 894 |
| 24" | 508 | 2200 | 813 | 1150 |
