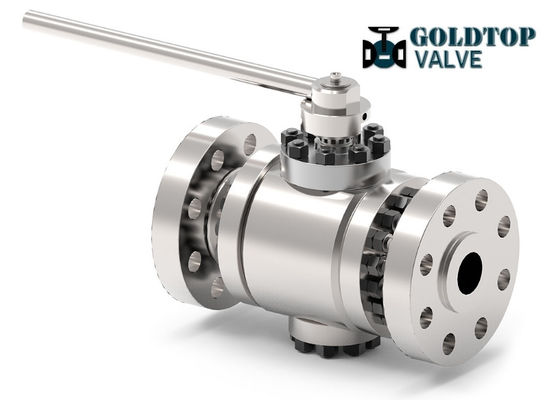

Trunnion Mounted Full Bore Ball Valve THR End API598 For Water

Soft Seated Ball Valve Trunnion Mounted Design Standards

Beyond Standards:

• Trunnion-mounted Ball Valve design complies to API 6D
• Valves offered with API 6D monogram
• Wide portfolio of Side-entry and Top-entry designs
• Fugitive emissions - Soft and Metal seated valves complies to ISO 15848-1, Class AH and BH
• Stem seal configurations tested to API 622 at Yarmouth Research labs, Maine, USA
• Firesafe design - Tested to API 607 and API 6FA
• CE Marking - Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H
• PED Module B1 Design examination certificate (certified by DNV) available
• Atex - Meets requirements of Atex Directive 94/9/EC (ATEX), category 2 non-electrical equipment
• SIL3 - Safety Integrity Level SIL 3 certification to IEC 61508, certified by Exida/ TUV
• Valves successfully tested to Shell Design Evaluation Test, Procedure 77/300 for temperature -29 to 150 degree C (O rings) and -50 to 150 degree C (Lip seals)
• Pneumatic shell test conducted at 1.1 times rated pressure to check shell integrity, when required

Features that Add Value:

• Double block and bleed (DBB) feature - Valves are designed and tested for automatic cavity relief
• Anti-blowout stem design
• Coil springs used for consistent seat loading and lower operating torque
• Lip seals provided for low temperature services
• 2/3 stage Stem and 2 stage Body Joint sealing system; Primary O ring and Secondary graphite (in 3 stage stem, thrust washer is primary)
• Where tight shut off is required, Double piston effect (DPE) seats provided for redundancy in sealing

Versatile Solutions:

• Wide portfolio of Side-entry and Top-entry designs
• Options: Buried service, Cryogenic
• Offered with Electric, Pneumatic and Hydraulic Actuators
• In-house Tests Capabilities - Cryogenic Test, Pipe Bending Test, Vacuum Test and Fast Closure Test
• ValvTrac™ RFID tagging offered for reliable digital traceability

• Manufacturer of pipeline ball valves for a wide range of applications. With a global reputation for high quality, reliability and safety, the Cort C-B5 trunnion mounted pipeline ball valve is available in sizes from 150mm – 1200mm (6” to 48”) and pressure ratings from class 150 to 2500.

  The Cort C-B5 Ball Valve uses a three piece, bolted body design manufactured from ring rolled forgings. The cast or forged ball features integral, external trunnions which turn in bearings mounted in bearing retainer blocks. These bearing retainers are precision located between the valve closures which are then able to resist the pressure loading on the ball.

  Size Range

  DN150 – DN1400 / 6” – 56” Bore

  Pressure Rating

  ANSI 150 up to 2500

  Materials

  Carbon Steel, Stainless Steel & Ferralium®

  Applications

  Flowlines, manifolds, pipeline transmission and distribution, pressure regulation and metering runs, underground storage, waterflood and general pipeline service in onshore, offshore and subsea locations. Our C-B5 ball valves can also be used as sphere launchers or receivers when fitted with a sphere-lock ball.

  Standard Features



• Approved to API 6D.
• Trunnion Mounted (Low operating torque).
• Bubble-tight sealing from zero to full rated pressure.
• Metal-to-metal primary seal – protected ‘O’ ring secondary seal.
• Self-cleaning ball.
• Piggable.
